Toyota BZ4X (JPP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202412

ANGLE 0

main85381-30230×2i202412

ANGLE -2

main85381-30240×2i202203-202311

ANGLE +2

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-33070i202412

85319AHOSE, INLET

main85301-42060i202203-202411

main85301-42070supersedes 85301-42050i202412

HEADLAMP CLEANER-WITH

85330JAR ASSY, WINDSHIELD WASHER

main85315-42530i202311-202411

main85315-42560i202203-202411

main85355-42210i202203-202209

HEADLAMP CLEANER-WITH

main85355-42211i202412

HEADLAMP CLEANER-WITH

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202412

HEADLAMP CLEANER-WITH

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i202203-202411

HEADLAMP CLEANER-WITH

85336DPACKING, WINDSHIELD WASHER JAR

main85319-33230i202203-202411

HEADLAMP CLEANER-WITH

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i202412

HEADLAMP CLEANER-WITH

85336FPACKING, WINDSHIELD WASHER JAR

main85336-30160i202412

HEADLAMP CLEANER-WITH

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i202412

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i202412

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i202412

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202412

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i202412

HEADLAMP CLEANER-WITH

85371ZCLAMP, WASHER HOSE

main82711-3A540×2supersedes 85371-48050i202412

WINDSHIELD DEICER(W/HEADLAMP CLEANER); WIPER DEICER; WIPER DEICER(W/HEADLAMP CLEANER)

main85371-48050×2i202203-202411

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i202412

L=1450(*H,L=900); L=1450(*H,L=900),WINDSHIELD DEICER(W/HEADLAMP CLEANER); L=1450(*H,L=900),WIPER DEICER; L=1450(*H,L=900),WIPER DEICER(W/HEADLAMP CLEANER)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i202412

L=1450(*H,L=580); L=1450(*H,L=580),WINDSHIELD DEICER(W/HEADLAMP CLEANER); L=1450(*H,L=580),WIPER DEICER; L=1450(*H,L=580),WIPER DEICER(W/HEADLAMP CLEANER)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i202203-202411

L=1450(*H,L=490); L=1450(*H,L=490),WINDSHIELD DEICER(W/HEADLAMP CLEANER); L=1450(*H,L=490),WIPER DEICER; L=1450(*H,L=490),WIPER DEICER(W/HEADLAMP CLEANER)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i202203-202411

L=1450(*H,L=470); L=1450(*H,L=470),WINDSHIELD DEICER(W/HEADLAMP CLEANER); L=1450(*H,L=470),WIPER DEICER; L=1450(*H,L=470),WIPER DEICER(W/HEADLAMP CLEANER)

85387BCLAMP, WASHER, NO.3

main90469-07011×2i202203-202311

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-3A540supersedes 85371-12040i202412

WINDSHIELD DEICER(W/HEADLAMP CLEANER); WIPER DEICER; WIPER DEICER(W/HEADLAMP CLEANER)

main85371-12040×2i202412

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i202203-202411

HEADLAMP CLEANER-WITH

8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24760

8271135730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35730

9011906767

main90119-06767

9046707215

main90467-07215

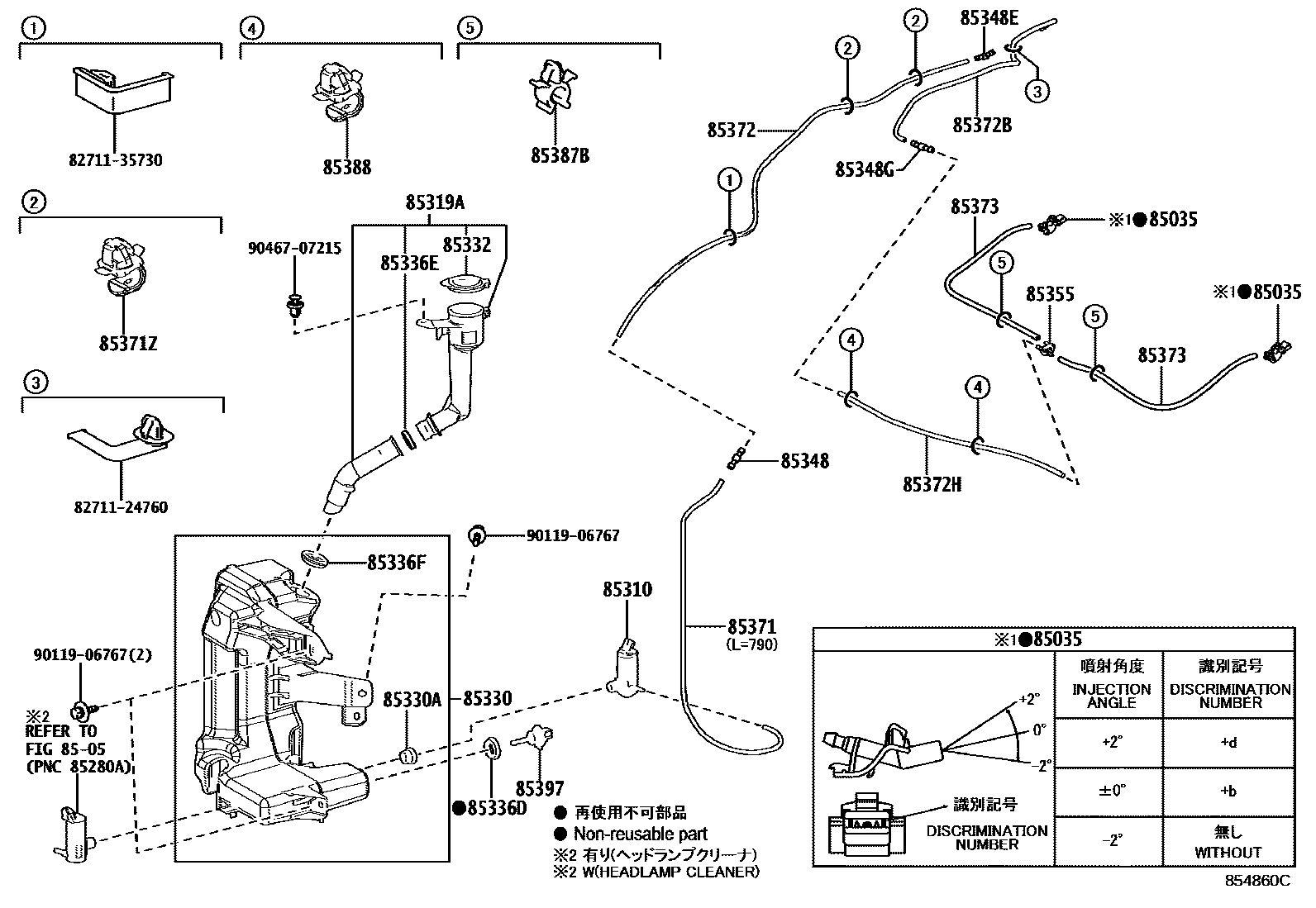

27 parts on this diagram · 4 diagrams in section

WINDSHIELD WASHER for Toyota BZ4X (JPP)

This section contains 30 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota BZ4X (JPP). Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET, JAR ASSY, WINDSHIELD WASHER.
