Toyota BZ4X (JPP) — METER

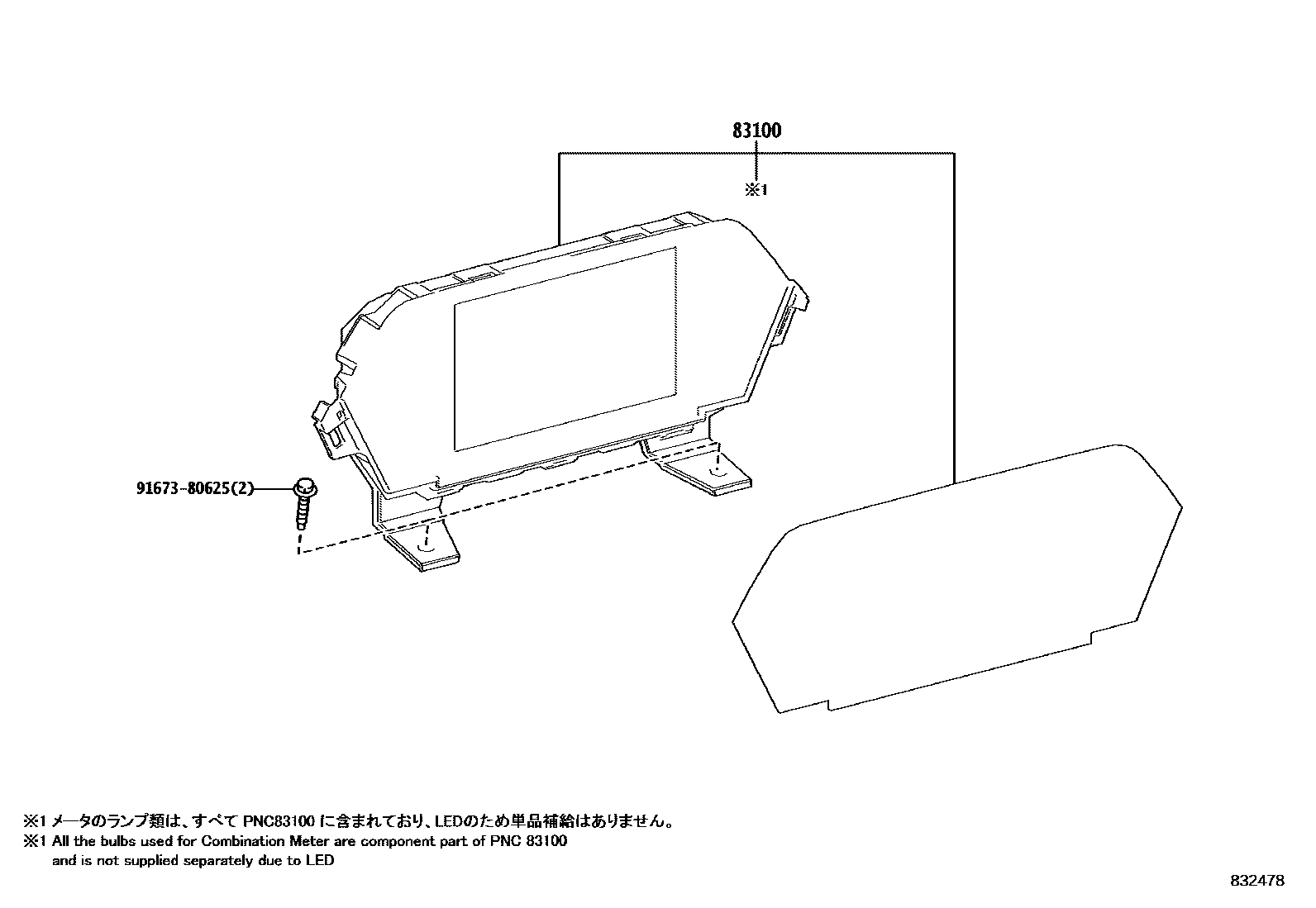

Parts diagram
83100METER ASSY, COMBINATION
main83800-42V60i202203-202301
DENSO,*614
main83800-42V61i202302-202304
DENSO,*614
main83800-42V62i202304-202308
DENSO
main83800-42V63i202308-202311
DENSO
main83800-42V90i202203-202301
DENSO,*614
main83800-42V91i202302-202304
DENSO,*614
main83800-42V92i202304-202308
DENSO
main83800-42V93i202308-202311
DENSO
main83800-4AA60i202311-202411
DENSO,*614
main83800-4AA80i202311-202411
DENSO,*614; DENSO,HONG KONG SPEC,*614
main83800-4AP90i202412
DENSO,*614
main83800-4AQ00i202412
DENSO,*614; DENSO,HONG KONG SPEC,*614
9167380625
main91673-80625

2 parts on this diagram · 1 diagram in section

METER for Toyota BZ4X (JPP)

This section contains 2 genuine Toyota parts for the METER system of the Toyota BZ4X (JPP). Key components include: METER ASSY, COMBINATION.
