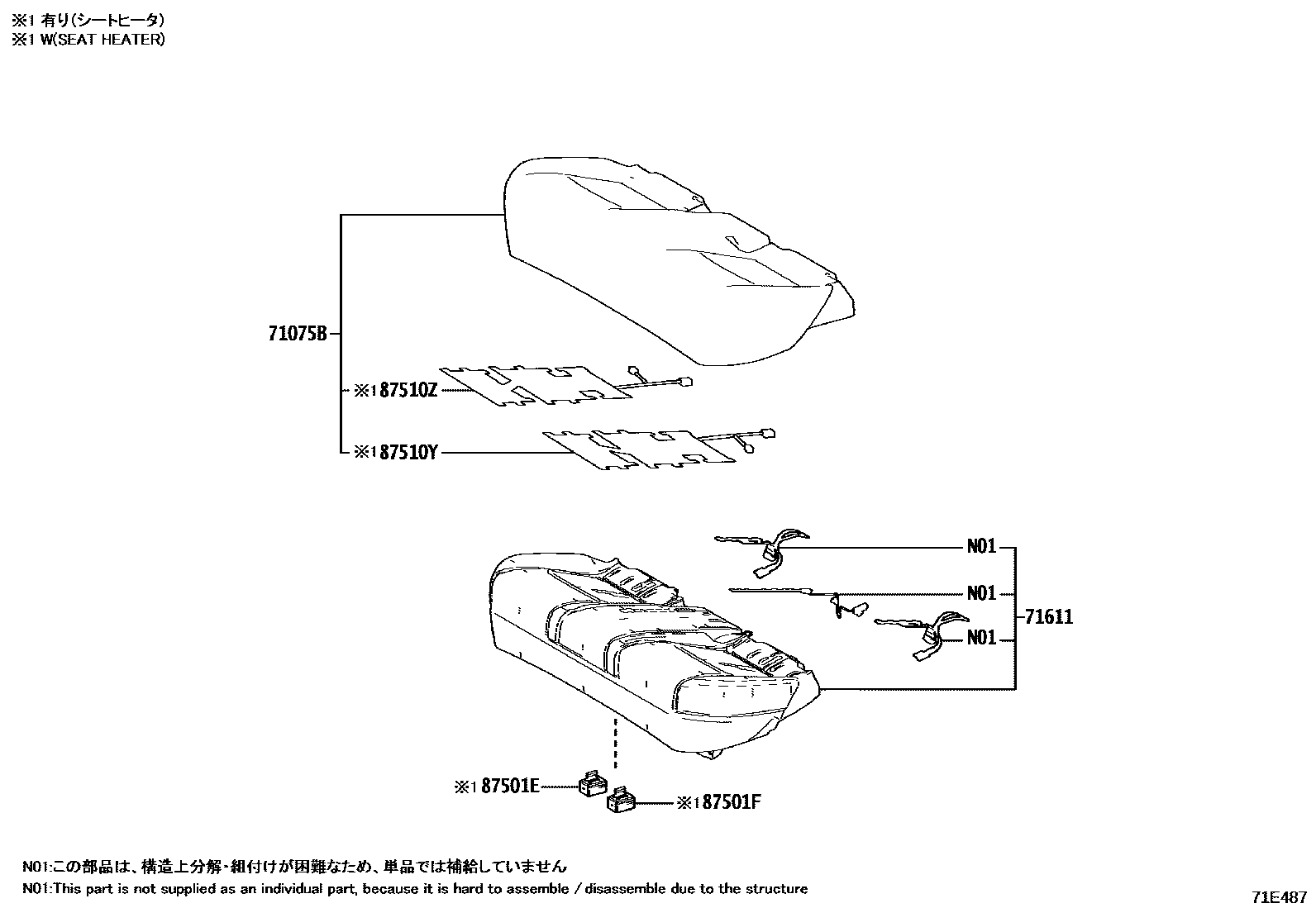

Toyota BZ4X (JPP) — REAR SEAT & SEAT TRACK

0001 1SEAT CUSHION 0002 1SEAT BACK 0003 1SEAT FITTING PARTS

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-42E40-C2iXEAM10,YEAM15..M202203-202411

BLACK,TRIM2#

main71075-42E60-C2iXEAM10,YEAM15..P..(ARL,EUR)202203-202411

BLACK,TRIM2#

main71075-42E90-B3iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

LT.GRAY,TRIM1#

main71075-42E90-C2iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

71611PAD, REAR SEAT CUSHION

main71503-42100iXEAM10,YEAM15202203-202411

87501ECONTROL SUB-ASSY, SEAT HEATER, RH

87501FCONTROL SUB-ASSY, SEAT HEATER, LH

87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH

87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH

6 parts on this diagram · 3 diagrams in section
