Toyota BZ4X (JPP) — MIRROR

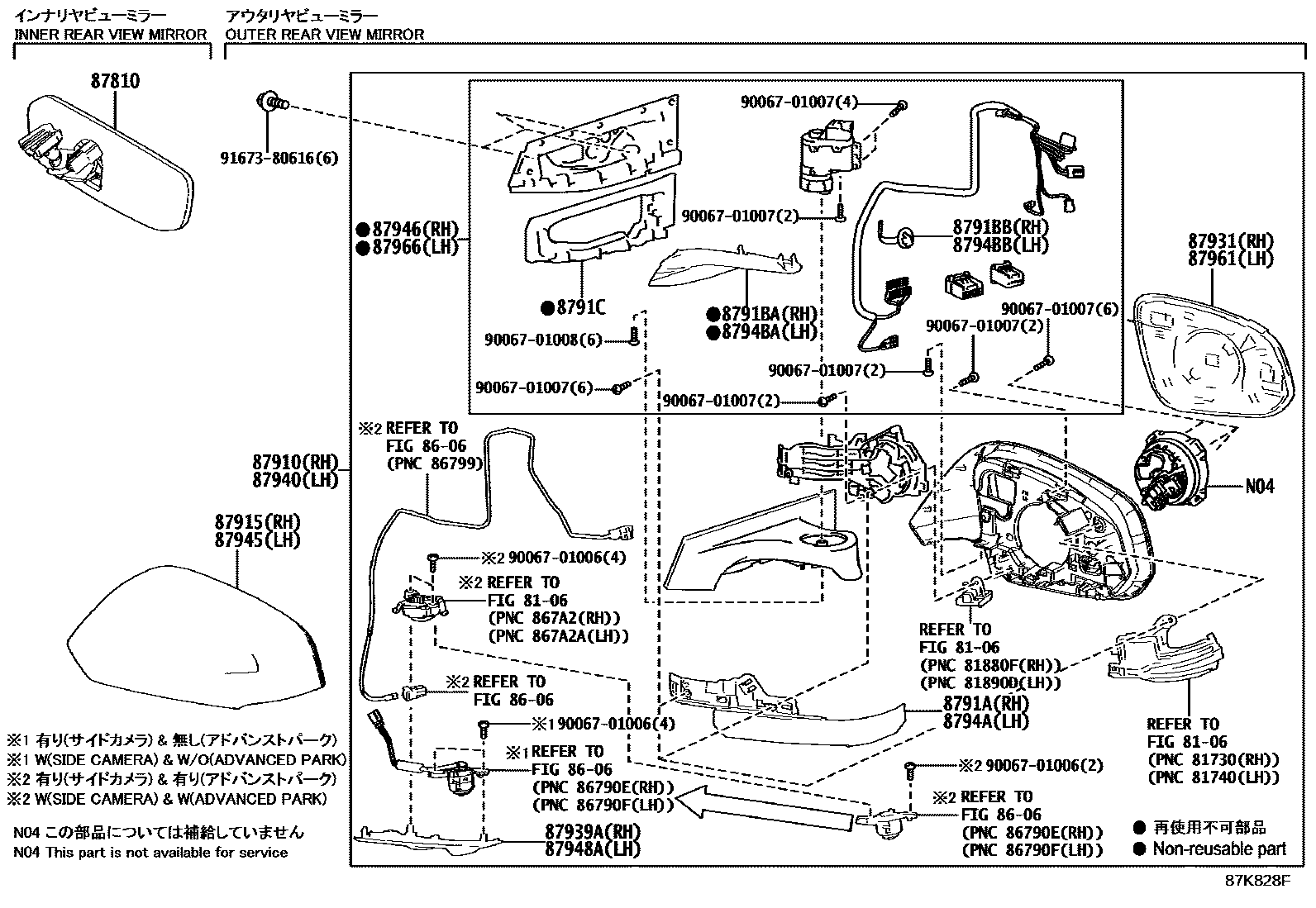

Parts diagram
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
main87810-0WS30i202203-202306
main87840-0W460i202306-202411
main87840-0W620i202209-202306
BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)
main87840-0W620i202304-202306
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-42J30i202203-202411
NO PAINT REQ.
main87910-42J40i202203-202411
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)
main87910-42J40i202203-202411
NO PAINT REQ.
main87910-42J60i202203-202310
NO PAINT REQ.
main87910-42J61i202311-202411
NO PAINT REQ.
main87910-42J70i202203-202411
NO PAINT REQ.
main87910-42K10i202203-202310
NO PAINT REQ.
main87910-42K11i202311-202411
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
main87915-42230-C0i202203-202411
BLACK,089 ,1J6 ,1L5 ,202 ,2MR ,2MT ,2TB ,2VP ,2WC ,3U5 ,8S6
8791ACOVER, OUTER MIRROR, RH NO.2
main8791A-42G90i202203-202411
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)& WITHOUT(ADVANCED PARK)
main8791A-42J70i202203-202411
8791BACOVER, OUTER MIRROR, RH NO.3
main8791B-42J30i202203-202411
main8791B-42J70i202203-202411
8791BBSTAY, OUTER MIRROR, RH
main8791B-K0310i202203-202411
8791CSEAL, OUTER MIRROR
main8791C-42J70i202203-202411
RH
main8794C-42J60i202203-202411
LH
87931OUTER MIRROR, RH
main87931-42G90i202203-202411
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)& WITHOUT(ADVANCED PARK)
main87931-42J70i202203-202411
87939ACOVER, OUTER MIRROR HOLE, RH
main87939-42G90i202203-202411
main87939-42J80i202203-202411
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)& WITHOUT(ADVANCED PARK)
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-42J20i202203-202411
NO PAINT REQ.
main87940-42J30i202203-202411
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM) & WITHOUT(ADVANCED PARK)
main87940-42J30i202203-202411
NO PAINT REQ.
main87940-42J50i202203-202310
NO PAINT REQ.
main87940-42J51i202311-202411
NO PAINT REQ.
main87940-42J60i202203-202411
NO PAINT REQ.
main87940-42K00i202203-202310
NO PAINT REQ.
main87940-42K01i202311-202411
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
main87945-42230-C0i202203-202411
BLACK,089 ,1J6 ,1L5 ,202 ,2MR ,2MT ,2TB ,2VP ,2WC ,3U5 ,8S6
87946RETRACTOR, OUTER MIRROR, RH
main87946-42J30i202203-202411
main87946-42J40i202203-202411
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)& WITHOUT(ADVANCED PARK)
main87946-42J60i202203-202411
main87946-42J70i202203-202411
main87946-42K10i202203-202411
87948ACOVER, OUTER MIRROR HOLE, LH
main87948-42G80i202203-202411
main87948-42J70i202203-202411
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)& WITHOUT(ADVANCED PARK)
8794ACOVER, OUTER MIRROR, LH NO.2
main8794A-42G80i202203-202411
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)& WITHOUT(ADVANCED PARK)
main8794A-42J60i202203-202411
8794BACOVER, OUTER MIRROR, LH NO.3
main8794B-42J20i202203-202411
main8794B-42J60i202203-202411
8794BBSTAY, OUTER MIRROR, LH
main8791B-K0310i202203-202411
87961MIRROR OUTER, LH
main87961-42G80i202203-202411
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)& WITHOUT(ADVANCED PARK)
main87961-42J60i202203-202411
87966RETRACTOR, OUTER MIRROR, LH
main87966-42J20i202203-202411
main87966-42J30i202203-202411
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM)& WITHOUT(ADVANCED PARK)
main87966-42J50i202203-202411
main87966-42J60i202203-202411
main87966-42K00i202203-202411
9006701006
main90067-01006
9006701007
main90067-01007
9006701008
main90067-01008
9167380616
main91673-80616

24 parts on this diagram · 1 diagram in section
