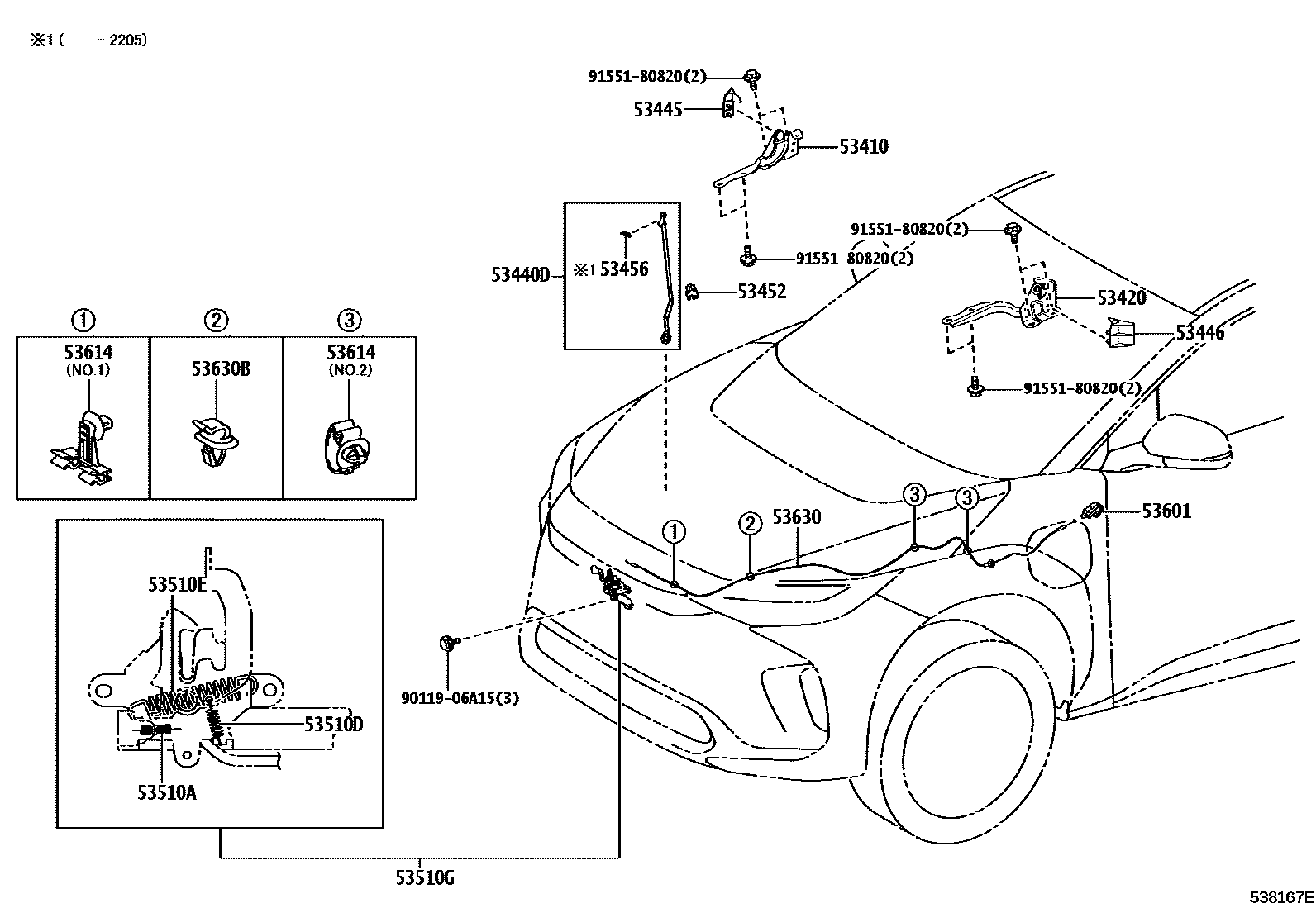

Toyota BZ4X (JPP) — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-42170iXEAM10,YEAM15202203-202411

53420HINGE ASSY, HOOD, LH

main53420-42170iXEAM10,YEAM15202203-202411

53440DSUPPORT ASSY, HOOD

main53440-42080iXEAM10,YEAM15202203-202311

main53440-42081iXEAM10,YEAM15202311-202404

main53440-42082iXEAM10,YEAM15202405-202411

53445COVER, HOOD HINGE, RH

main53445-42010iXEAM10,YEAM15202203-202411

53446COVER, HOOD HINGE, LH

main53446-42010iXEAM10,YEAM15202203-202411

53452HOLDER, HOOD STAY

main53452-12130iXEAM10,YEAM15202203-202411

53456STOPPER, HOOD SUPPORT

main53456-52010iXEAM10,YEAM15202203-202205

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iXEAM10,YEAM15202203-202411

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iXEAM10,YEAM15202203-202411

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iXEAM10,YEAM15202203-202411

WD=1.6,CW=12

53510GLOCK ASSY, HOOD, W/COURTESY LAMP SWITCH

main53510-42170iXEAM10,YEAM15..LHD202203-202411

main53510-42180iXEAM10,YEAM15..RHD202203-202411

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202409

BLACK,TRIM1#,2#

main53601-30100-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202409

BLACK,TRIM2#

main53601-62010-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202409-202411

BLACK,TRIM2#

main53601-62010-C0iXEAM10,YEAM15..(M,P)..(ARL,EUR)202409-202411

BLACK,TRIM1#,2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-10030iXEAM10,YEAM15202203-202411

NO.1:REFER ILLUST.

main82711-16790iXEAM10,YEAM15202203-202411

NO.2:REFER ILLUST.

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-42150iXEAM10,YEAM15202203-202411

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iXEAM10,YEAM15202203-202411

9011906A15

main90119-06A15

9155180820

main91551-80820

17 parts on this diagram · 2 diagrams in section
