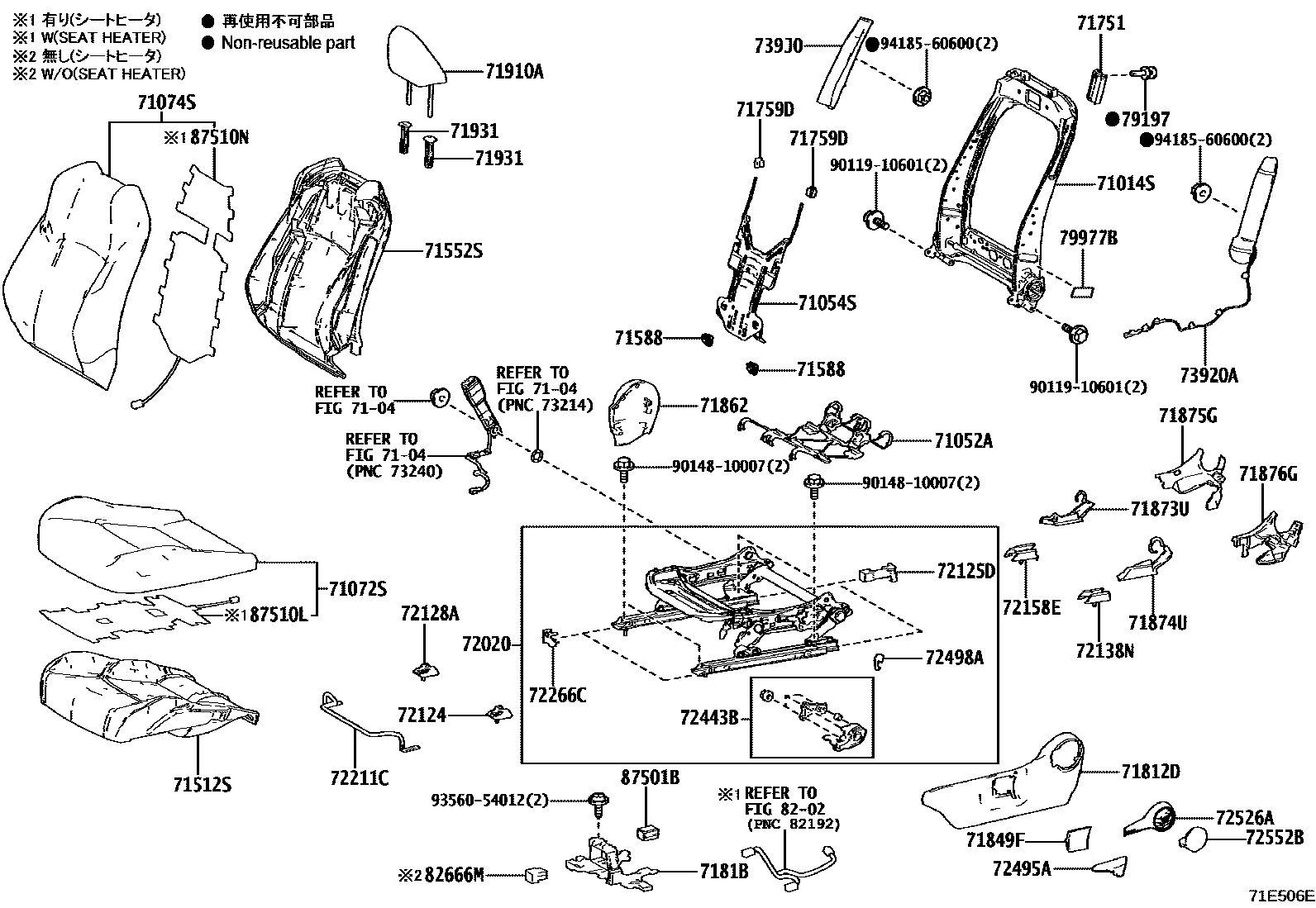

Toyota BZ4X (JPP) — FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE (MANUAL) 0002 1DRIVER SIDE (POWER) 0003 1PASSENGER SIDE 0004 1DRIVER SIDE (MANUAL) 0005 1DRIVER SIDE (POWER) 0006 1PASSENGER SIDE

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-30D20iXEAM10,YEAM15..LHD..P202203-202311

main71014-42280iXEAM10,YEAM15..RHD;XEAM10,YEAM15..LHD..M202203-202411

main71014-42350iXEAM10,YEAM15..LHD..P202311-202411

main71014-42360iXEAM10,YEAM15..LHD..H202311-202411

main71014-46050iXEAM10,YEAM15..LHD..H202203-202311

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-47090iXEAM10,YEAM15202203-202411

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-47050iXEAM10,YEAM15..LHD..M;XEAM10,YEAM15..RHD..(M,P)202203-202411

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-42E50-C0iXEAM10,YEAM15..M202203-202411

BLACK,TRIM2#

main71072-42E70-C0iXEAM10,YEAM15..RHD..P202203-202411

BLACK,TRIM2#

main71072-42E80-C0iXEAM10,YEAM15..LHD..P..EUR202203-202411

BLACK,TRIM2#

main71072-42F10-B0iXEAM10,YEAM15..RHD..H202203-202411

LT.GRAY,TRIM1#

main71072-42F10-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM2#

main71072-42F20-B0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

LT.GRAY,TRIM1#

main71072-42F20-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-42D80-C0iXEAM10..RHD..M202203-202411

BLACK,TRIM2#

main71074-42E00-C0iXEAM10,YEAM15..LHD..M202203-202411

BLACK,TRIM2#

main71074-42F20-C0iXEAM10,YEAM15..RHD..P202203-202411

BLACK,TRIM2#

main71074-42F30-C0iXEAM10,YEAM15..LHD..P..EUR202203-202411

BLACK,TRIM2#

main71074-42F50-B1iXEAM10..TAIW;XEAM10,YEAM15..RHD..H202203-202411

LT.GRAY,TRIM1#

main71074-42F50-C0iXEAM10..TAIW;XEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM2#

main71074-42F70-B0iXEAM10,YEAM15..LHD..H202203-202411

LT.GRAY,TRIM1#

main71074-42F70-C0iXEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-12190iXEAM10,YEAM15..RHD..(M,P)202203-202411

main71502-42100iXEAM10,YEAM15..RHD..H202203-202411

main71512-12470iXEAM10,YEAM15..LHD..M202203-202411

main71512-12530iXEAM10,YEAM15..LHD..P202203-202411

main71512-42280iXEAM10,YEAM15..LHD..H202203-202411

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-42270iXEAM10,YEAM15..LHD..(M,P)..EUR202203-202411

main71552-42280iXEAM10,YEAM15..LHD..H202203-202411

main71552-48260iXEAM10..TAIW;XEAM10,YEAM15..RHD..(M,P)202203-202411

main71552-48270iXEAM10,YEAM15..RHD..H202203-202411

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71587-47010iXEAM10,YEAM15202203-202411

71751HANGER, SEAT COVER

main71751-47050iXEAM10,YEAM15..ARL,EUR202203-202411

71759DHOOK, FRONT SEATBACK, NO.2

main71759-50040iXEAM10,YEAM15202203-202411

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-33400-C0iXEAM10,YEAM15..LHD..P..EUR202203-202411

BLACK,TRIM2#

main71812-33400-C0iXEAM10..TAIW;XEAM10,YEAM15..LHD..H202203-202411

BLACK,TRIM1#,2#

main71812-47130-C1iXEAM10,YEAM15..LHD..M;XEAM10,YEAM15..RHD..(M,P)202203-202411

BLACK,TRIM2#

sub71812-47130

main71812-47130-C1iXEAM10,YEAM15..LHD..M;XEAM10,YEAM15..RHD..(M,P)202203-202411

BLACK,TRIM1#,2#

sub71812-47130

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-33010iXEAM10,YEAM15..LHD..(H,P)202203-202411

main7181B-47010iXEAM10,YEAM15..RHD;XEAM10,YEAM15..LHD..M202203-202411

71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

main71849-12020-C0iXEAM10,YEAM15..RHD..H202311-202411

BLACK,TRIM1#,2#

main71849-12020-C0iXEAM10,YEAM15..RHD..H202309-202411

BLACK,TRIM2#

main71849-47010-C1iXEAM10..RHD..P;YEAM15..RHD..(M,P)202203-202311

BLACK,TRIM2#

sub71849-47010

main71849-47010-C1iXEAM10..RHD..P;YEAM15..RHD..(M,P)202203-202311

BLACK,TRIM1#,2#

sub71849-47010

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-47090-C1iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

sub71862-47090

main71862-47090-C1iXEAM10,YEAM15..(M,P)..(ARL,EUR)202203-202411

BLACK,TRIM1#,2#

sub71862-47090

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iXEAM10,YEAM15202203-202411

71873USHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-42080iXEAM10,YEAM15202203-202411

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-K0010iXEAM10,YEAM15202203-202411

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47070iXEAM10,YEAM15202203-202411

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-42100-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

main71876-42100-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-30230-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

main71876-30230-C0iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

71910AHEADREST ASSY, FRONT SEAT

main71910-42590-C0iXEAM10,YEAM15..M202203-202411

BLACK,TRIM2#

main71910-42600-B3iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

LT.GRAY,TRIM1#

main71910-42600-C1iXEAM10,YEAM15..H,P202203-202411

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-B8iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

W(LOCK),LT.GRAY,TRIM1#

main71930-47050-C5iXEAM10,YEAM15202203-202411

W(LOCK),BLACK,TRIM2#

main71931-47030-B9iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

W/O(LOCK),LT.GRAY,TRIM1#

main71931-47030-C4iXEAM10,YEAM15202203-202411

W/O(LOCK),BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-42400iXEAM10,YEAM15..RHD;XEAM10,YEAM15..LHD..M202203-202411

main72020-42430iXEAM10,YEAM15..LHD..P202203-202311

main72020-42450iXEAM10,YEAM15..LHD..H202203-202311

main72020-42470iXEAM10,YEAM15..LHD..P202311-202411

main72020-42490iXEAM10,YEAM15..LHD..H202311-202411

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-10100iXEAM10,YEAM15202203-202411

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-47010iXEAM10,YEAM15..RHD;XEAM10,YEAM15..LHD..M202203-202411

main72125-47020iXEAM10,YEAM15..LHD..(H,P)202203-202411

sub72125-47010

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-10100iXEAM10,YEAM15202203-202411

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-47060iXEAM10,YEAM15202203-202411

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-10040iXEAM10,YEAM15202203-202411

72211HANDLE, SEAT TRACK ADJUSTING

main72211-47050iXEAM10,YEAM15..M;XEAM10,YEAM15..LHD..(H,P)202203-202411

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-47050iXEAM10,YEAM15..RHD;XEAM10,YEAM15..LHD..M202203-202411

72266CCOVER, SEAT TRACK UPPER RAIL, LH

main72265-47010iXEAM10,YEAM15..RHD;XEAM10,YEAM15..LHD..M202203-202411

main72265-47020iXEAM10,YEAM15..LHD..(H,P)202203-202411

72443BGEAR, VERTICAL ADJUSTER, LH

main72443-47021iXEAM10,YEAM15..RHD;XEAM10,YEAM15..LHD..M202203-202411

72495AHANDLE, FRONT SEAT VERTICAL ADJUSTER, LH

main72495-10010-C0iXEAM10..M;YEAM15..LHD..M202203-202311

BLACK,TRIM2#

sub72495-16010

main72495-10010-C0iXEAM10,YEAM15..RHD..H202203-202311

BLACK,TRIM1#,2#

sub72495-16010

main72495-16010-C0iXEAM10,YEAM15..RHD..H202311-202411

BLACK,TRIM1#,2#

main72495-16010-C0iXEAM10,YEAM15..RHD..H202309-202411

BLACK,TRIM2#

72498ACOVER, VERTICAL ADJUSTER BRACKET, LH

main72498-47020iXEAM10,YEAM15..RHD;XEAM10,YEAM15..LHD..M202203-202411

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-10060-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM1#,2#

main72526-10060-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM2#

72552BCOVER, RECLINING HINGE, LH

main72551-33010-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM1#,2#

main72551-33010-C0iXEAM10,YEAM15..RHD..H202203-202411

BLACK,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-42110iXEAM10,YEAM15202203-202411

739J0AIRBAG ASSY, FRONT SEAT CENTER, LH

main739J0-42010iXEAM10,YEAM15..LHD..M202203-202411

main739J0-42020iXEAM10,YEAM15..LHD..(H,P)..EUR202203-202411

79197HOOK, SEATBACK COVER

main79197-47010iXEAM10,YEAM15..ARL,EUR202203-202411

79977BFELT, SEATBACK FRAME

main79977-12090iXEAM10,YEAM15..H,P202203-202411

8202

82666MHOLDER, CONNECTOR

main90980-12373iXEAM10,YEAM15..M202203-202411

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-33010iYEAM15..H,P;XEAM10..(H,P)..(EUR,TAIW)202203-202411

SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-42270iXEAM10,YEAM15..H,P202203-202411

SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-42060iXEAM10,YEAM15..H,P202203-202411

SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)

9011910601

main90119-10601

9014810007

main90148-10007

9356054012

main93560-54012

9418560600

main94185-60600

50 parts on this diagram · 6 diagrams in section
