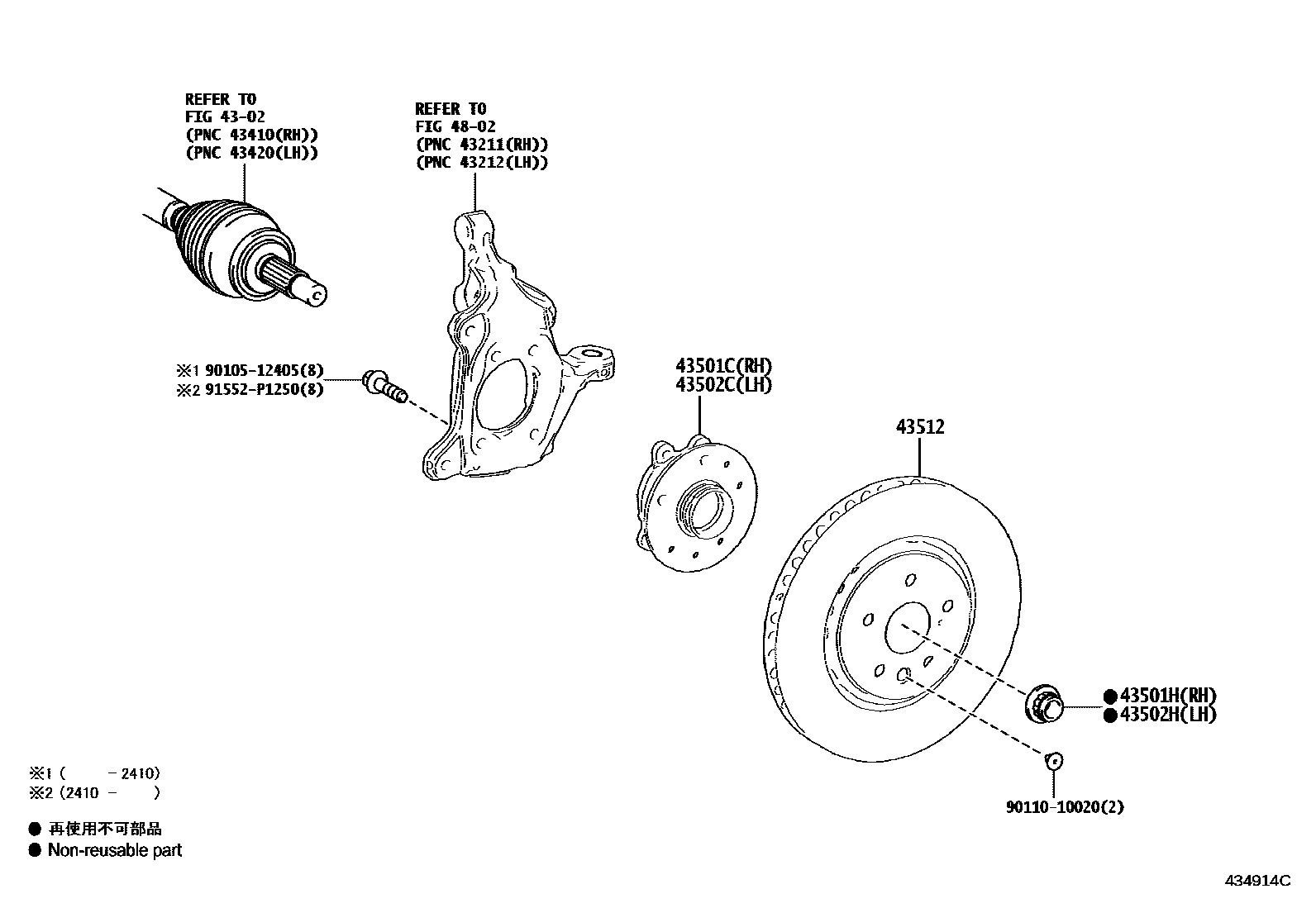

Toyota BZ4X (JPP) — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42050iXEAM10,YEAM15202203-202411

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-26001iXEAM10,YEAM15202203-202411

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42050iXEAM10,YEAM15202203-202411

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-26001iXEAM10,YEAM15202203-202411

43512DISC, FRONT

main43512-78020iXEAM10,YEAM15202203-202411

4802

9010512405

main90105-12405

9011010020

main90110-10020

91552P1250

main91552-P1250

10 parts on this diagram · 1 diagram in section
