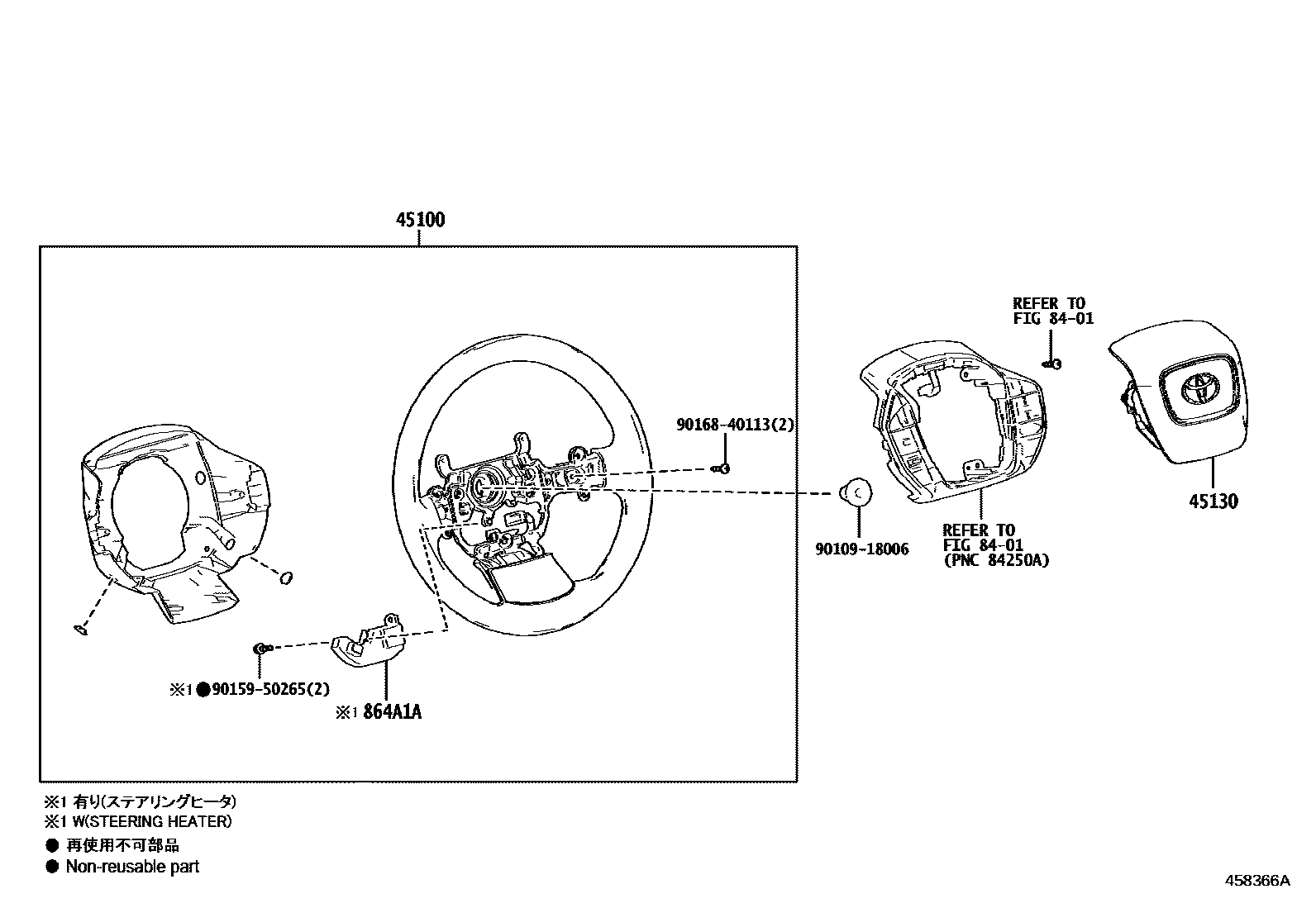

Toyota BZ4X (GTMC) — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0R300-C0i202211-202411

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-0R310-C0supersedes 45100-0R300-C0i202211-202411

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,3#; 3-SPOKE,LEATHER,SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#

main45100-0R590-C2i202411

3-SPOKE,LEATHER,BLACK/GRAY,TRIM1#

main45100-0R590-C3i202411

3-SPOKE,LEATHER,BLACK/SILVER,TRIM0#

main45100-0R310-C3supersedes 45100-0R300-C0i202411

3-SPOKE,LEATHER,SEAT HEATER-WITH(FRONT SEAT),BLACK/GRAY,TRIM1#

main45100-0R310-C4i202411

3-SPOKE,LEATHER,SEAT HEATER-WITH(FRONT SEAT),BLACK/SILVER,TRIM0#

45130BUTTON ASSY, HORN

main45130-0R120-C0i202411

BLACK,TRIM0#,1#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-46020supersedes 864A1-78040i202211-202312

STEERING-STEER BY WIRE&SEAT HEATER-WITH(*DRP(RADIATION))

main864A1-78020i202211-202411

SEAT HEATER-WITH(DRIVER & PASSENGER)

main864A1-78040i202211-202312

STEERING-RACK PARALLEL EPS&SEAT HEATER-WITH(DRIVER & PASSENGER)

9010918006

main90109-18006

9015950265

main90159-50265

9016840113

main90168-40113

7 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota BZ4X (GTMC)

This section contains 7 genuine Toyota parts for the STEERING WHEEL system of the Toyota BZ4X (GTMC). Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, SWITCH & RELAY & COMPUTER, COMPUTER, MULTIPLEX NETWORK STEERING.
