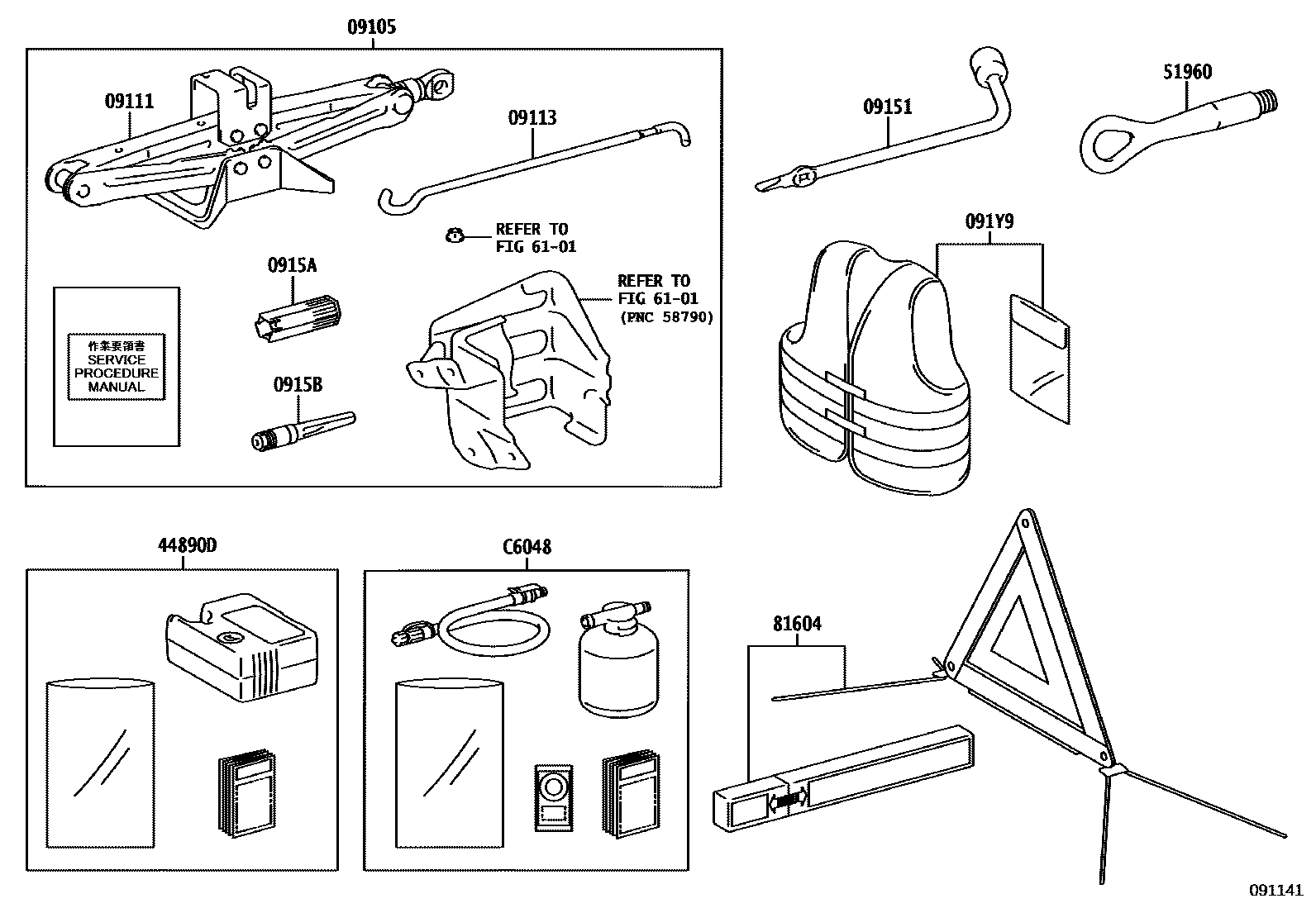

Toyota BZ4X (GTMC) — STANDARD TOOL

09105BOX SET, JACK

main09105-0R010i202211-202312

main09105-0R011i202411

09111JACK SUB-ASSY

main09111-0R070i202411

09113HANDLE, JACK

main09113-0R030i202411

09151WRENCH, HUB BOLT BOX

main09151-0R010i202411

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-0R010i202411

0915BPIN, WHEEL GUIDE

main0915B-0R010i202411

091Y9JACKET, W/REFLECTOR

main091Y9-02010i202411

44890DCOMPRESSOR ASSY, AIR

main44890-0R020i202411

51960HOOK ASSY, FRONT

main51961-0R050i202411

6101SIDE MEMBER

→ Go to FIG 61-01

81604REFLECTOR SET, TRIANGLE

main81604-0E010i202411

C6048REPAIR SET, TIRE

main42606-0R030i202411

12 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota BZ4X (GTMC)

This section contains 12 genuine Toyota parts for the STANDARD TOOL system of the Toyota BZ4X (GTMC). Key components include: BOX SET, JACK, JACK SUB-ASSY, HANDLE, JACK, WRENCH, HUB BOLT BOX, SOCKET, HUB BOLT TEMPORARY SETTING.
