Toyota BZ4X (GTMC) — FRONT DOOR LOCK & HANDLE
6712LOCK CYLINDER SET
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM0#,1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#,1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATINUM WHITE PEARL MC.,089 ,2PU
DK.GRAY ME.,1L9 ,2WX
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,2TL ,4X1
BEIGE M.M.,2WW ,587
PLATINUM WHITE PEARL MC.,089 ,2PU
DK.GRAY ME.,1L9 ,2WX
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,2TL ,4X1
BEIGE M.M.,2WW ,587
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089 ,2PU
DK.GRAY ME.,1L9 ,2WX
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,2TL ,4X1
BEIGE M.M.,2WW ,587
PLATINUM WHITE PEARL MC.,089 ,2PU
DK.GRAY ME.,1L9 ,2WX
BLACK MC.,209
EMOTIONAL RED 2,2SZ ,3U5
STEEL BLONDE ME.,2TL ,4X1
BEIGE M.M.,2WW ,587
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM0#,1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM0#,1#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69296CSCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014860083
main90148-60083
90148C0006
main90148-C0006
90167C0013
main90167-C0013
9017905114
main90179-05114
90189C0001
main90189-C0001
34 parts on this diagram · 1 diagram in section

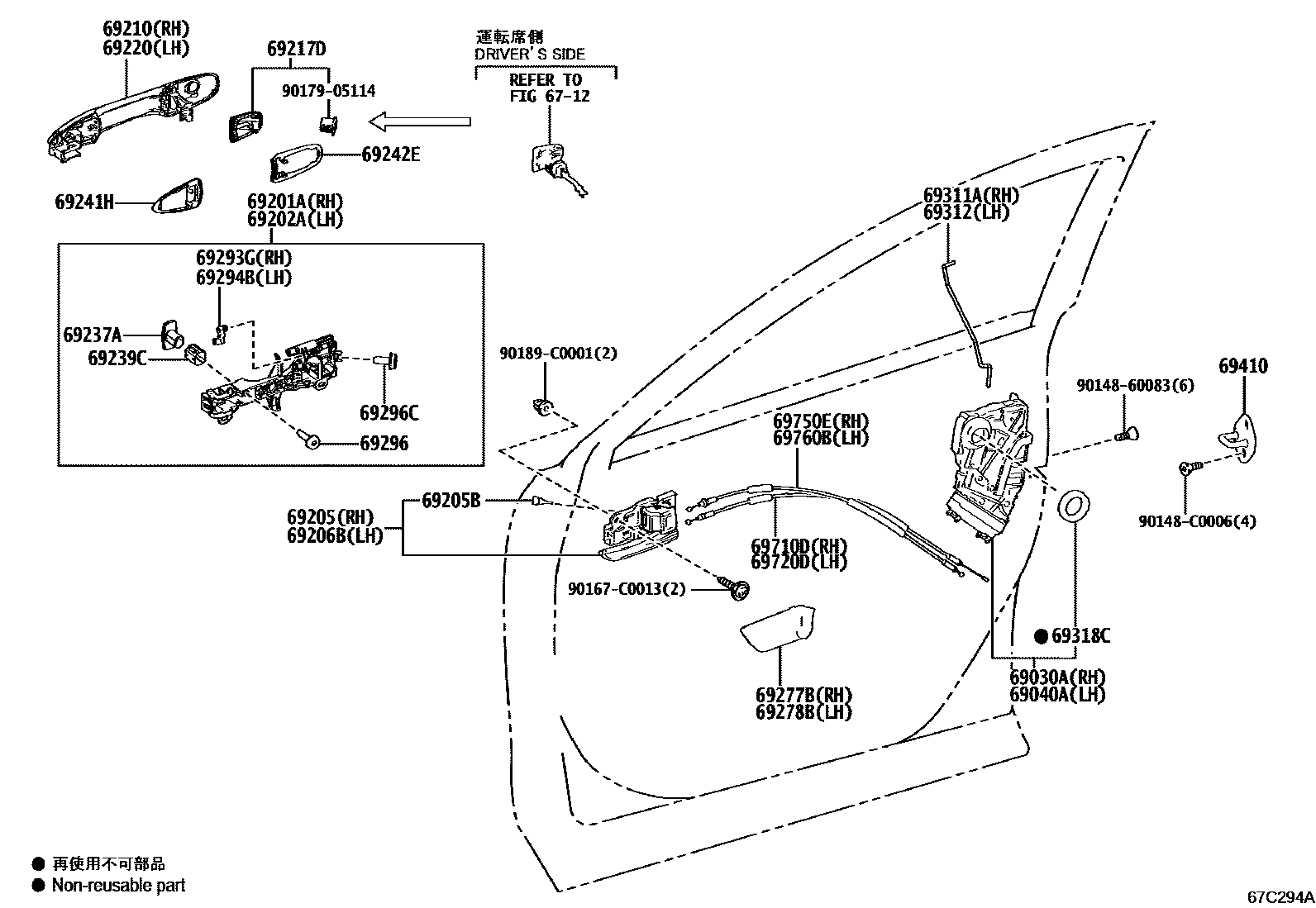

FRONT DOOR LOCK & HANDLE for Toyota BZ4X (GTMC)
This section contains 34 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota BZ4X (GTMC). Key components include: LOCK CYLINDER SET, LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH.
