Toyota BZ4X (GTMC) — FLOOR SIDE MEMBER

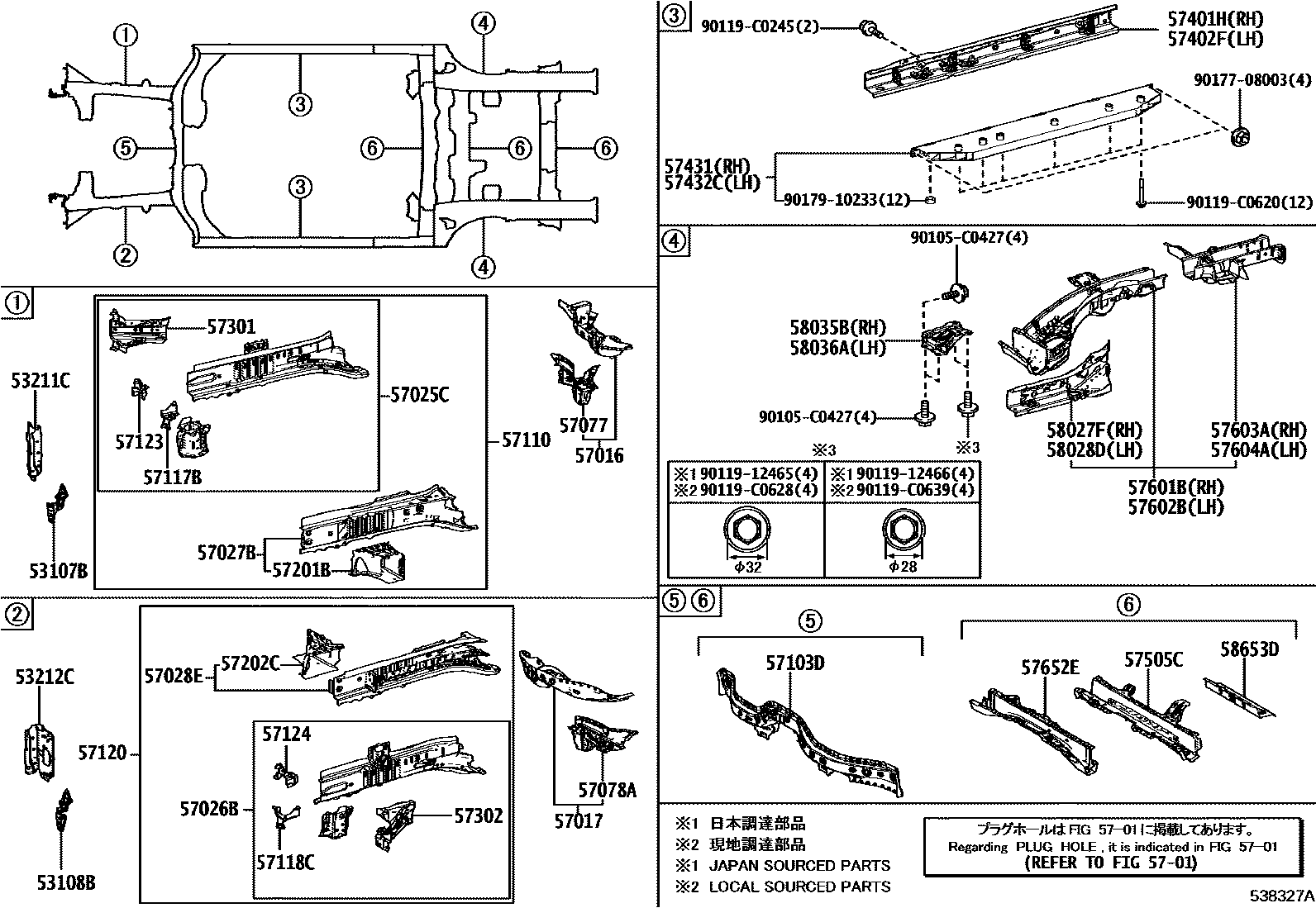

Parts diagram
53107BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH
main53107-0R010i202211-202411
53108BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER LH
main53108-0R010i202211-202411
53211CSUPPORT, RADIATOR, RH
main53211-0R070i202211-202411
53212CSUPPORT, RADIATOR, LH
main53212-0R060i202211-202411
5701HOLE PLUG
→ Go to FIG 57-01
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
main57016-0R060i202211-202411
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
main57017-0R080i202211-202411
57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
main57025-0R080i202211-202411
57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
main57026-0R080i202211-202411
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
main57027-0R070i202211-202411
57028EBRACKET SUB-ASSY, CONVERTER SUPPORT
main57028-0R070i202211-202411
57077BOX SUB-ASSY, TORQUE, FRONT RH
main57077-0R040i202211-202411
57078ABOX SUB-ASSY, TORQUE, FRONT LH
main57078-0R050i202211-202411
57103DCROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL
main57103-0R010i202211-202306
main57103-0R030i202306-202411
57110MEMBER ASSY, FRONT SIDE, RH
main57110-0R020i202211-202411
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
main57117-0R060i202211-202411
57118CRETAINER, FRONT BUMPER ARM, LH
main57118-0R060i202211-202411
57120MEMBER ASSY, FRONT SIDE, LH
main57120-0R020i202211-202411
57123SUPPORT, FRONT SIDE MEMBER, RH
main57123-0R070i202211-202411
57124SUPPORT, FRONT SIDE MEMBER, LH
main57124-0R070i202211-202411
57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
main57201-0R010i202211-202411
57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
main57202-0R010i202211-202411
57301OUTRIGGER SUB-ASSY, NO.1 RH
main57301-0R010i202211-202411
57302OUTRIGGER SUB-ASSY, NO.1, LH
main57302-0R010i202211-202411
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
main57401-0R120i202211-202411
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
main57402-0R130i202211-202411
57431REINFORCEMENT, CENTER FLOOR, NO.1 RH
main57431-0R030i202211-202411
57432CREINFORCEMENT, CENTER FLOOR, NO.1 LH
main57432-0R030i202211-202411
57505CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
main57505-0R090i202211-202411
57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
main57601-0R120i202211-202411
57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
main57602-0R120i202211-202411
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
main57603-0R080i202211-202411
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
main57604-0R080i202211-202411
57652EMEMBER, REAR FLOOR CROSS, NO.1
main57652-0R130i202211-202411
58027FPANEL SUB-ASSY, CENTER FLOOR SIDE, RH
main58027-0R050i202211-202411
58028DPANEL SUB-ASSY, CENTER FLOOR SIDE, LH
main58028-0R050i202211-202411
58035BBRACE SUB-ASSY, REAR FLOOR PANEL, RH
main58035-0R010i202211-202411
58036ABRACE SUB-ASSY, REAR FLOOR PANEL, LH
main58036-0R010i202211-202411
58653DSHEET, REAR FLOOR SILENCER, NO.2
main58653-0R070i202211-202411
90105C0427
main90105-C0427
9011912465
main90119-12465
9011912466
main90119-12466
90119C0245
main90119-C0245
90119C0620
main90119-C0620
90119C0628
main90119-C0628
90119C0639
main90119-C0639
9017708003
main90177-08003
9017910233
main90179-10233

48 parts on this diagram · 1 diagram in section
