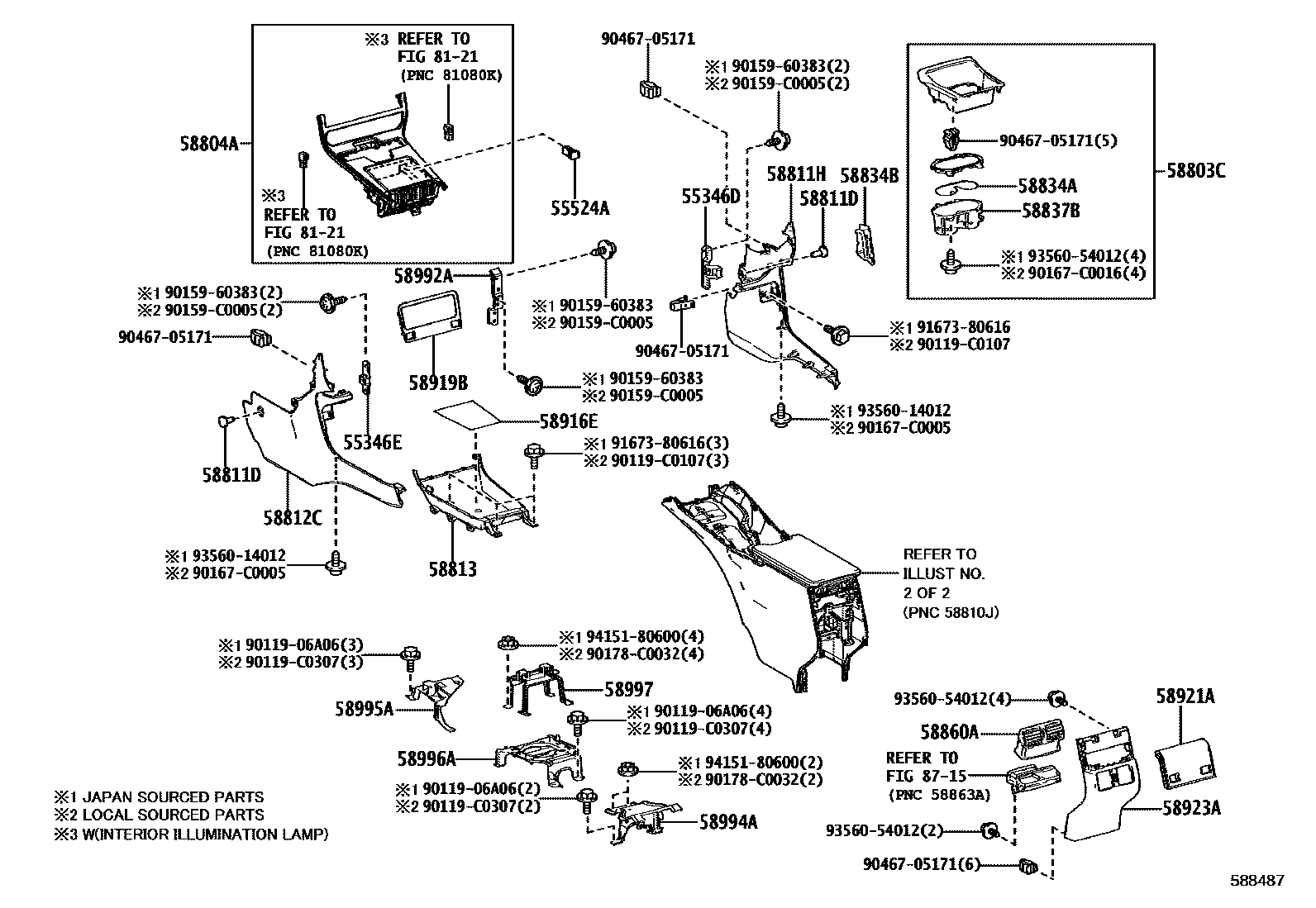

Toyota BZ4X (GTMC) — CONSOLE BOX & BRACKET
55346DBRACKET, AIR CONDITIONING MOUNTING, NO.1
55346EBRACKET, AIR CONDITIONING MOUNTING, NO.2
55524ACOVER, SWITCH BASE HOLE
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
58804APANEL SUB-ASSY, CONSOLE, UPPER
WIRELESS CHARGER-WITH
WIRELESS CHARGER-WITH
58811DCLIP(FOR CONSOLE BOX)
BLACK
58811HBOX, CONSOLE, RH
BLACK,TRIM0#,1#
58812CBOX, CONSOLE, LH
BLACK,TRIM0#,1#
58813BOX, CONSOLE, UPPER
BLACK,TRIM0#,1#
58834ACOVER, CONSOLE, LOWER
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK,TRIM0#,1#
58837BBOX, CONSOLE CUP HOLDER
58860AREGISTER ASSY, CONSOLE BOX
BLACK
58916EMAT, BOX BOTTOM
BLACK,TRIM0#,1#
TERRAROSSA,TRIM3#
58919BPLATE, CONSOLE BOX
58921APANEL, REAR CONSOLE, UPPER
58923APANEL, CONSOLE REAR END
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,3#
58992ABRACKET, CONSOLE BOX MOUNTING, UPR LH
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8121INTERIOR LAMP
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9011906A06
main90119-06A06
90119C0107
main90119-C0107
90119C0307
main90119-C0307
9015960383
main90159-60383
90159C0005
main90159-C0005
90167C0005
main90167-C0005
90167C0016
main90167-C0016
90178C0032
main90178-C0032
9046705171
main90467-05171
9167380616
main91673-80616
9356014012
main93560-14012
9356054012
main93560-54012
9415180600
main94151-80600
37 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota BZ4X (GTMC)
This section contains 49 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota BZ4X (GTMC). Key components include: BRACKET, AIR CONDITIONING MOUNTING, NO.1, BRACKET, AIR CONDITIONING MOUNTING, NO.2, COVER, SWITCH BASE HOLE, BOX SUB-ASSY, CONSOLE CUP HOLDER, PANEL SUB-ASSY, CONSOLE, UPPER.
