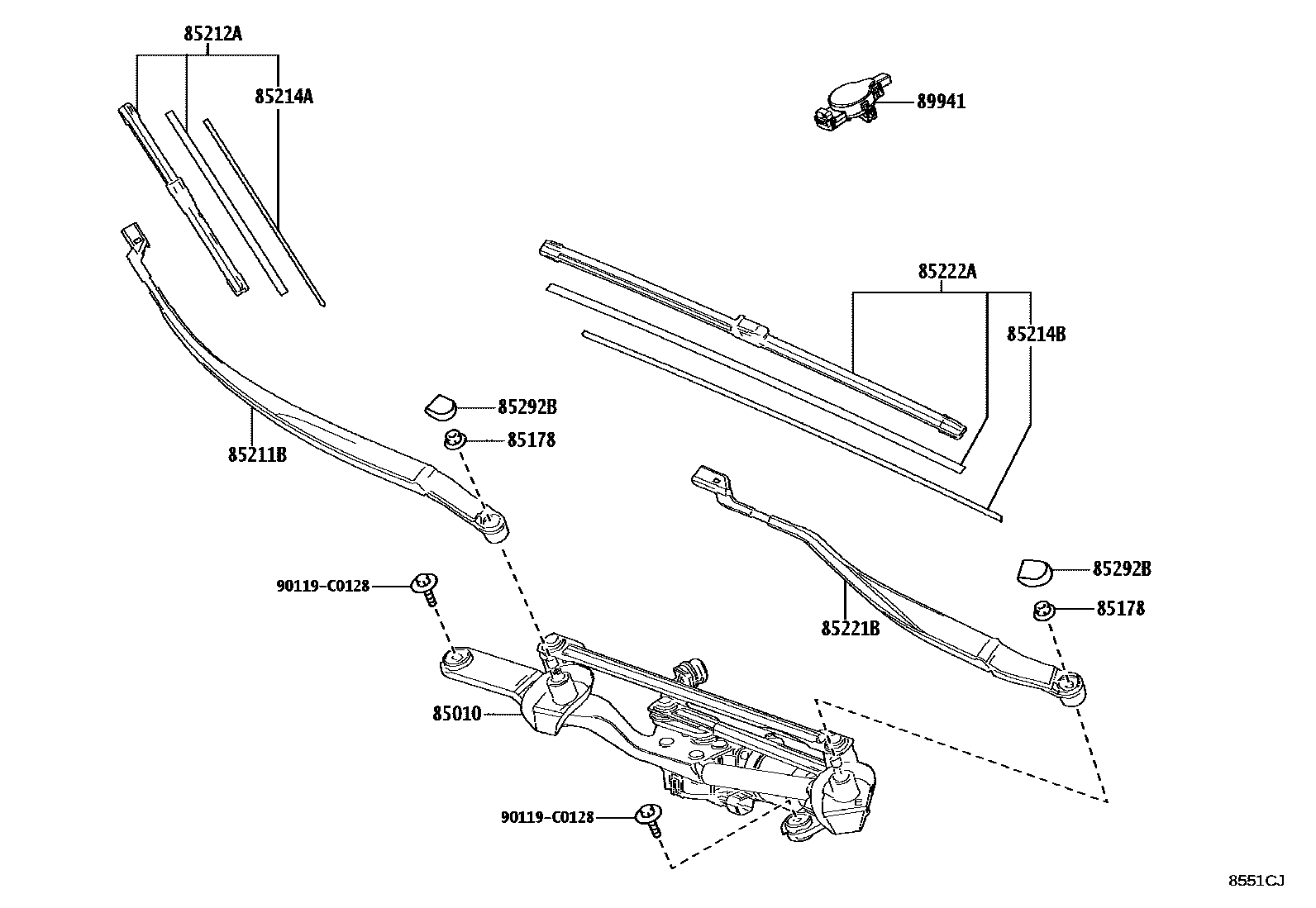

Toyota BZ3C — WINDSHIELD WIPER

85010MOTOR & LINK ASSY, FR WIPER

main85010-03010i202412

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-C0012i202412

85211BARM, FRONT WIPER, RH

main85211-03010i202412

85212ABLADE, FR WIPER, RH

main85212-03010i202412

85214ARUBBER, WIPER, RH

main85214-03010i202412

85214BRUBBER, WIPER, LH

main85214-03020i202412

85221BARM, FRONT WIPER, LH

main85221-03030i202412

85222ABLADE, FR WIPER, LH

main85222-03010i202412

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D070i202412

89941SENSOR, RAIN

main89941-03020i202412

90119C0128

main90119-C0128

11 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota BZ3C

This section contains 11 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota BZ3C. Key components include: MOTOR & LINK ASSY, FR WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
