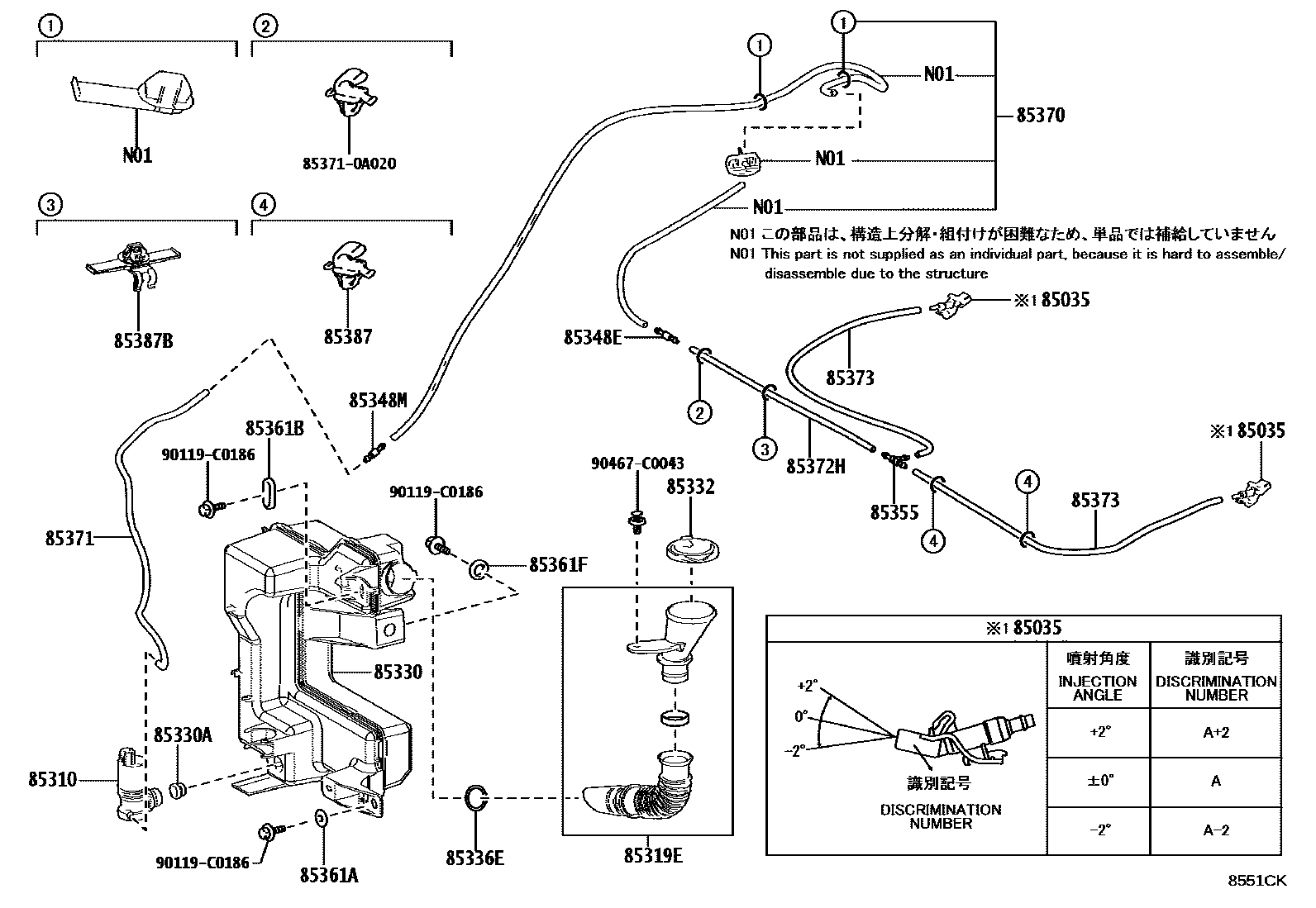

Toyota BZ3C — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0E090×2iBEAG11202412

ANGLE 0

main85381-0E100×2iBEAG11202412

ANGLE +2

main85381-0E110×2iBEAG11202412

ANGLE -2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02100iBEAG11202412

85319EINLET WASHER

main85319-03040iBEAG11202412

85330JAR ASSY, WINDSHIELD WASHER

main85315-03040iBEAG11202412

85330ABUSH, WINDSHIELD WASHER JAR

main90069-52046iBEAG11202412

85332CAP, WINDSHIELD WASHER JAR

main85316-02530iBEAG11202412

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main90069-52051iBEAG11202412

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85375-0E220iBEAG11202412

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-0E220iBEAG11202412

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02750iBEAG11202412

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-03040iBEAG11202412

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85338-02530iBEAG11202412

85361FBRACKET, WINDSHIELD WASHER, NO.3

main85339-02530iBEAG11202412

85370HOSE ASSY, WINDSHIELD WASHER

main85370-03060iBEAG11202412

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46252iBEAG11202412

L=489

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90069-46255iBEAG11202412

L=386

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46256×2iBEAG11202412

L=516

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-0A020×2iBEAG11202412

85387BCLAMP, WASHER, NO.3

main82711-35750iBEAG11202412

853710A020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-0A020

90119C0186

main90119-C0186

90467C0043

main90467-C0043

22 parts on this diagram · 1 diagram in section
