Toyota BZ3C — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

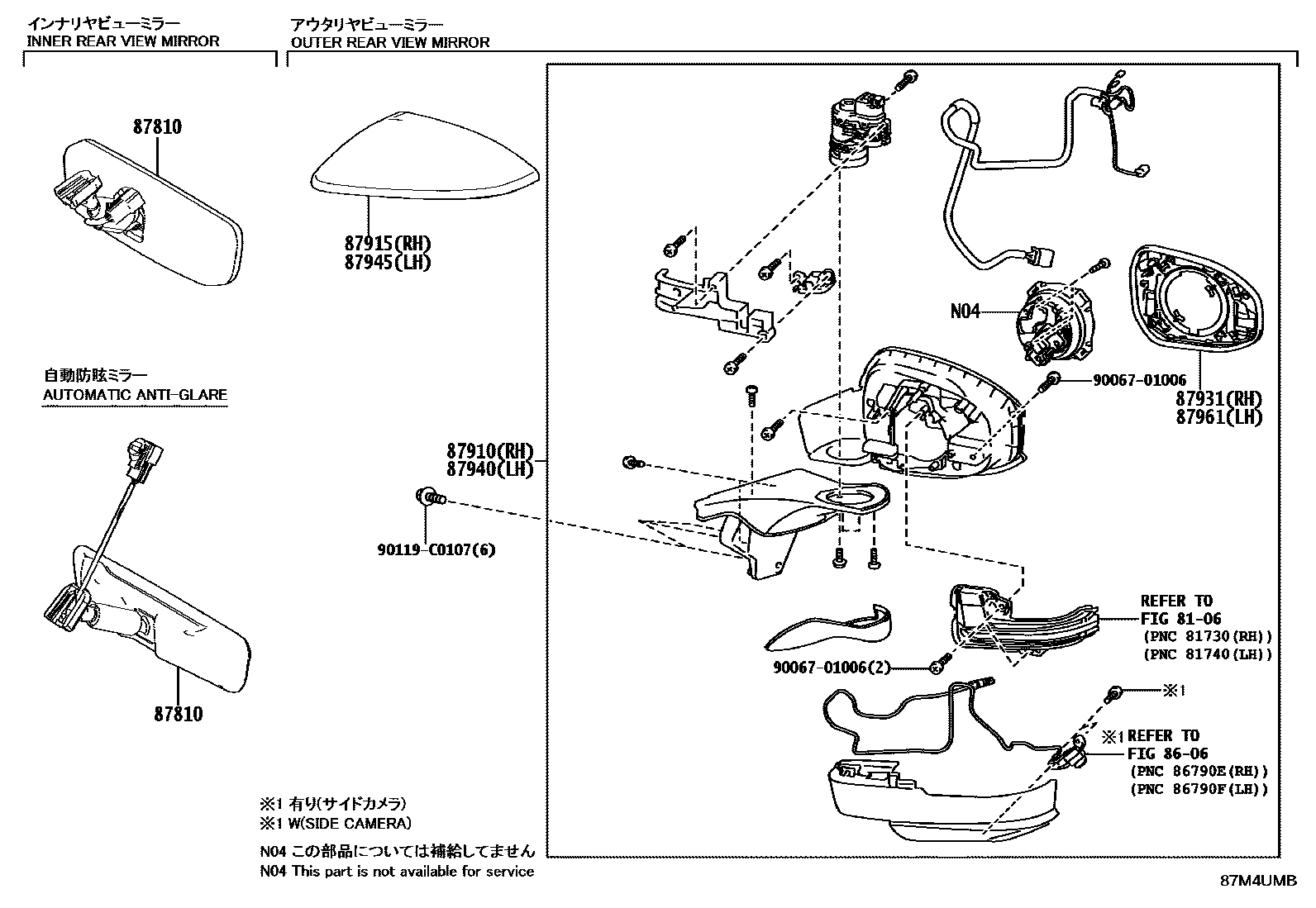

87810MIRROR ASSY, INNER REAR VIEW

main87810-07180i202412

main87810-08170i202412

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-03110i202412

NO PAINT REQ.

main87910-03140supersedes 87910-03120i202412

NO PAINT REQ.,ADVANCED PACKAGE

main87910-03150supersedes 87910-03130i202412

NO PAINT REQ.,ADVANCED PACKAGE

87915COVER, OUTER MIRROR, RH

main87915-03900i202412

PAINT REQ.

87931OUTER MIRROR, RH

main87902-03020i202412

main87902-03030i202412

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-03090i202412

NO PAINT REQ.

main87940-03120supersedes 87940-03100i202412

NO PAINT REQ.,ADVANCED PACKAGE

main87940-03130supersedes 87940-03110i202412

NO PAINT REQ.,ADVANCED PACKAGE

87945COVER, OUTER MIRROR, LH

main87945-03900i202412

PAINT REQ.

87961MIRROR OUTER, LH

main87907-03020i202412

main87907-03030i202412

9006701006

main90067-01006

90119C0107

main90119-C0107

11 parts on this diagram · 1 diagram in section

MIRROR for Toyota BZ3C

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota BZ3C. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
