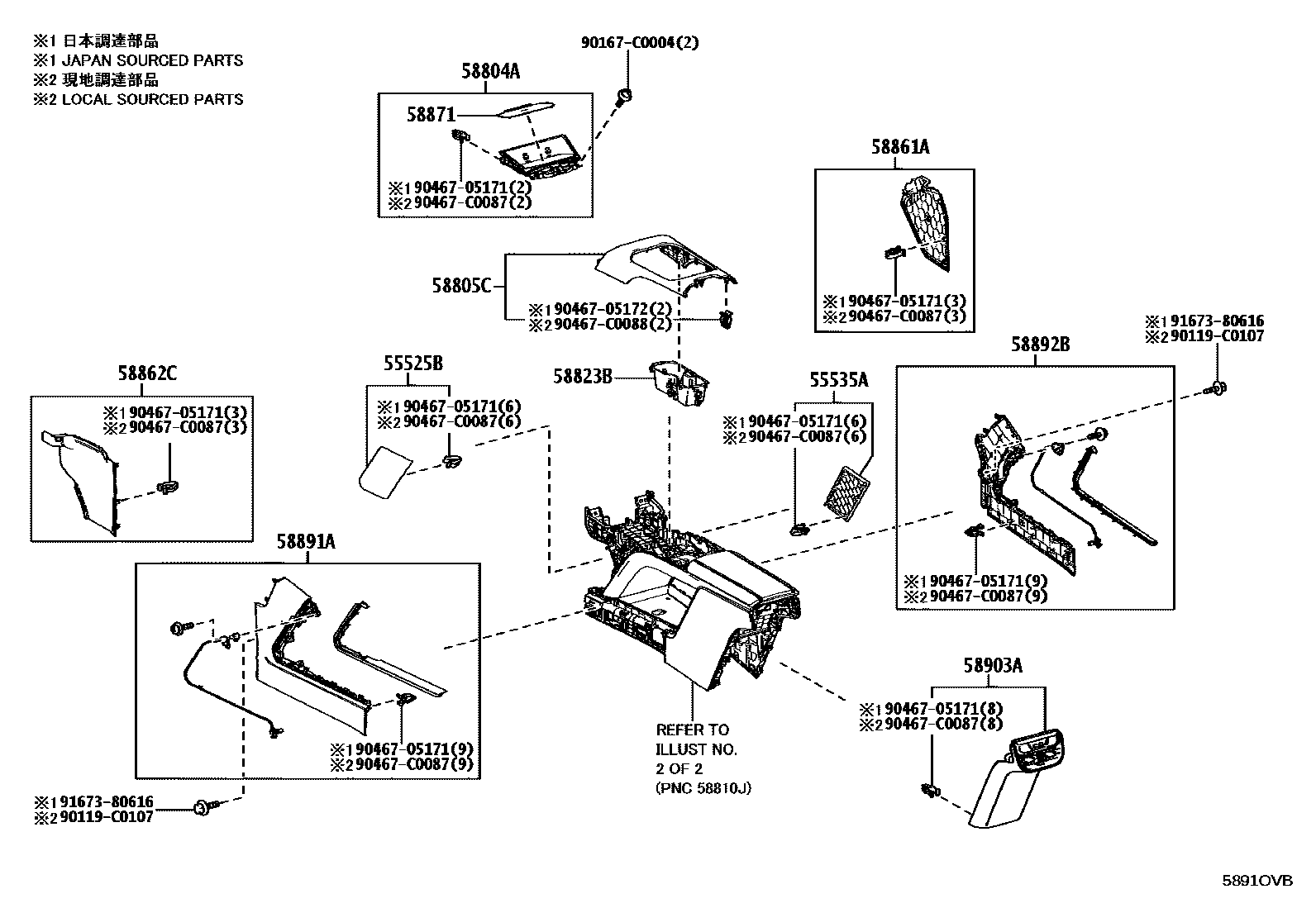

Toyota BZ3C — CONSOLE BOX & BRACKET

0001 1 0002 1

55525BCOVER, SPEAKER HOLE, NO.1

main55525-03010-A0iBEAG11..G,L202412

WHITE,TRIM0#

main55525-03010-C0iBEAG11..G,L,N202412

BLACK,TRIM2#

main55525-03010-D0iBEAG11..G,L202412

RED BLUSH,TRIM3#

main55525-03020iBEAG11..F202412

55535ACOVER, SPEAKER HOLE, NO.2

main55535-03010-A0iBEAG11..G,L202412

WHITE,TRIM0#

main55535-03010-C0iBEAG11..G,L,N202412

BLACK,TRIM2#

main55535-03010-D0iBEAG11..G,L202412

RED BLUSH,TRIM3#

main55535-03020iBEAG11..F202412

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-03050iBEAG11..F,G,L202412

main58804-03060iBEAG11..N202412

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-03030-A0iBEAG11..F,G,L202412

WHITE,TRIM0#

main58805-03030-C0iBEAG11202412

BLACK,TRIM2#

main58805-03030-D0iBEAG11..F,G,L202412

RED BLUSH,TRIM3#

58823BBOX, CONSOLE COMPARTMENT

main58823-03010iBEAG11202412

58861ASUPPORT, CONSOLE BOX, NO.1

main58865-03020-C0iBEAG11..N202412

BLACK,TRIM2#

main58865-03030-C0supersedes 58865-03020-C0iBEAG11..F,G,L202412

ADVANCED PACKAGE,BLACK,TRIM0#,2#,3#

58862CSUPPORT, CONSOLE BOX, NO.2

main58866-03020-C0iBEAG11..N202412

BLACK,TRIM2#

58871CUSHION, CONSOLE BOX

main58871-03050iBEAG11..F,G,L202412

main58871-03060iBEAG11..N202412

58891APANEL, EQUIPMENT SET, NO.1

main58891-03020-C0iBEAG11..G,L202412

BLACK,TRIM2#

main58891-03030-C0iBEAG11..F202412

BLACK,TRIM0#,2#,3#

58892BPANEL, EQUIPMENT SET, NO.2

main58892-03020-C0iBEAG11..G,L202412

BLACK,TRIM2#

main58892-03030-C0iBEAG11..F202412

BLACK,TRIM0#,2#,3#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-03050-C0iBEAG11..F,G,L202412

BLACK,TRIM0#,2#,3#

main58903-03070-C0iBEAG11..N202412

BLACK,TRIM2#

90119C0107

main90119-C0107

90167C0004

main90167-C0004

9046705171

main90467-05171

9046705172

main90467-05172

90467C0087

main90467-C0087

90467C0088

main90467-C0088

9167380616

main91673-80616

18 parts on this diagram · 2 diagrams in section
