Toyota BZ3C — ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
74220ARMREST ASSY, FRONT, LH
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
74231PANEL, FRONT ARMREST BASE, UPPER RH
74231BPANEL, DOOR ARMREST BASE, RH
74232PANEL, FRONT ARMREST BASE, UPPER LH
74232BPANEL, DOOR ARMREST BASE, LH
74241PLUG, FRONT DOOR ARMREST, RH
74242PLUG, FRONT DOOR ARMREST, LH
74248PLUG, REAR DOOR ARMREST, RH
74249PLUG, REAR DOOR ARMREST, LH
74250ARMREST ASSY, REAR RH
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
74260ARMREST ASSY, REAR LH
WHITE,TRIM0#
BLACK,TRIM2#
RED BLUSH,TRIM3#
8401SWITCH & RELAY & COMPUTER
90167C0020
main90167-C0020

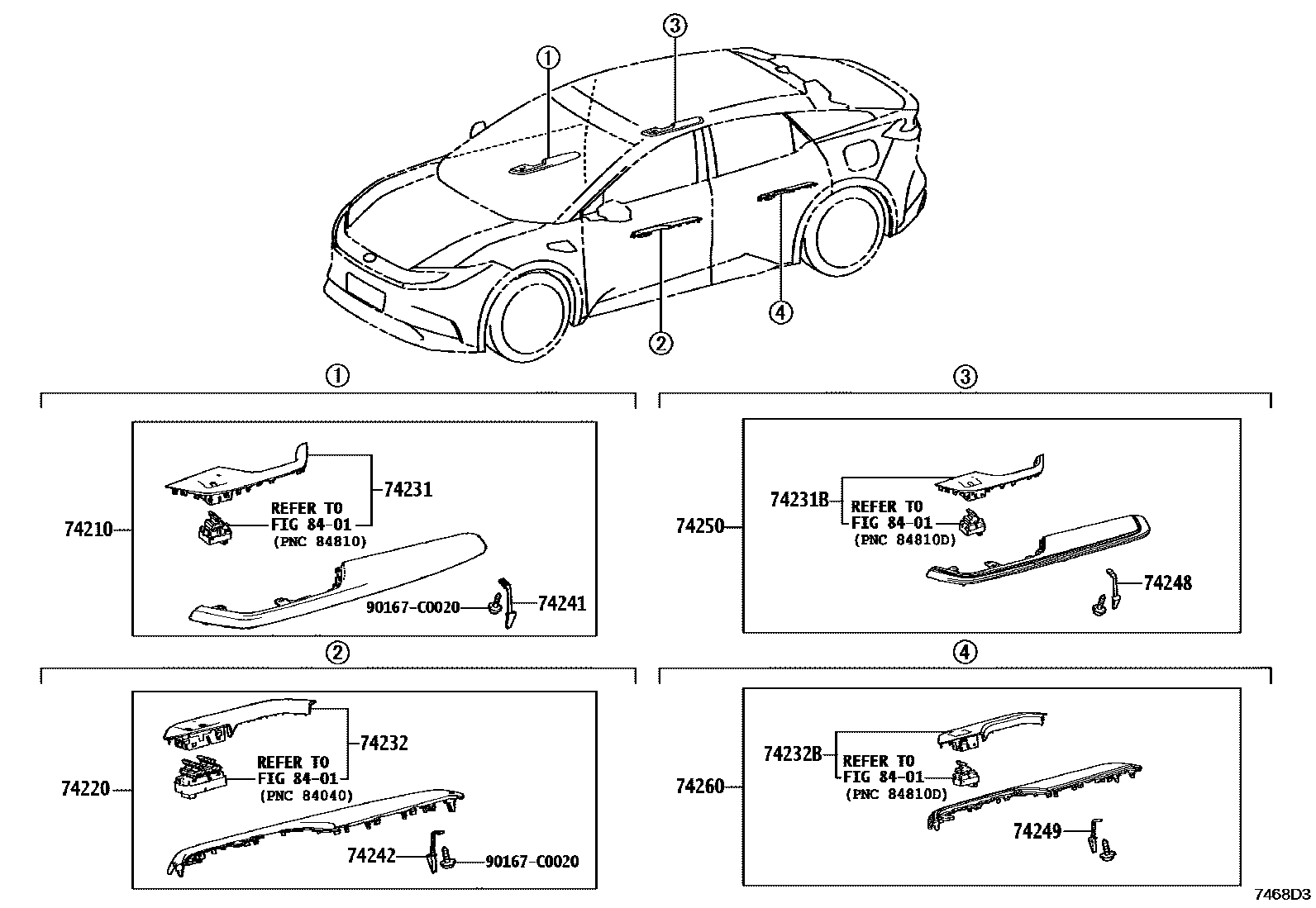

14 parts on this diagram · 2 diagrams in section
ARMREST & VISOR for Toyota BZ3C
This section contains 26 genuine Toyota parts for the ARMREST & VISOR system of the Toyota BZ3C. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, DOOR ARMREST BASE, RH, PANEL, FRONT ARMREST BASE, UPPER LH.
