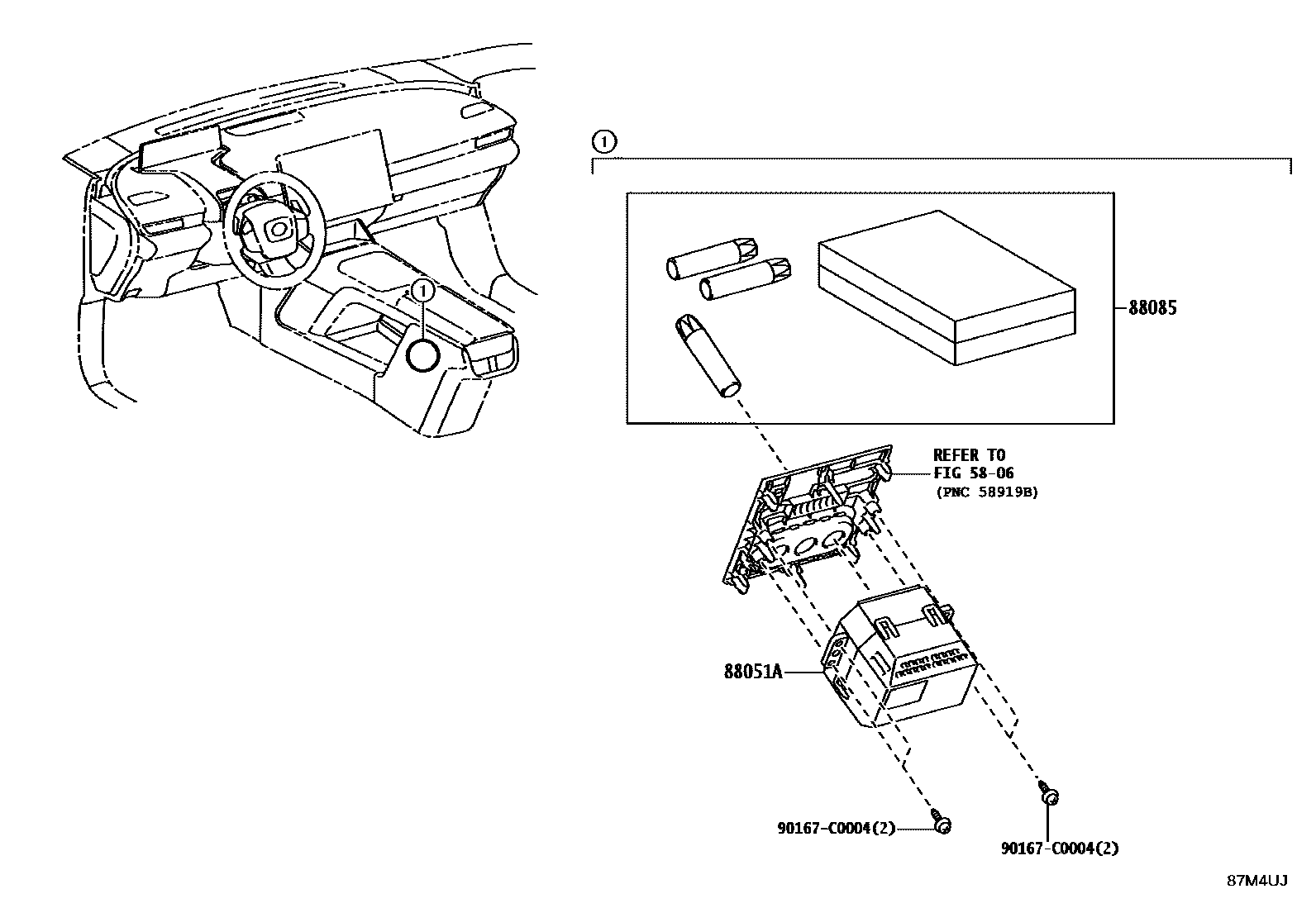

Toyota BZ3C — AIR PURIFIER OR ION GENERATOR

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

88051AGENERATOR SUB-ASSY,ION

main88051-03020i202412

88085CARTRIDGE SUB-ASSY, FRAGRANCE

main88085-03010i202412

90167C0004

main90167-C0004

4 parts on this diagram · 1 diagram in section

AIR PURIFIER OR ION GENERATOR for Toyota BZ3C

This section contains 4 genuine Toyota parts for the AIR PURIFIER OR ION GENERATOR system of the Toyota BZ3C. Key components include: CONSOLE BOX & BRACKET, GENERATOR SUB-ASSY,ION, CARTRIDGE SUB-ASSY, FRAGRANCE.
