Toyota BZ3C — ACCELERATOR LINK

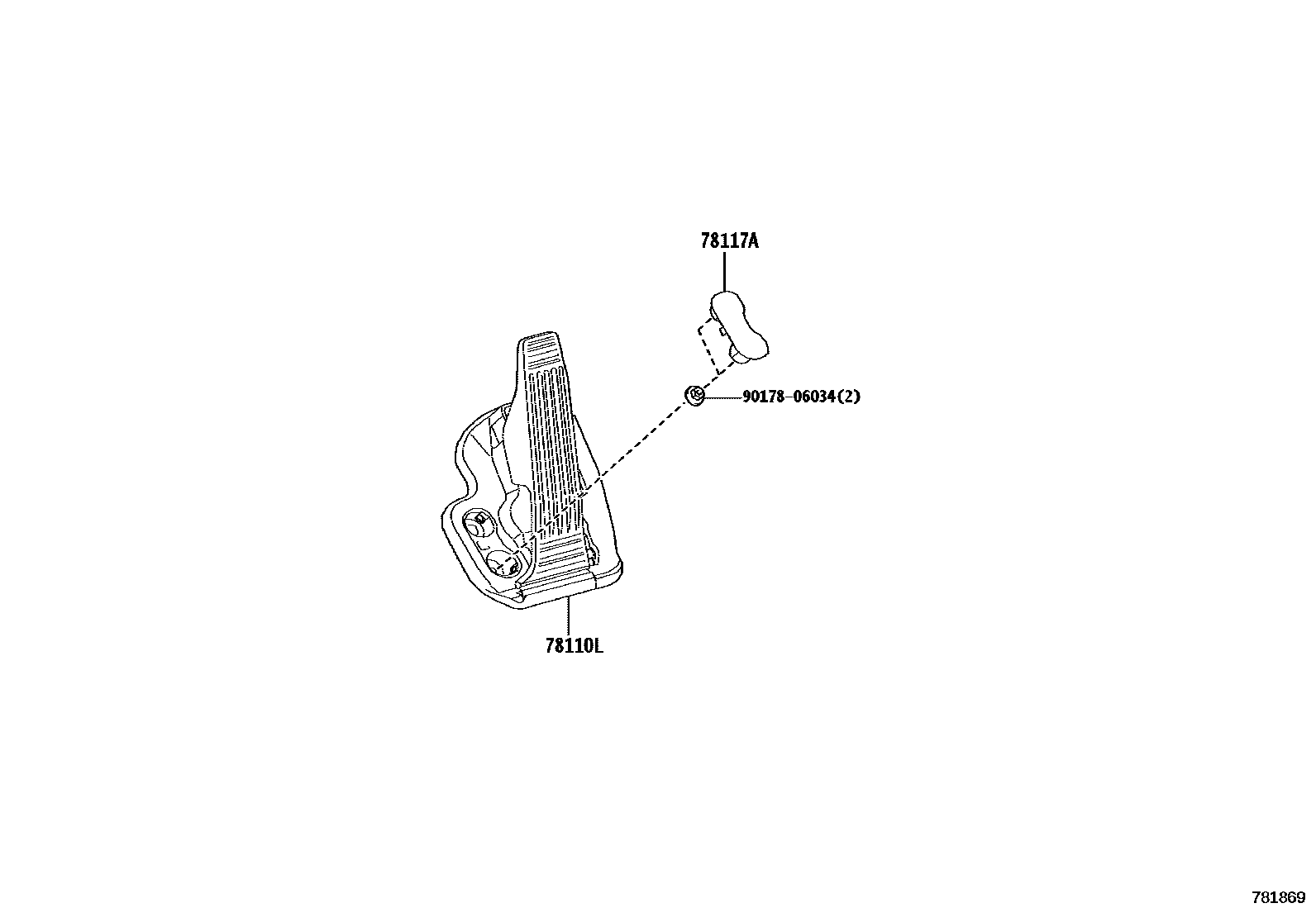

Parts diagram

78110LSENSOR ASSY, ACCELERATOR PEDAL

main78110-0R010i202412-202504

78117ACOVER, ACCELERATOR PEDAL

main78117-0R010i202412-202504

9017806034

main90178-06034

3 parts on this diagram · 1 diagram in section
