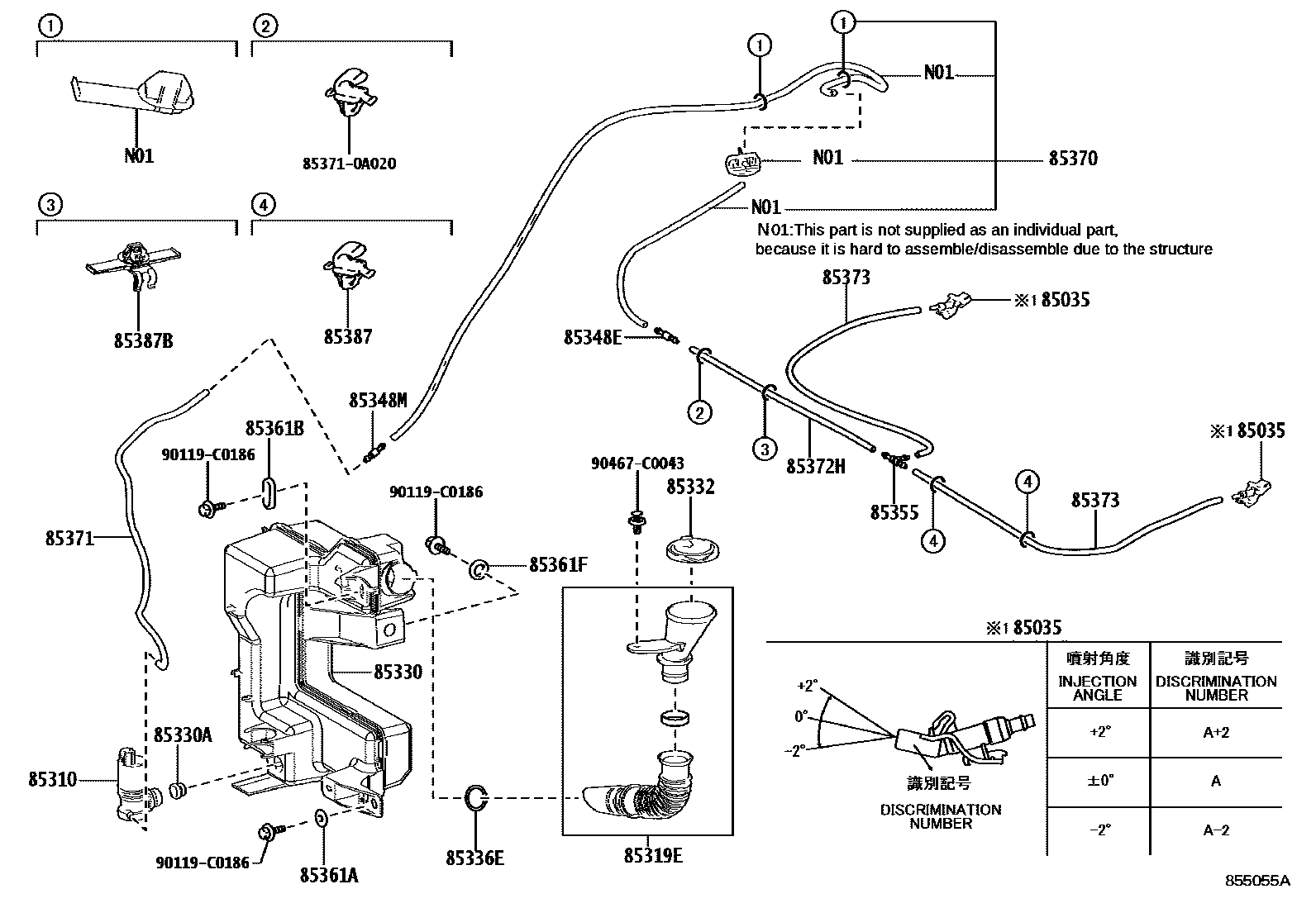

Toyota BZ3 — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE +2
ANGLE -2
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85355VALVE, WINDSHIELD WASHER HOSE
85361ABRACKET, WINDSHIELD WASHER, NO.1
85361BBRACKET, WINDSHIELD WASHER, NO.2
85361FBRACKET, WINDSHIELD WASHER, NO.3
85370HOSE ASSY, WINDSHIELD WASHER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=489
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=386
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=386
L=516
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387BCLAMP, WASHER, NO.3
853710A020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-0A020
90119C0186
main90119-C0186
90467C0043
main90467-C0043
22 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota BZ3
This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota BZ3. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, INLET WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
