Toyota BZ3 — SPEAKER

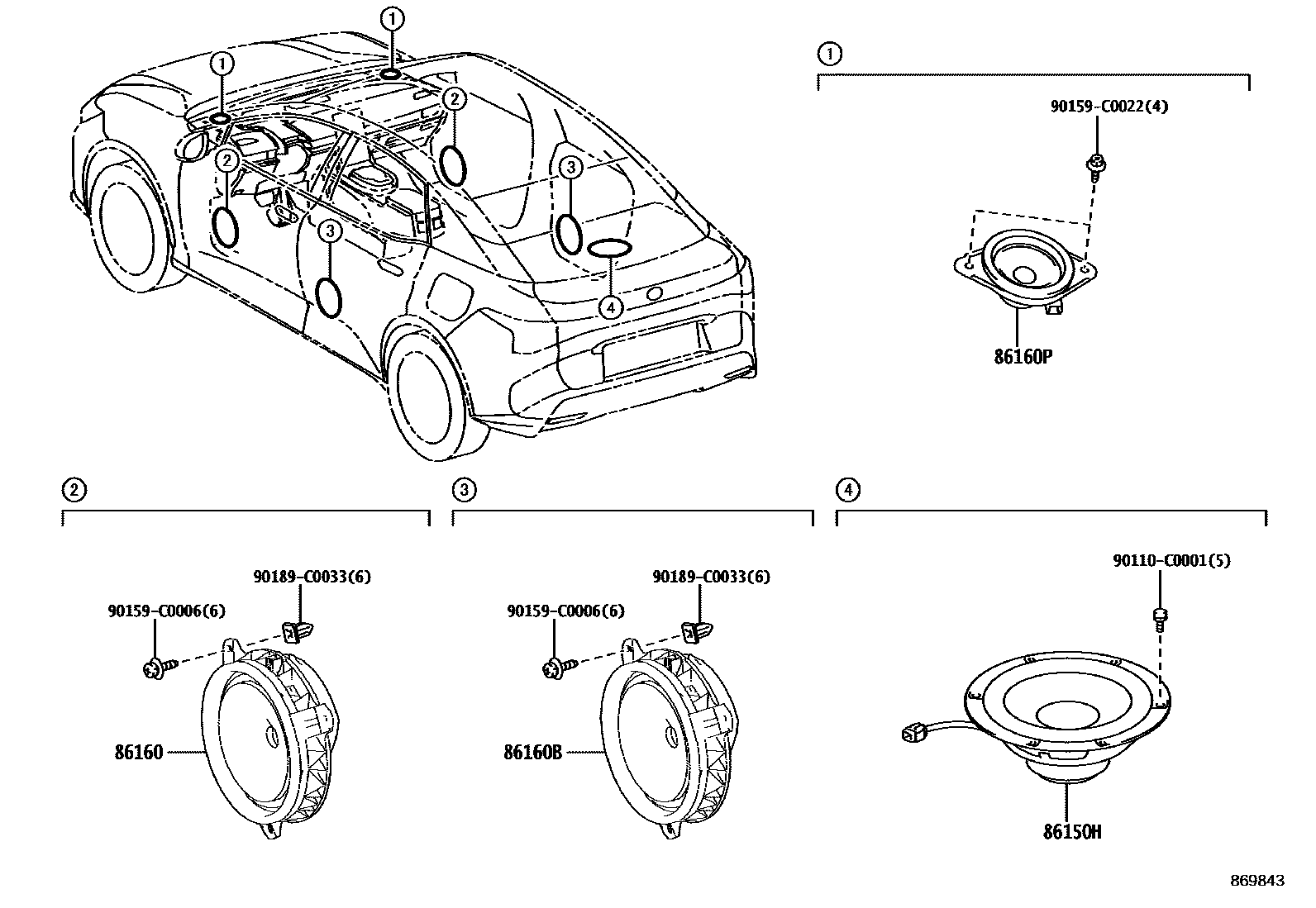

Parts diagram

86150HSPEAKER ASSY, W/BRACKET

main86150-03040i202407

86160SPEAKER ASSY, FRONT NO.1

main86160-02C60×2i202407

86160BSPEAKER ASSY, REAR

main86160-02C60×2i202407

86160PSPEAKER ASSY, FRONT NO.2

main86160-0R170×2i202407

90110C0001

main90110-C0001

90159C0006

main90159-C0006

90159C0022

main90159-C0022

90189C0033

main90189-C0033

8 parts on this diagram · 1 diagram in section

SPEAKER for Toyota BZ3

This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota BZ3. Key components include: SPEAKER ASSY, W/BRACKET, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
