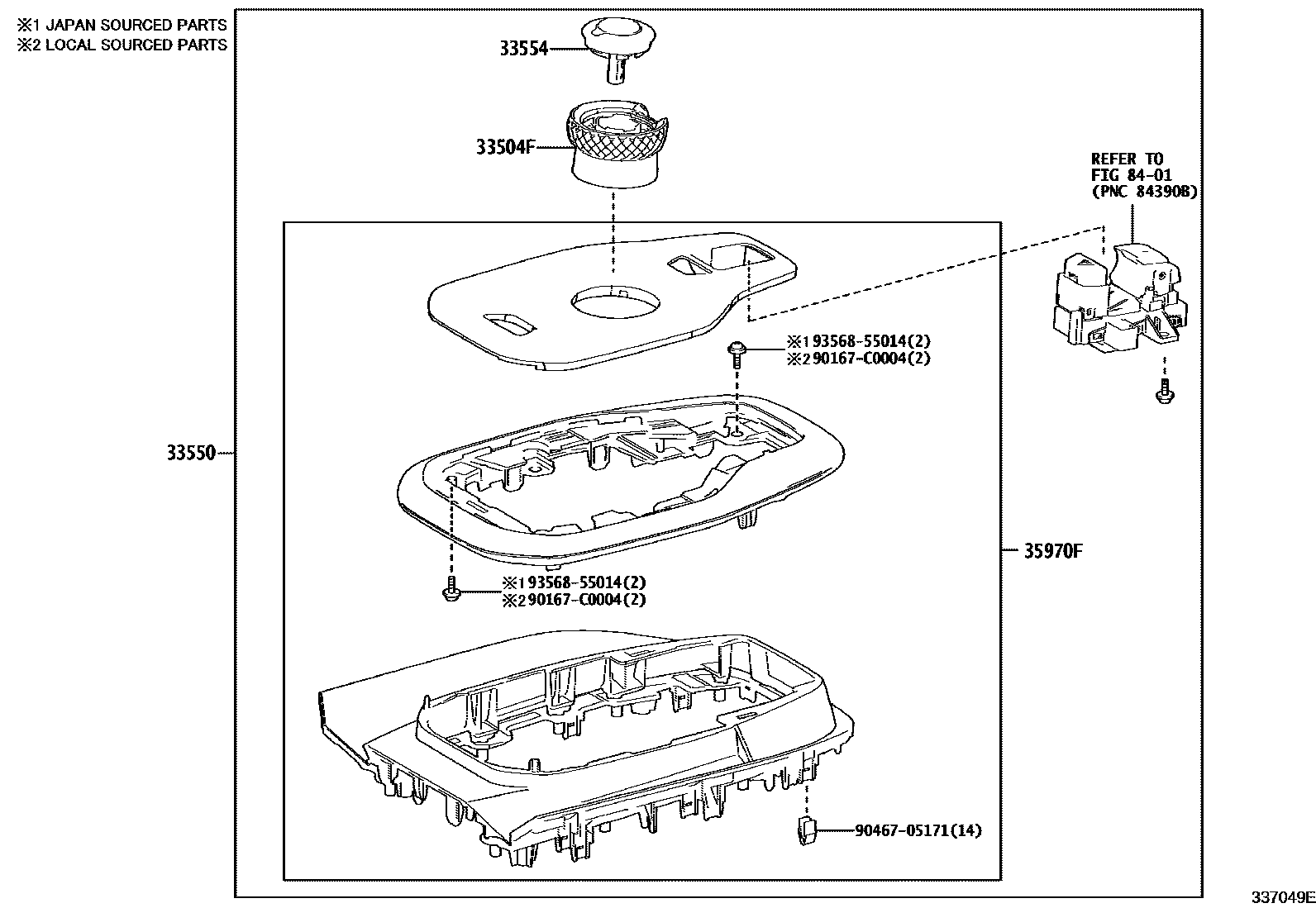

Toyota BZ3 — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-03010i202301

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-03010-B0i202301

GRAY,TRIM2#; GRAY,TRIM20

main33550-03010-C0i202301

BLACK,TRIM20

main33550-03020-B0supersedes 33550-03010-B0i202301

ADVANCED PACKAGE,GRAY,TRIM2#; GRAY,TRIM2#

main33550-03020-B1supersedes 33550-03010-B1i202301

ADVANCED PACKAGE,LT.GRAY,TRIM0#,1#; LT.GRAY,TRIM0#,1#

main33550-03020-E0supersedes 33550-03010-E0i202301

ADVANCED PACKAGE,BROWN,TRIM4#; BROWN,TRIM4#

main33550-03060-B0i202407

GRAY,TRIM2#

main33550-03060-B1i202407

LT.GRAY,TRIM0#

main33550-03090-C1i202407

FLEET PACKAGE,BLACK,TRIM2#; TAXI PACKAGE,BLACK,TRIM2#

33554CAP, SHIFT LEVER

main33554-03010i202407

35970FHOUSING ASSY, POSITION INDICATOR

main35970-03010-B0i202301

GRAY,TRIM2#; GRAY,TRIM20

main35970-03010-C0i202301

BLACK,TRIM20

main35970-03020-B0supersedes 35970-03010-B0i202301

ADVANCED PACKAGE,GRAY,TRIM2#; GRAY,TRIM2#

main35970-03020-B1supersedes 35970-03010-B1i202301

ADVANCED PACKAGE,LT.GRAY,TRIM0#,1#; LT.GRAY,TRIM0#,1#

main35970-03020-E0supersedes 35970-03010-E0i202301

ADVANCED PACKAGE,BROWN,TRIM4#; BROWN,TRIM4#

main35970-03040-B0i202407

GRAY,TRIM2#

main35970-03040-B1i202407

LT.GRAY,TRIM0#

main35970-03090-C1i202407

FLEET PACKAGE,BLACK,TRIM2#; TAXI PACKAGE,BLACK,TRIM2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90167C0004

main90167-C0004

9046705171

main90467-05171

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section

SHIFT LEVER & RETAINER for Toyota BZ3

This section contains 8 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota BZ3. Key components include: KNOB SUB-ASSY, SHIFT LEVER, FLOOR SHIFT ASSY, TRANSMISSION, CAP, SHIFT LEVER, HOUSING ASSY, POSITION INDICATOR, SWITCH & RELAY & COMPUTER.
