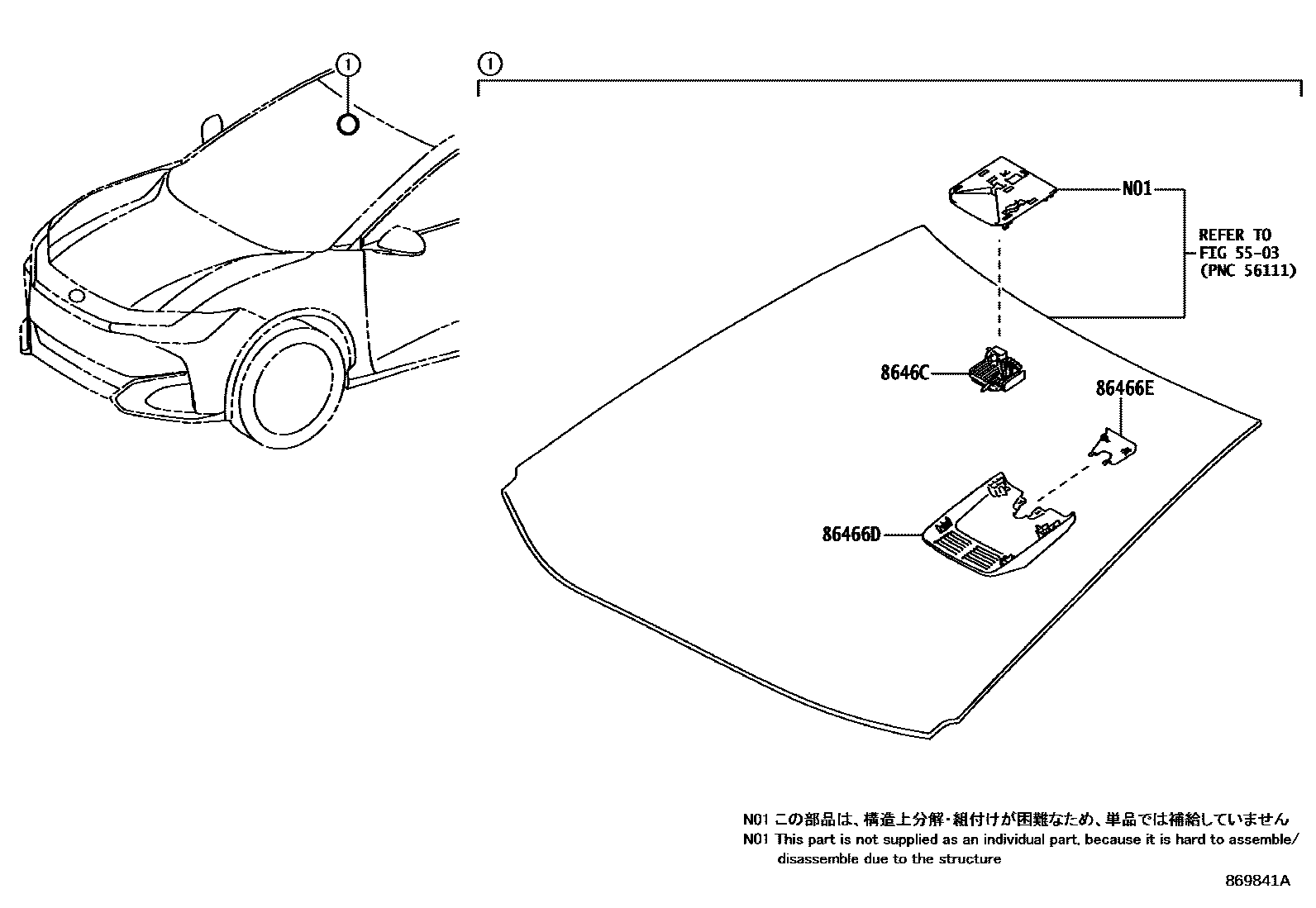

Toyota BZ3 — PRE-COLLISION SYSTEM

5503

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-03010iBEAM10202301

main86466-03040iBEJG10..J,M,N202407

main86466-03050iBEJG10..H202407

86466ECOVER, FORWARD RECOGNITION, NO.2

main86467-03010iBEAM10202301

main86467-03040iBEJG10..J,M,N202407

main86467-03050iBEJG10..H202407

8646CCAMERA, FORWARD RECOGNITION

main86462-03010iBEJG10..H202407

main8646C-03010iBEAM10202301

main8646C-03011iBEJG10..J,M,N202407

4 parts on this diagram · 1 diagram in section
