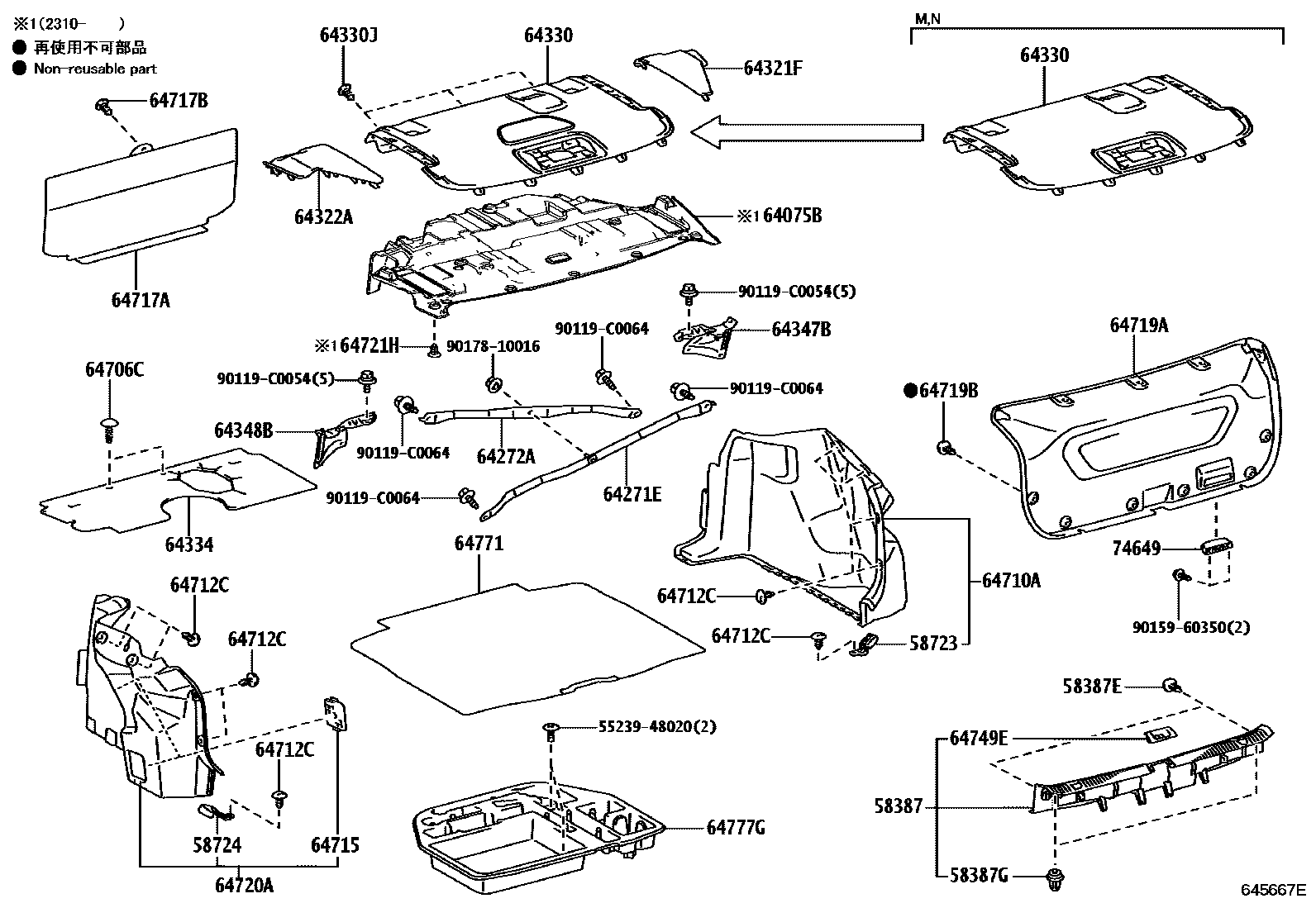

Toyota BZ3 — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
BLACK,TRIM0#,1#,2#,4#
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
58723PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1
58724PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.2
64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#,4#; FLEET PACKAGE,BLACK,TRIM0#,1#,2#,4#; TAXI PACKAGE,BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#; FLEET PACKAGE,BLACK,TRIM0#,2#; TAXI PACKAGE,BLACK,TRIM0#,2#
64271EPANEL, ROOM PARTITION
64272APANEL, ROOM PARTITION, LH
64321FBRACKET, PACKAGE TRAY TRIM, RH
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM0#,2#
64322ABRACKET, PACKAGE TRAY TRIM, LH
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM0#,2#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK,TRIM0#,2#
64334PAD, PACKAGE TRAY TRIM SILENCER
64347BBRACKET, PACKAGE TRAY REINFORCEMENT, RH
64348BBRACKET, PACKAGE TRAY REINFORCEMENT, LH
64706CCLIP
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
BLACK,TRIM0#,2#
64715COVER, LUGGAGE COMPARTMENT, LH
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,1#,2#,4#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
BLACK,TRIM0#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK,TRIM0#,1#,2#,4#; FLEET PACKAGE,BLACK,TRIM2#
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#
64721HCLIP(LUGGAGE COMPARTMENT)
BLACK,TRIM0#,2#; FLEET PACKAGE,BLACK,TRIM0#,2#; TAXI PACKAGE,BLACK,TRIM0#,2#
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
64771COVER, SPARE WHEEL
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
BLACK,TRIM0#,2#
5523948020SILENCER, STEERING COLUMN HOLE COVER
main55239-48020
90119C0054
main90119-C0054
90119C0064
main90119-C0064
9015960350
main90159-60350
9017810016
main90178-10016
34 parts on this diagram · 2 diagrams in section
PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota BZ3
This section contains 35 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota BZ3. Key components include: PLATE, REAR FLOOR FINISH, CLIP(FOR REAR FLOOR FINISH PLATE), PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1, PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.2.
