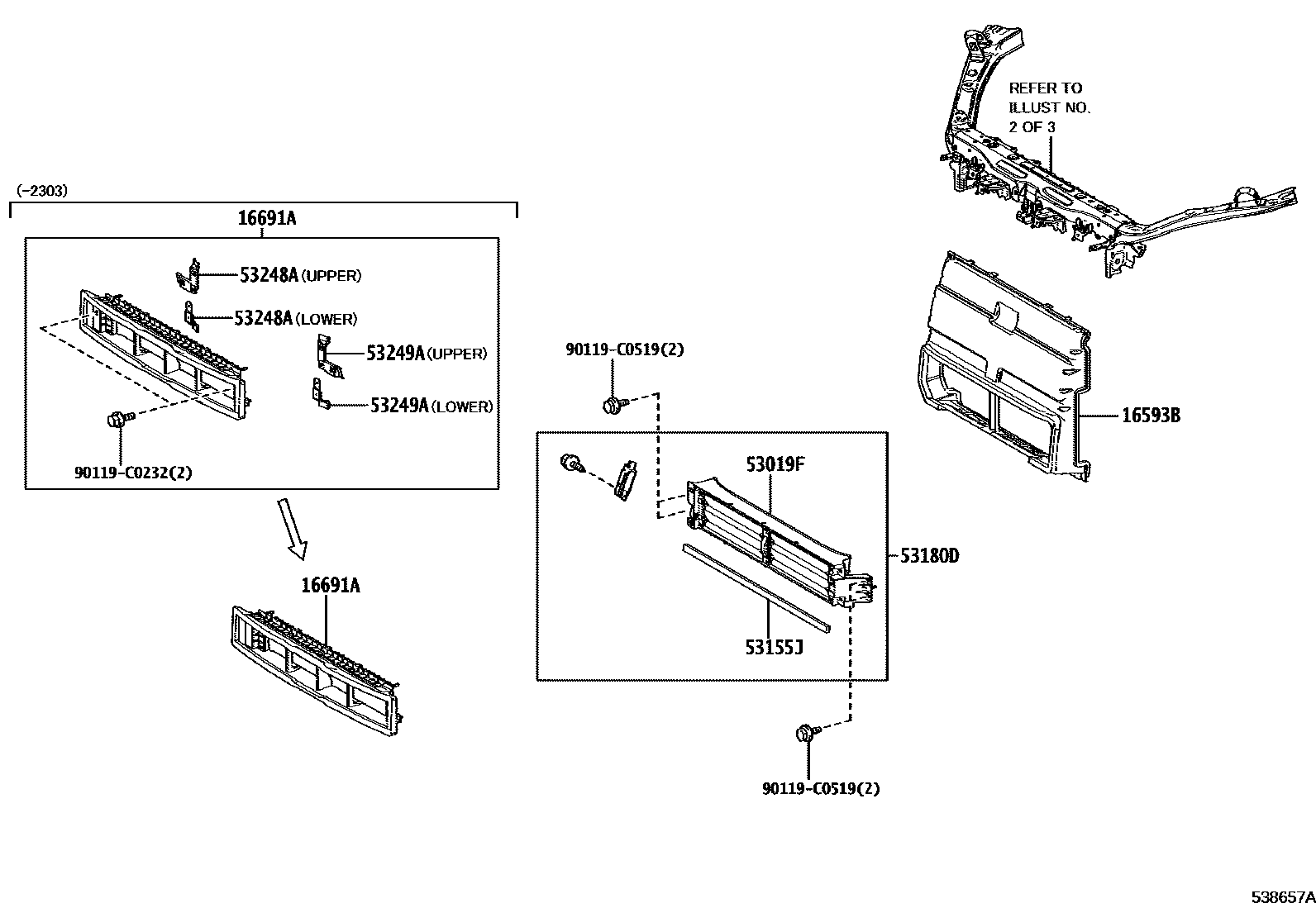

Toyota BZ3 — FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-0Z050iEM..BEJG10202407

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-0Z030iEM..BEJG10202407

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-0R100iBEJG10202407

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-0R140iBEJG10202407

53180DSHUTTER ASSY, RADIATOR

main53180-0R120iBEAM10202301-202304

main53180-0R121iBEJG10202407

53248ABRACKET, RADIATOR SHUTTER, RH

main16582-0Z010iBEAM10202301-202303

LOWER

main16585-0Z010iBEAM10202301-202303

UPPER

53249ABRACKET, RADIATOR SHUTTER, LH

main16583-0Z010iBEAM10202301-202303

LOWER

main16586-0Z010iBEAM10202301-202303

UPPER

90119C0232

main90119-C0232

90119C0519

main90119-C0519

9 parts on this diagram · 3 diagrams in section
