Toyota BREVIS — RADIATOR GRILLE

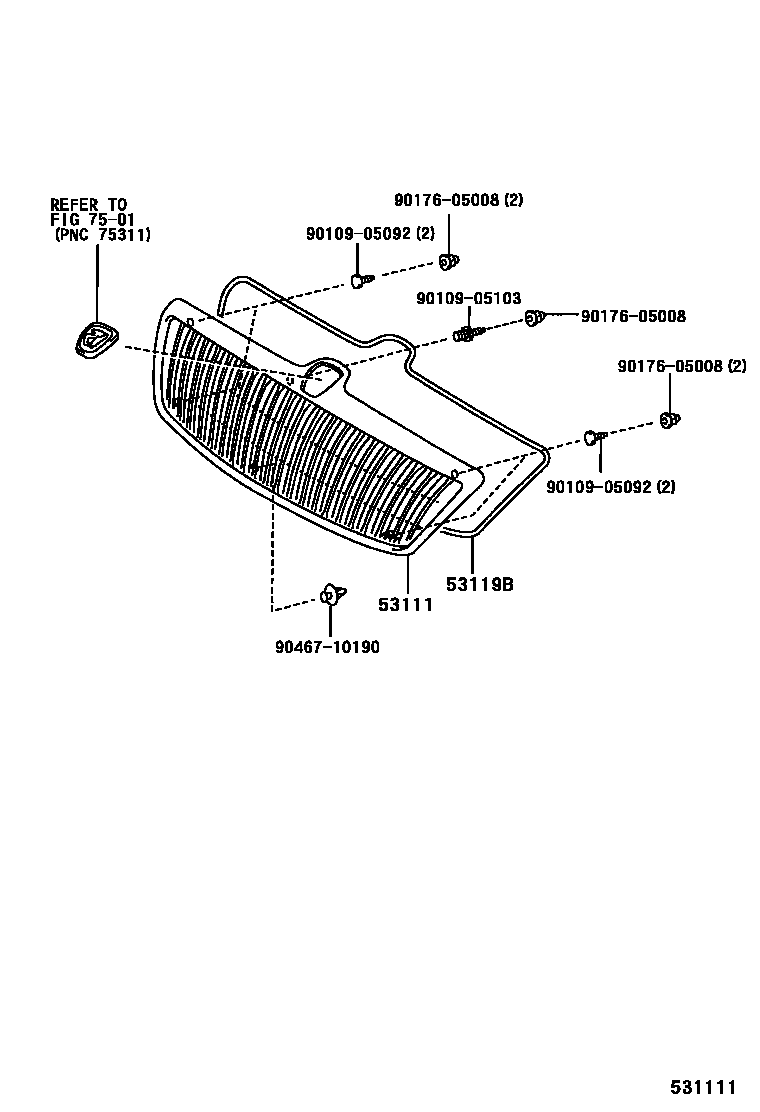

Parts diagram

53111GRILLE, RADIATOR

main53111-51050i200105-200404

main53111-51060i200205-200305

main53111-51080i200404

main53111-51090i200404

main53111-51100i200404

main53111-51110i200404-200512

53119BPROTECTOR, RADIATOR GRILLE

main53119-51050i200105

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010905092

main90109-05092

9010905103

main90109-05103

9017605008

main90176-05008

9046710190

main90467-10190

7 parts on this diagram · 2 diagrams in section

RADIATOR GRILLE for Toyota BREVIS

This section contains 7 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota BREVIS. Key components include: GRILLE, RADIATOR, PROTECTOR, RADIATOR GRILLE, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
