Toyota BREVIS — PARTIAL ENGINE ASSEMBLY

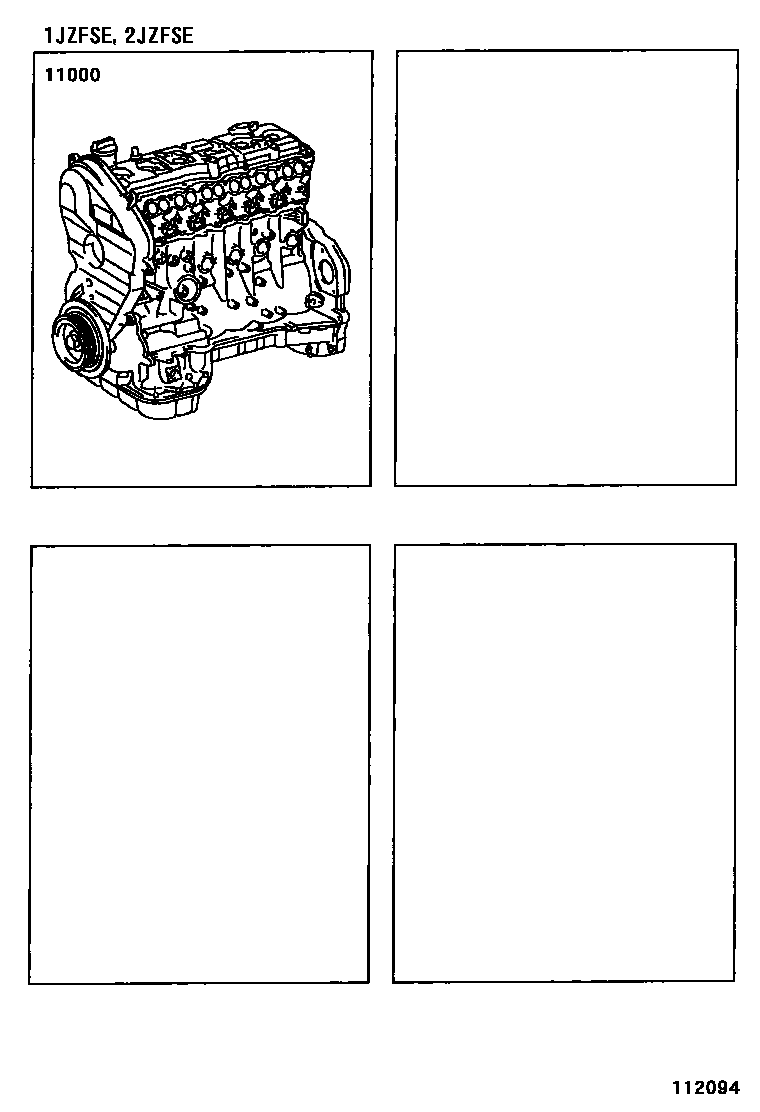

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-46520i200105

main19000-46620i200105-200108

main19000-46621i200108

main19000-46630i200110

1 parts on this diagram · 1 diagram in section
