Toyota BREVIS — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
WHITE PEARL CS.,065
SILVER ME.,1C0
DK.GRAY MC.,1E0
GRAY ME.,1D2
SILVER ME.,1F7
BLACK,202
BORDEAUX MC.,3P2
SHELL M.M.,3P7
TURQUOISE M.M.,770
DARK BLUE MC.,8P8
BLUE ME.,8N0
DK.BLUE MC.,8S6
87940MIRROR ASSY, OUTER REAR VIEW, LH
WHITE PEARL CS.,065
SILVER ME.,1C0
DK.GRAY MC.,1E0
GRAY ME.,1D2
SILVER ME.,1F7
BLACK,202
BORDEAUX MC.,3P2
SHELL M.M.,3P7
TURQUOISE M.M.,770
DARK BLUE MC.,8P8
BLUE ME.,8N0
DK.BLUE MC.,8S6
9010506260
main90105-06260
9321915014
main93219-15014

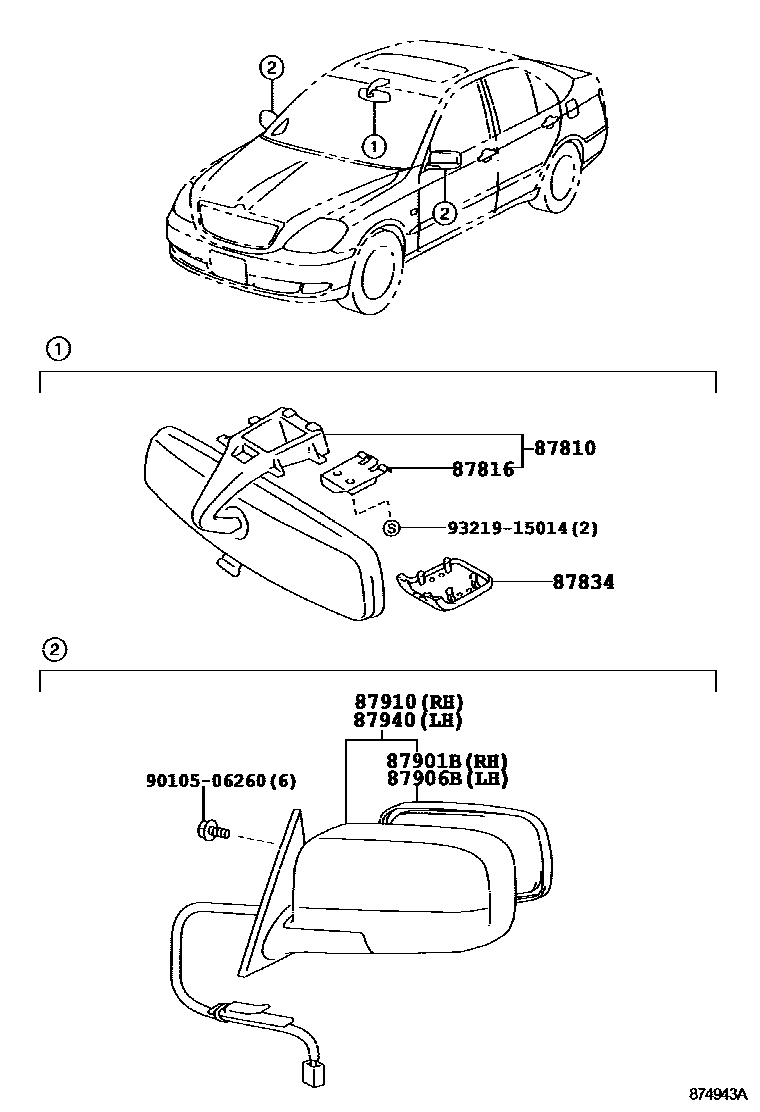

9 parts on this diagram · 1 diagram in section
MIRROR for Toyota BREVIS
This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota BREVIS. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
