Toyota BREVIS — METER

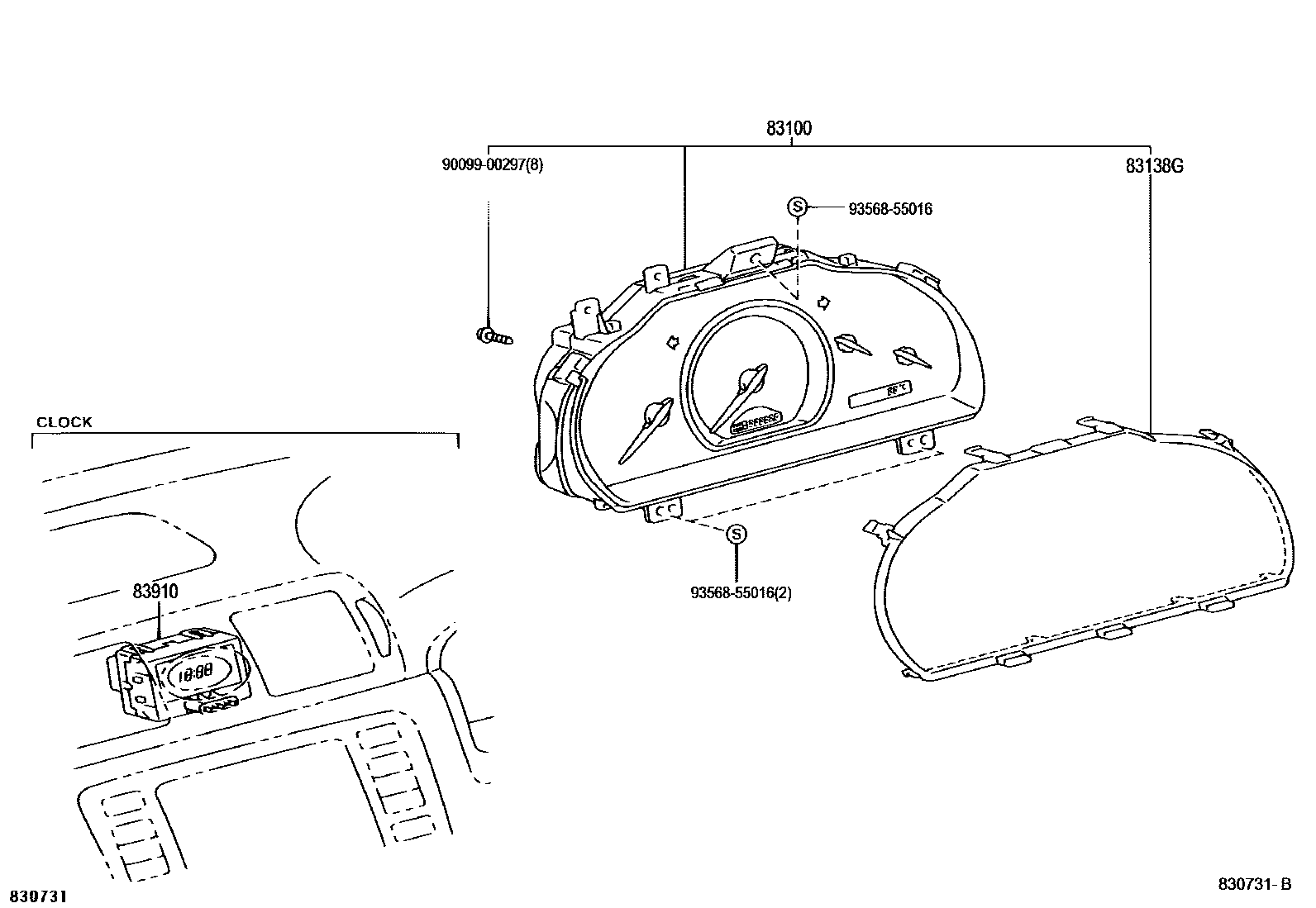

Parts diagram

83100METER ASSY, COMBINATION

main83800-51120i200105-200404

main83800-51121i200404-200512

main83800-51130i200105-200404

main83800-51131i200404-200512

main83800-51140i200105-200404

main83800-51141i200404-200512

main83800-51150i200105-200404

main83800-51160i200105-200404

main83800-51161i200404-200512

main83800-51170i200105-200404

main83800-51171i200404-200512

main83800-51180i200110-200404

main83800-51181i200404-200512

main83800-51190i200512

main83800-51200i200512

main83800-51210i200512

main83800-51220i200512

main83800-51230i200512

main83800-51240i200512

83138GGLASS, COMBINATION METER

main83852-51120i200105

83910CLOCK ASSY

main83910-51040i200105-200706

9009900297

main90099-00297

9356855016

main93568-55016

5 parts on this diagram · 1 diagram in section
