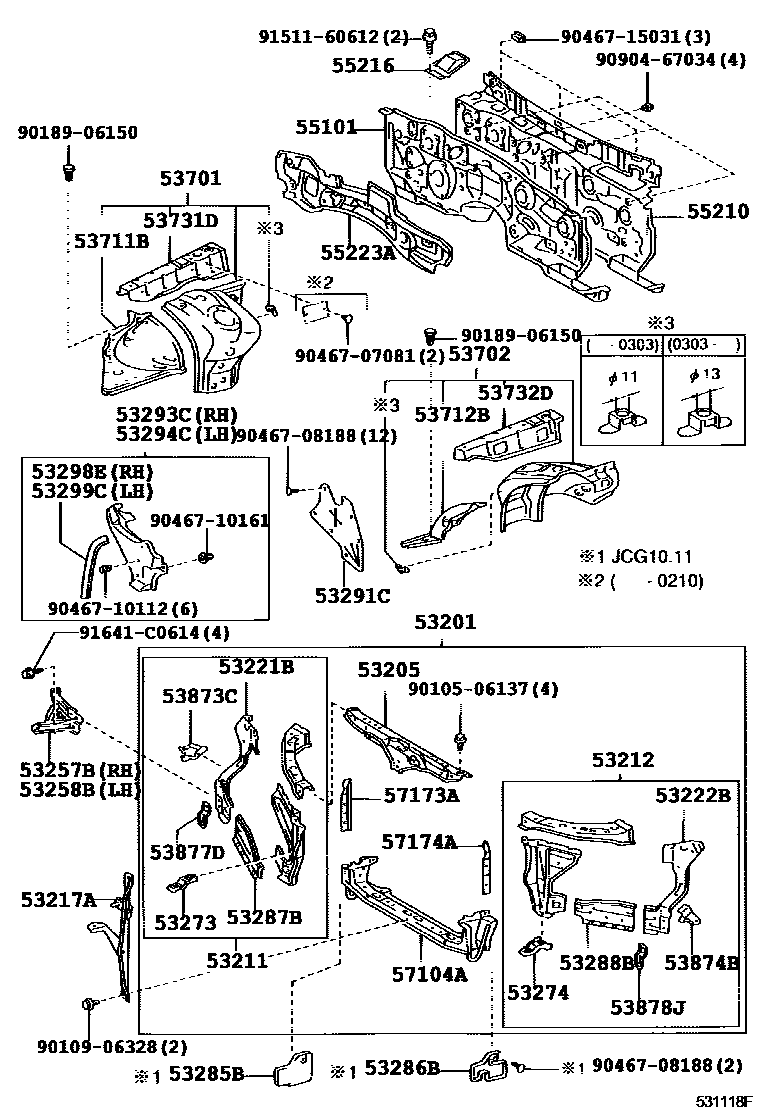

Toyota BREVIS — FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53217ABRACE, HOOD LOCK SUPPORT
53221BBRACE, RADIATOR SUPPORT APRON, RH
53222BBRACE, RADIATOR SUPPORT APRON, LH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53298ESEAL, RADIATOR SIDE, RH
53299CSEAL, RADIATOR SIDE, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53873CSTAY, FRONT WHEEL OPENING, FRONT RH
53874BSTAY, FRONT WHEEL OPENING, FRONT LH
53877DBRACKET, FRONT FENDER LINER, RH
53878JBRACKET, FRONT FENDER LINER, LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55216PAD, DASH PANEL INSULATOR, NO.4
55223AINSULATOR, DASH PANEL, OUTER
57104AMEMBER SUB-ASSY, FRONT CROSS
57173AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH
57174AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
9010506137
main90105-06137
9010906328
main90109-06328
9018906150
main90189-06150
9046707081
main90467-07081
9046708188
main90467-08188
9046710112
main90467-10112
9046710161
main90467-10161
9046715031
main90467-15031
9090467034
main90904-67034
9151160612
main91511-60612
91641C0614
main91641-C0614
48 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota BREVIS
This section contains 48 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota BREVIS. Key components include: SUPPORT SUB-ASSY, RADIATOR, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT, RADIATOR, RH, SUPPORT, RADIATOR, LH, BRACE, HOOD LOCK SUPPORT.
