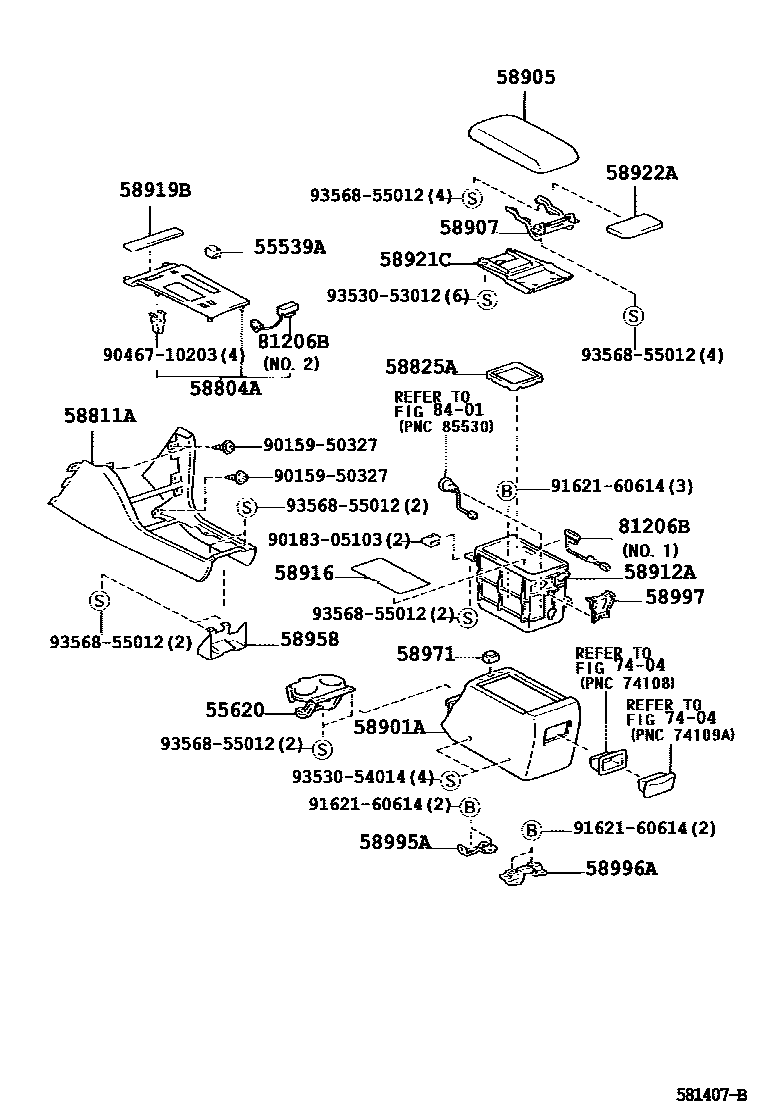

Toyota BREVIS — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
GRAY,TRIM1#,21
RED,TRIM21
BROWN,TRIM0#
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
GRAY,TRIM1#,21
RED,TRIM2#
BROWN,TRIM0#
58811ABOX, CONSOLE, FRONT
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58825APOCKET, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58912ABOX, REAR CONSOLE
58916MAT, BOX BOTTOM
58919BPLATE, CONSOLE BOX
58921CPLATE, BOX, UPPER NO.1
58922APLATE, BOX, UPPER NO.2
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58958COVER, CONSOLE COMPARTMENT DOOR MOULDING
58971LOCK, CONSOLE COMPARTMENT DOOR
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
7404
8401
9015950327
main90159-50327
9018305103
main90183-05103
9046710203
main90467-10203
9162160614
main91621-60614
9353053012
main93530-53012
9353054014
main93530-54014
9356855012
main93568-55012
28 parts on this diagram · 1 diagram in section
