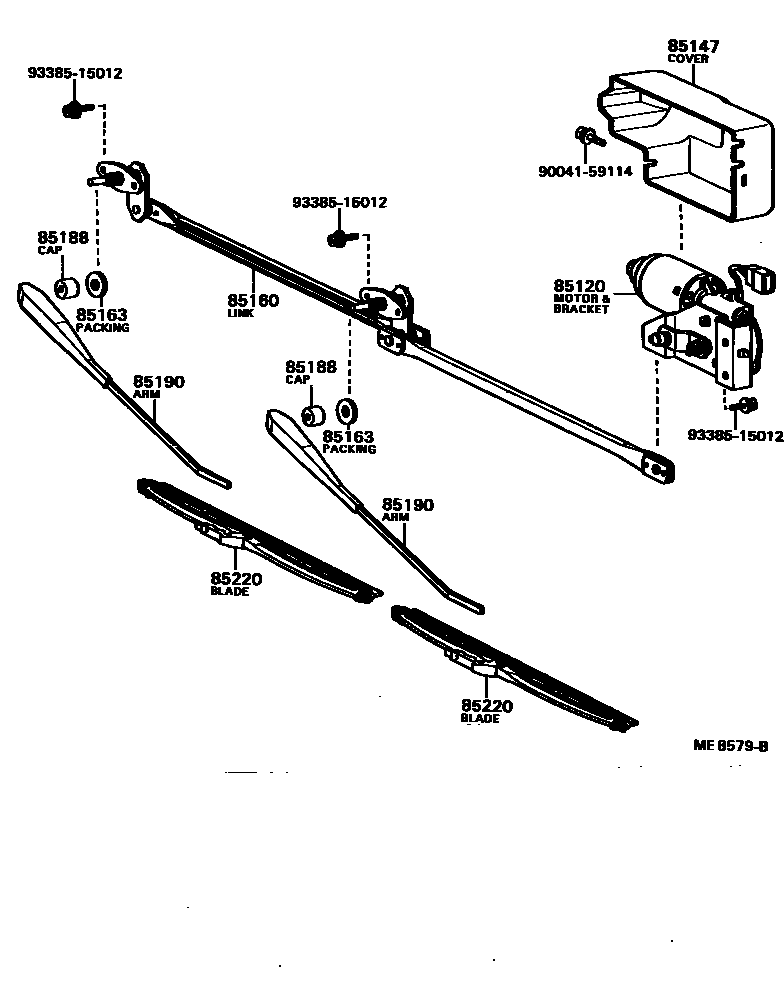

Toyota BLIZZARD — WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-87606i198003-198404

85147COVER, WINDSHIELD WIPER MOTOR

main85147-87603i198003-198404

85160LINK ASSY, WINDSHIELD WIPER

main85160-87603i198003-198404

85163PACKING, WINDSHIELD WIPER PIVOT

main85163-87601×2i198003-198404

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-55010×2i198003-198404

85190ARM ASSY, WINDSHIELD WIPER

main85190-87603×2i198003-198404

85220BLADE ASSY, WINDSHIELD WIPER

main85220-87601×2i198003-198404

9004159114

main90041-59114

9338515012

main93385-15012

9 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota BLIZZARD

This section contains 9 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota BLIZZARD. Key components include: MOTOR AND BRACKET ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER MOTOR, LINK ASSY, WINDSHIELD WIPER, PACKING, WINDSHIELD WIPER PIVOT, CAP, WINDSHIELD WIPER PIVOT, NO.1.
