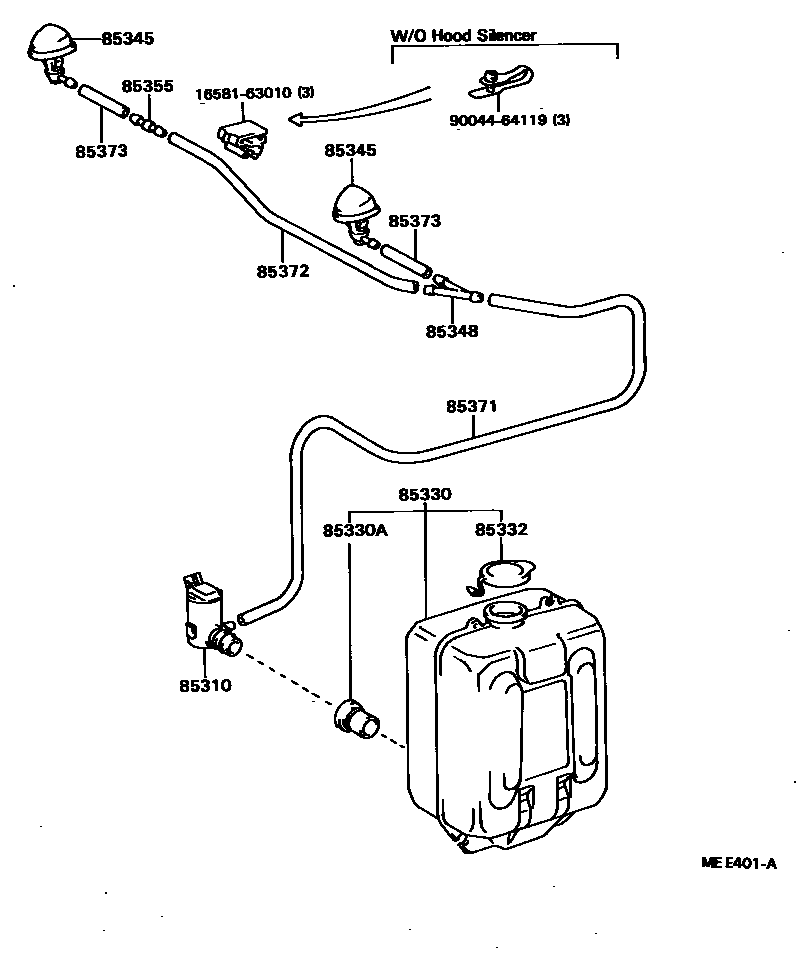

Toyota BLIZZARD — WINDSHIELD WASHER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iLD2#198405-199002

85330JAR ASSY, WINDSHIELD WASHER

main85330-87603iLD2#198405-199002

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iLD2#198405-199002

85332CAP, WINDSHIELD WASHER JAR

main85332-30050iLD2#198405-199002

85345NOZZLE, WINDSHIELD WASHER

main85035-87603×2iLD2#198405-199002

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iLD2#198405-199002

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250iLD2#198708

main85031-14080iLD2#198405-198708

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iLD2#198405-199002

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iLD2#198405-199002

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013×2iLD2#198405-199002

1658163010CLAMP, HOSE(FOR WATER HOSE)

main16581-63010

9004464119

main90044-64119

12 parts on this diagram · 1 diagram in section
