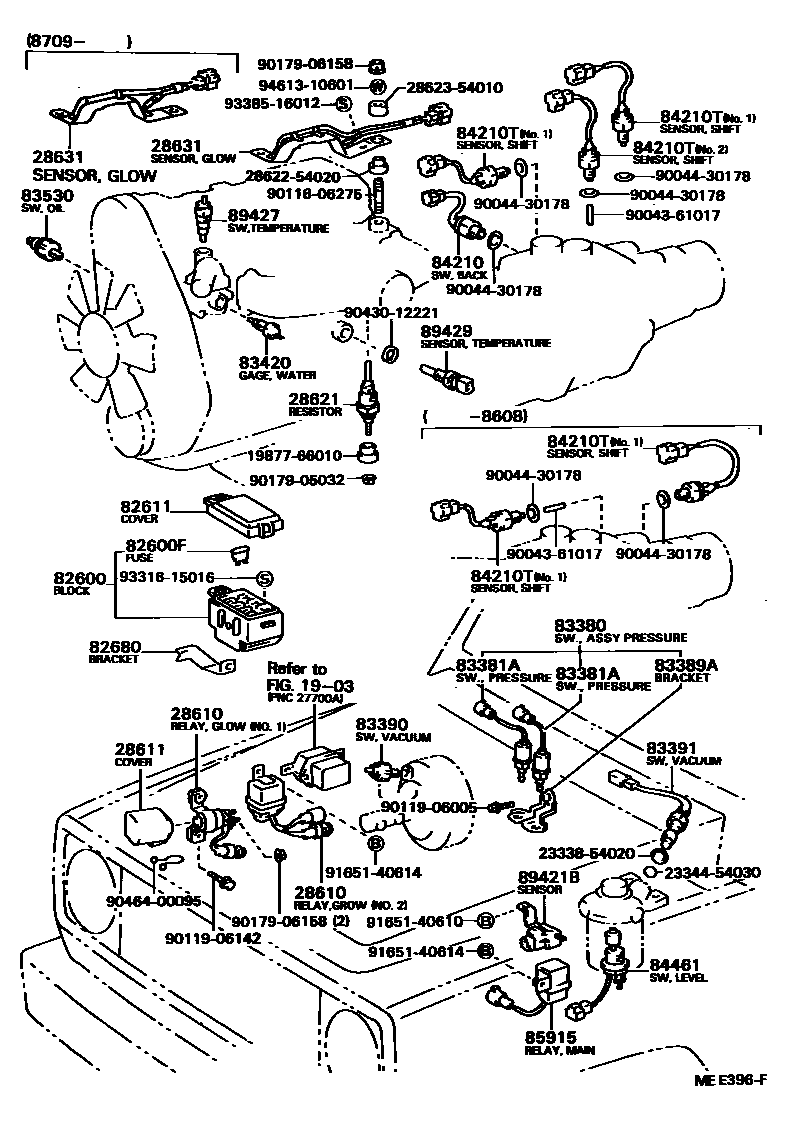

Toyota BLIZZARD — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

1903

28610RELAY ASSY, INTAKE HEATER OR GLOW PLUG

main28610-54080i2L#..LD2#198405-198709

NO.1

main28610-54090i2L#..LD2#198405-198709

NO.2

main28610-54250i2L#..LD2#198709-199002

NO.2

main28610-64060i2L#..LD2#198709-199002

NO.1

28611COVER, GLOW PLUG RELAY

main28611-54011i2L#..LD2#198405-198709

main28611-55010i2L#..LD2#198709-199002

28621RESISTOR, GLOW PLUG

main28621-54031i2L..LD20198405-198911

sub28621-64011

main28621-54060i2LT..LD20198409-198412

main28621-54070i2LT..LD2#198412-199002

sub28621-64011

28631SENSOR, GLOW PLUG CURRENT

main28631-54010i2L#..LD2#198405-198709

main28631-54080i2L#..LD2#198709-199002

82600BLOCK ASSY, FUSE

main82600-87610iLD2#198405-199002

COWL SIDE,NO.1

main82610-87601iLD21198709-198910

COWL SIDE,NO.2

main82610-87620iLD21198910-199002

COWL SIDE,NO.2

main82610-90K02iLD2#198608-199002

ENGINE ROOM SIDE

82600FFUSE, FUSE BLOCK

main90982-07011iLD2#198405-199002

main90982-09002×2iLD2#198405-199002

main90982-09003×10iLD2#198405-199002

main90982-09004iLD2#198608-199002

main90982-09005×2iLD2#198405-199002

82611COVER, FUSE BLOCK

main82611-90K00iLD2#198608-199002

82680BRACKET ASSY, FUSE BLOCK

main87499-87601iLD2#198608-199002

83380SWITCH ASSY, PRESURE

main83380-87601iLD2#..TD198409-199002

83381ASWITCH, PRESSURE

main83381-30010iLD2#..TD198409-199002

1POLE(FEMALE)

main83381-30030iLD2#..TD198409-199002

1POLE(MALE)

83389ABRACKET, PRESSURE SWITCH

main83389-30010iLD2#..TD198409-199002

83390SWITCH ASSY, VACUUM WARNING

main83390-30020iLD2#198405-199002

83391SWITCH, VACUUM

main83391-22060iLD20198405-198409

sub83391-35040

main83391-32020iLD2#198409-199002

sub83391-35040

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iLD2#198405-199002

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30060iLD2#198502-199002

sub83530-60030

main83530-36011iLD20198405-198502

84210SWITCH ASSY, BACK-UP LAMP

main84210-87601iLD2#198405-198903

main84210-87604iLD2#198903-199002

sub84210-87605

84210TSENSOR ASSY, SHIFT POINT

main84220-87603×2iLD20198405-198509

NO.1

main84220-87604×2iLD2#198509-198608

NO.1

main84220-87605iLD2#198608-199002

NO.2

main84220-87606×2iLD2#198608-199002

NO.1

84461SWITCH, LEVEL WARNING

main84461-14030iLD2#198405-198608

main84461-35030iLD2#198608-199002

85915RELAY, MAIN

main85915-14050iLD2#198405-199002

89421BSENSOR, VACUUM

main89420-60020iLD21198709-199002

89427SWITCH, TEMPERATURE DETECT

main83430-96440iLD2#198405-199002

W/COOLER

sub89428-60040

89429SENSOR, OIL TEMPERATURE

main89422-30020iLD2#198405-199002

sub89422-12010

1987766010

main19877-66010

2333854020GASKET(FOR WARNING SWITCH)

main23338-54020

2334454030GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-54030

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

9004361017

main90043-61017

9004430178

main90044-30178

9011606275

main90116-06275

9011906005

main90119-06005

9011906142

main90119-06142

9017905032

main90179-05032

9017906158

main90179-06158

9043012221

main90430-12221

9046400095

main90464-00095

9165140610

main91651-40610

9165140614

main91651-40614

9331615016

main93316-15016

9338516012

main93385-16012

9461310601

main94613-10601

42 parts on this diagram · 4 diagrams in section
