Toyota BLIZZARD — SPEAKER

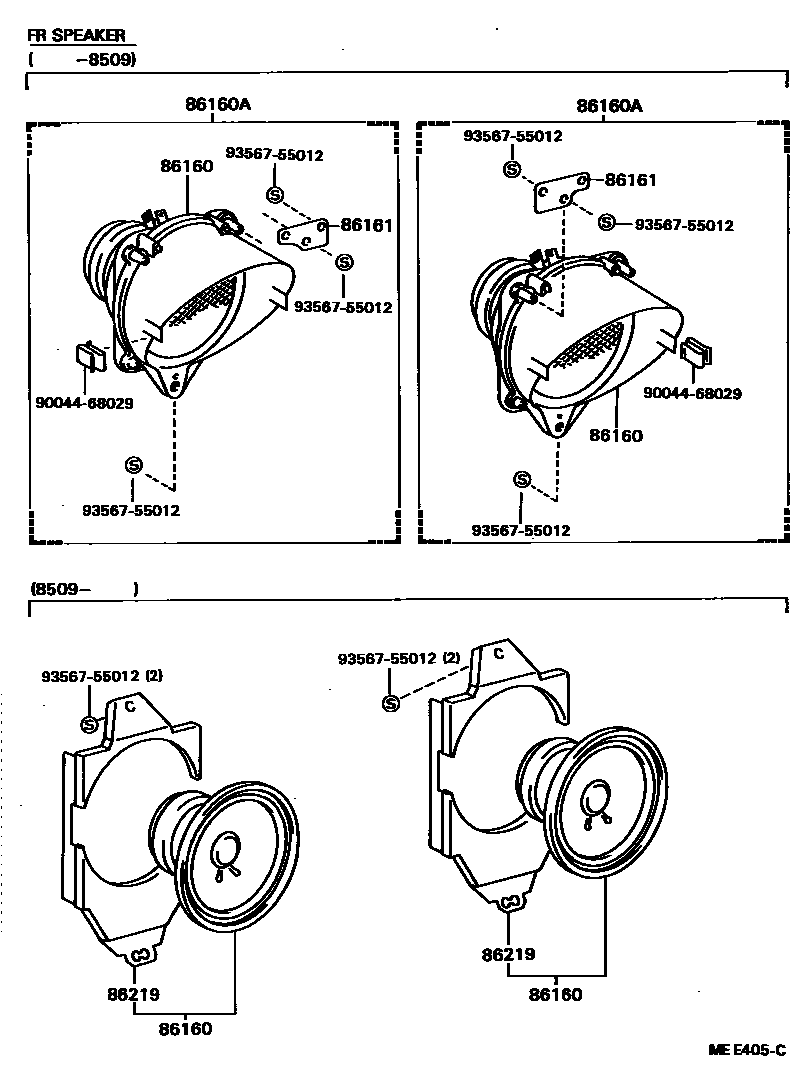

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
main86150-87604×2i198405-198509
main86160-87614×2i198509-199002
86160ASPEAKER SET, FRONT
main86150-29075i198405-198509
86161BRACKET, SPEAKER, FRONT NO.1
main86219-87602×2i198405-198509
86219BRACKET, STEREO COMPONENT SPEAKER, NO.1
main86219-87603×2i198509-199002
9004468029
main90044-68029
9356755012
main93567-55012

6 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota BLIZZARD

This section contains 14 genuine Toyota parts for the SPEAKER system of the Toyota BLIZZARD. Key components include: INSIDE TRIM BOARD, SPEAKER ASSY, FRONT NO.1, SPEAKER SET, FRONT, SPEAKER ASSY, REAR, SPEAKER SET, REAR.
