Toyota BLIZZARD — SIDE WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-87602i198405-198911

main62711-87604i198405-198911

main62711-87606i198409-199002

main62711-87608i198810-199002

*TEM,T=4.0,BRONZE

62712GLASS, QUARTER WINDOW, LH

main62712-87602i198405-198911

main62712-87604i198405-198911

main62712-87605i198409-199002

main62712-87608i198810-199002

*TEM,T=4.0,BRONZE

62731CHINGE, QUARTER WINDOW, RH

main62731-87602i198405-199002

62732PLATE, QUARTER OR SIDE WINDOW HINGE FINISH

main62732-87001i198405-198509

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62733-12010i198405-198509

main62733-87201i198509-199002

62734SPACER, QUARTER WINDOW HINGE

main62734-12010i198405-198509

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-87603i198405-198509

main62741-87607i198509-199002

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-87603i198405-198509

main62741-87607i198509-199002

62884AGUARD, QUARTER WINDOW, RH

main62884-87601i198405-198911

62885AGUARD, QUARTER WINDOW, LH

main62884-87601i198405-198911

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-87601i198405-199002

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-87601i198405-199002

9004159114

main90041-59114

9004159224

main90041-59224

9323056012

main93230-56012

9324056010

main93240-56010

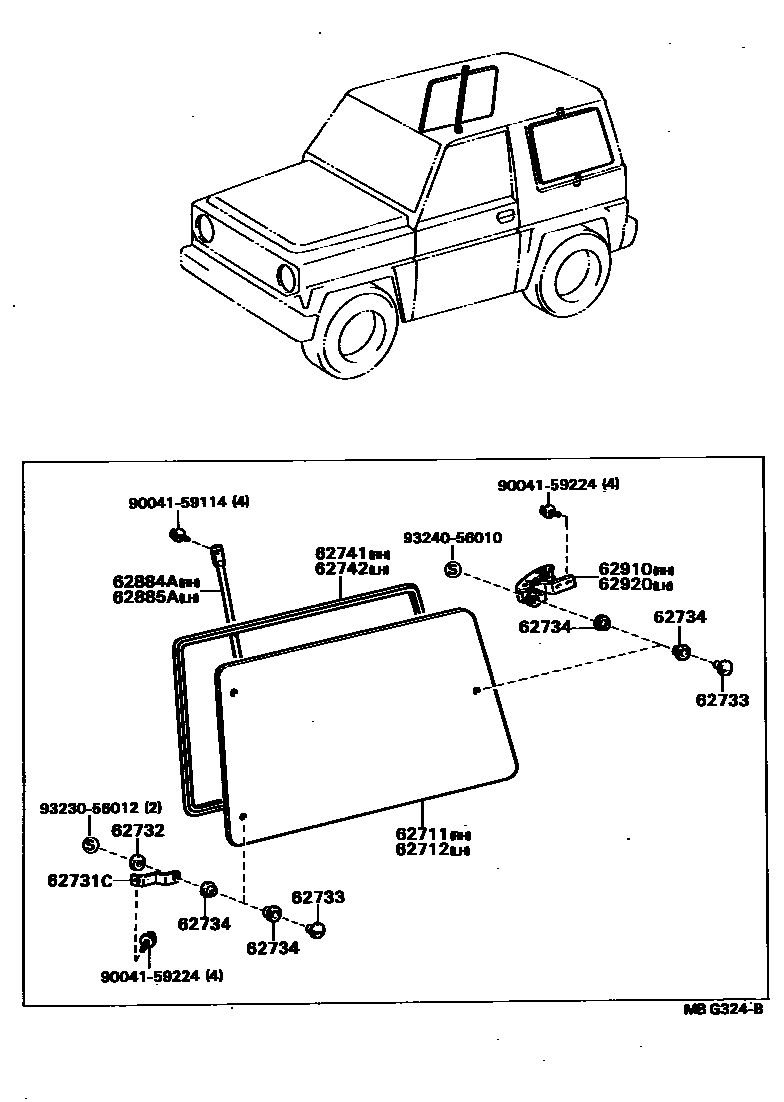

16 parts on this diagram · 2 diagrams in section

SIDE WINDOW for Toyota BLIZZARD

This section contains 20 genuine Toyota parts for the SIDE WINDOW system of the Toyota BLIZZARD. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, HINGE, QUARTER WINDOW, RH, PLATE, QUARTER OR SIDE WINDOW HINGE FINISH, RETAINER, QUARTER OR SIDE WINDOW HINGE.
