Toyota BLIZZARD — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-87205i198003-198404

main33542-87601i198210-198404

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-87607i198003-198210

main33506-87608i198210-198404

main33506-87609i198210-198404

33506JSPRING(FOR SHIFT LEVER STOPPER PIN)

main90045-08145i198003-198404

33506PPIN, SHIFT LEVER STOPPER

main33566-87601i198003-198404

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90045-02025i198003-198012

main90045-02035i198012-198404

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33541-87606i198003-198404

main33541-87608i198003-198404

33553ARING, SNAP (FOR SHIFT LEVER SPRING SHEET)

main90045-21030i198003-198404

33555BOOT, SHIFT LEVER

main33555-87602i198003-198404

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-87601i198210-198404

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33272-87301i198003-198404

9161160825

main91611-60825

11 parts on this diagram · 2 diagrams in section

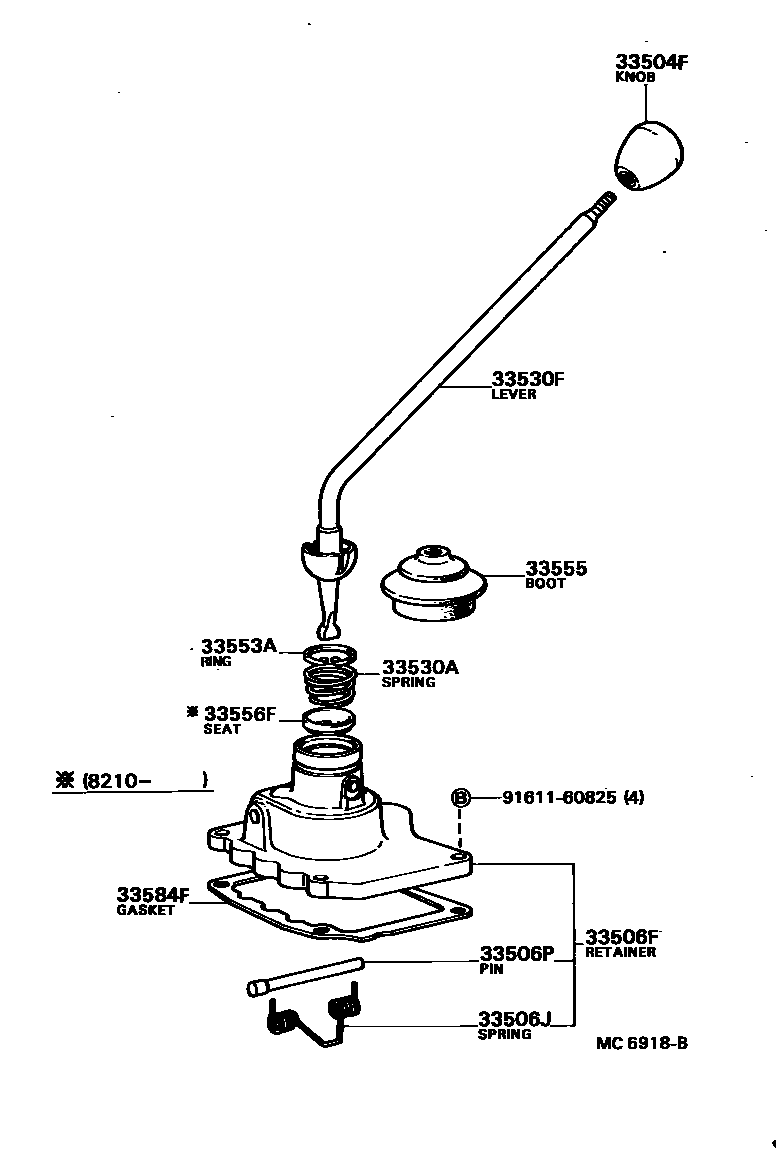

SHIFT LEVER & RETAINER for Toyota BLIZZARD

This section contains 19 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota BLIZZARD. Key components include: PIN, LEVER LOCK (FOR FLOOR SHIFT), KNOB SUB-ASSY, SHIFT LEVER, RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT), SPRING(FOR SHIFT LEVER STOPPER PIN), PIN, SHIFT LEVER STOPPER.
