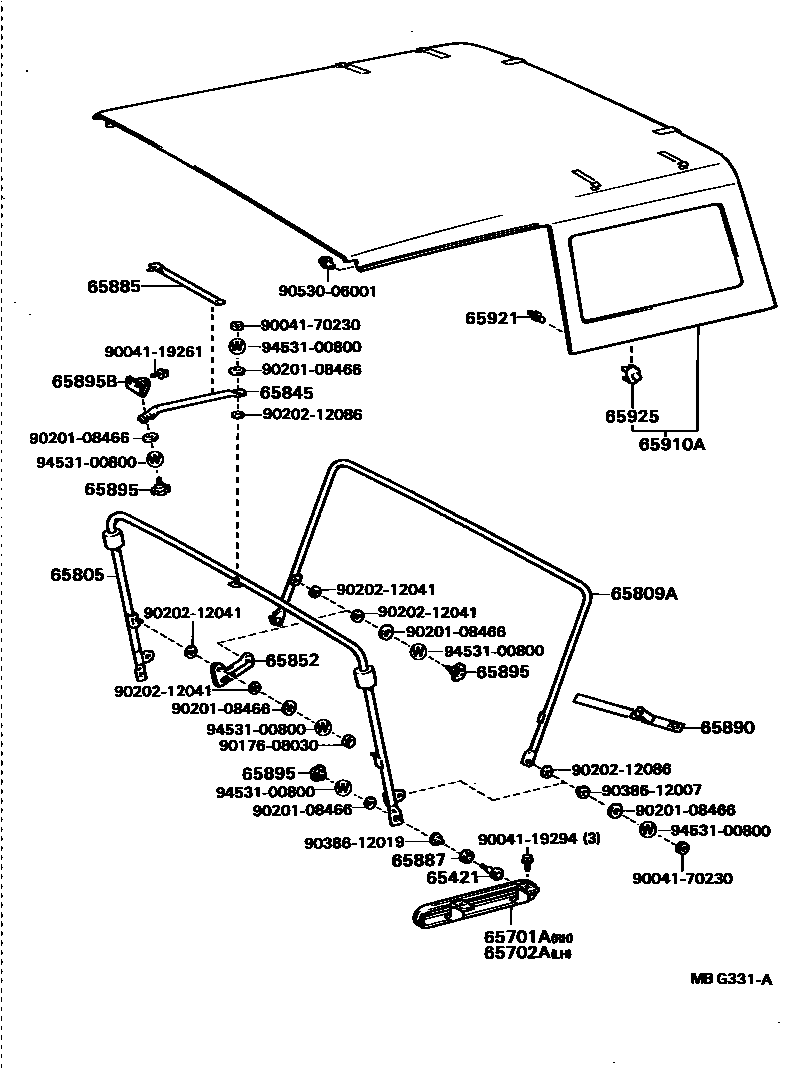

Toyota BLIZZARD — REAR BODY TOP CURTAIN & ROOF PANEL

65421PIN, JOINT

main65421-87602×2i198405-198911

65701ARAIL SUB-ASSY, REAR TARPAULIN BOW, RH

main65701-87601i198405-198911

65702ARAIL SUB-ASSY, REAR TARPAULIN BOW, LH

main65702-87601i198405-198911

65805BOW SUB-ASSY, CENTER TOP COVER TARPAULIN, A

main65805-87605i198405-198911

65809ABOW SUB-ASSY, REAR TOP COVER TARPAULIN

main65809-87604i198405-198911

65845STAY, REAR TOP COVER TARPAULIN BOW

main65084-87603i198405-198911

65852STOPPER, REAR TOP COVER TARPAULIN BOW

main65852-87602×2i198405-198911

65885BAND, TARPAULIN BOW SET

main65885-87601i198405-198911

65887WASHER, REAR VINYL TOP PIPE RAIL

main65887-87601i198405-198911

65890STRAP ASSY, TARPAULIN BOW

main65890-87603i198405-198911

65895HANDLE, CENTER TARPAULIN BOW STAY CATCH

main65895-87602×2i198405-198911

RAIL X BOW

main65895-87604i198408-198911

ROLL BAR X STAY

main65895-90800×3i198405-198408

ROLL BAR X STAY,STOPPER X BOW

65895BBRACKET, TOP COVER TARPAULIN BOW, NO.1

main65895-87601i198405-198911

65910ATARPAULIN ASSY

main65910-87656-01i198405-198810

BLACK,BLACK

main65910-87656-08i198405-198810

WHITE,WHITE

main65910-87661-01i198810-198911

BLACK,BLACK

main65910-87661-08i198810-198911

WHITE,WHITE

65921FASTENER, VINYL TOP

main65921-87604×20i198405-198911

65925HOOK, TARPAULIN SIDE, MALE

main65926-87602×20i198501-198911

9004119261

main90041-19261

9004119294

main90041-19294

9004170230

main90041-70230

9017608030

main90176-08030

9020108466

main90201-08466

9020212041

main90202-12041

9020212086

main90202-12086

9038612007

main90386-12007

9038612019

main90386-12019

9053006001

main90530-06001

9453100800

main94531-00800

26 parts on this diagram · 2 diagrams in section

REAR BODY TOP CURTAIN & ROOF PANEL for Toyota BLIZZARD

This section contains 26 genuine Toyota parts for the REAR BODY TOP CURTAIN & ROOF PANEL system of the Toyota BLIZZARD. Key components include: PIN, JOINT, RAIL SUB-ASSY, REAR TARPAULIN BOW, RH, RAIL SUB-ASSY, REAR TARPAULIN BOW, LH, BOW SUB-ASSY, CENTER TOP COVER TARPAULIN, A, BOW SUB-ASSY, REAR TOP COVER TARPAULIN.
