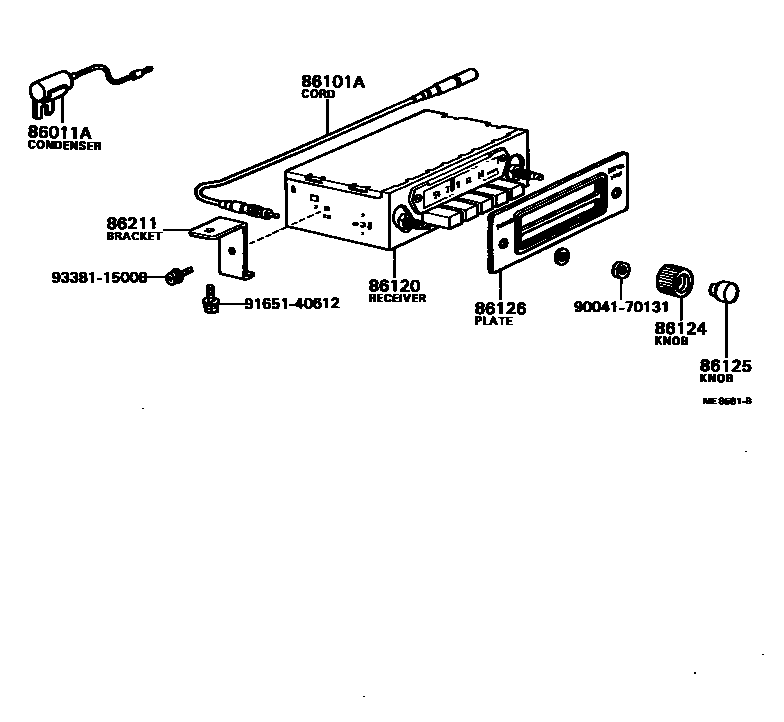

Toyota BLIZZARD — RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90049-42038i198003-198404

86101ACORD SUB-ASSY, ANTENNA, NO.1

main86101-87602i198003-198404

86120RECEIVER ASSY, RADIO

main86102-87605i198003-198404

86124KNOB, RADIO RECEIVER CONTROL

main86223-87501×2i198003-198404

86125KNOB, RADIO RECEIVER SWITCH

main86223-87502×2i198003-198404

86126PLATE, RADIO RECEIVER

main86221-87206i198003-198404

86211BRACKET, RADIO, NO.1

main86215-87604i198003-198404

main86215-87607i198003-198404

9004170131

main90041-70131

9165140612

main91651-40612

9338115008

main93381-15008

10 parts on this diagram · 1 diagram in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota BLIZZARD

This section contains 10 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota BLIZZARD. Key components include: CONDENSER, RADIO SETTING, CORD SUB-ASSY, ANTENNA, NO.1, RECEIVER ASSY, RADIO, KNOB, RADIO RECEIVER CONTROL, KNOB, RADIO RECEIVER SWITCH.
