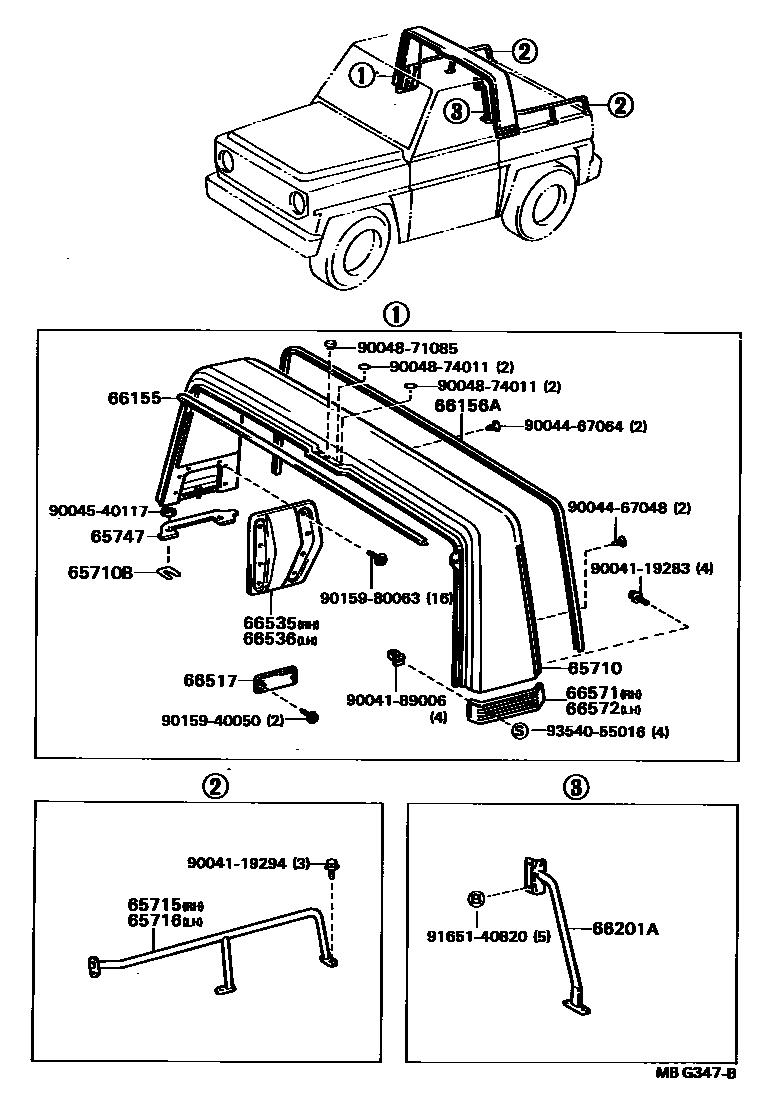

Toyota BLIZZARD — PROTECTOR PIPE, ROLL BAR & HANDRAIL
65710BSHIM(FOR ROLL BAR)
65715BAR SUB-ASSY, ROLL SIDE, RH
65716BAR SUB-ASSY, ROLL SIDE, LH
65747PACKING, ROLL BAR
RH
LH
66155PROTECTOR, ROLL OVER EDGE, FRONT
GRAY,GRAY
66156APROTECTOR, ROLL OVER EDGE, REAR
GRAY,GRAY
GRAY
66201ABAR SUB-ASSY, REAR PILLAR CORNER
66517COVER, ROLL OVER, LOWER INNER
66535BRACKET, ROLL OVER MOUNTING, NO.3 RH
66536BRACKET, ROLL OVER MOUNTING, NO.3 LH
66571GARNISH, ROLL OVER, RH
66572GARNISH, ROLL OVER, LH
9004119283
main90041-19283
9004119294
main90041-19294
9004189006
main90041-89006
9004467048
main90044-67048
9004467064
main90044-67064
9004540117
main90045-40117
9004871085
main90048-71085
9004874011
main90048-74011
9015940050
main90159-40050
9015980063
main90159-80063
9165140820
main91651-40820
9354055016
main93540-55016
25 parts on this diagram · 2 diagrams in section
PROTECTOR PIPE, ROLL BAR & HANDRAIL for Toyota BLIZZARD
This section contains 33 genuine Toyota parts for the PROTECTOR PIPE, ROLL BAR & HANDRAIL system of the Toyota BLIZZARD. Key components include: ROOF PANEL & BACK PANEL, BAR SUB-ASSY, ROLL, SHIM(FOR ROLL BAR), BAR SUB-ASSY, ROLL SIDE, RH, BAR SUB-ASSY, ROLL SIDE, LH.
