Toyota BLIZZARD — PROTECTOR PIPE, ROLL BAR & HANDRAIL

61369SPACER, REAR SIDE PANEL

main61369-87601i198110-198404

65710BAR SUB-ASSY, ROLL

main65704-87603i198003-198110

main65704-87605i198110-198404

main65704-87606i198110-198404

65711CONNECTOR, ROLL BAR

main65711-87602i198003-198404

65713SHEET, ROLL BAR CONNECTOR

main65713-87601i198003-198404

65715BAR SUB-ASSY, ROLL SIDE, RH

main65705-87604i198003-198404

main65705-87605i198110-198404

FOLDING TYPE

main65705-87606i198110-198404

65716BAR SUB-ASSY, ROLL SIDE, LH

main65706-87604i198003-198404

main65706-87605i198110-198404

FOLDING TYPE

main65706-87606i198110-198404

65747PACKING, ROLL BAR

main65747-87601i198003-198404

9004119261

main90041-19261

9004119286

main90041-19286

9166160616

main91661-60616

10 parts on this diagram · 1 diagram in section

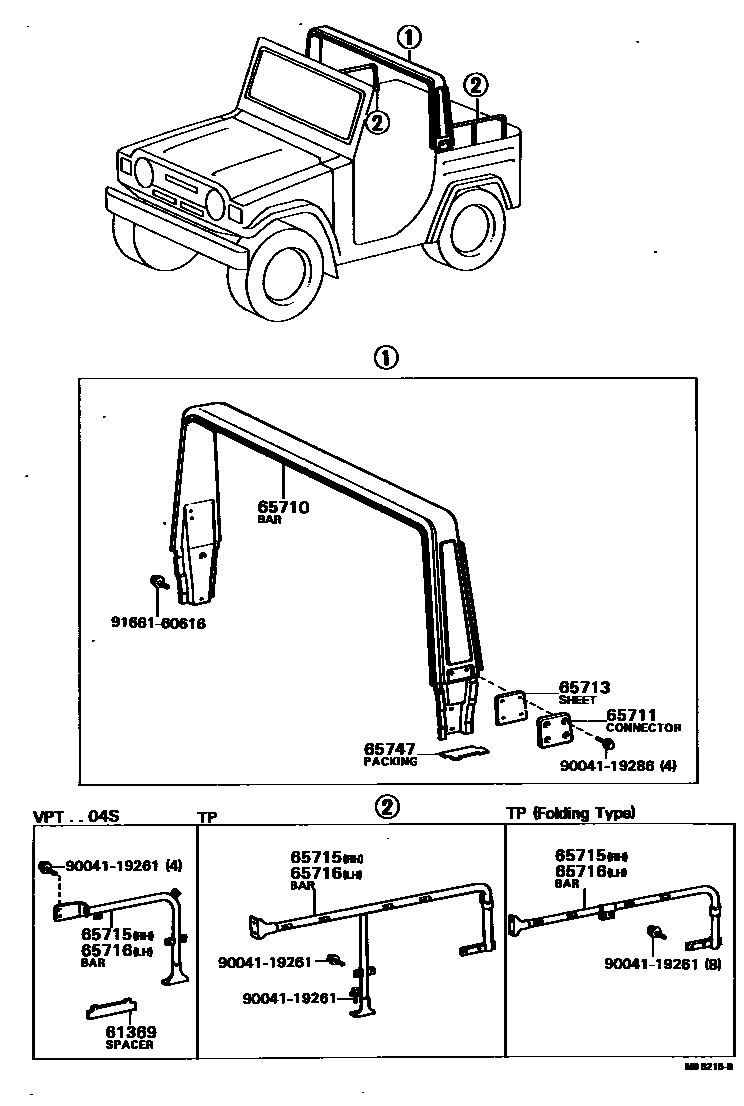

PROTECTOR PIPE, ROLL BAR & HANDRAIL for Toyota BLIZZARD

This section contains 10 genuine Toyota parts for the PROTECTOR PIPE, ROLL BAR & HANDRAIL system of the Toyota BLIZZARD. Key components include: SPACER, REAR SIDE PANEL, BAR SUB-ASSY, ROLL, CONNECTOR, ROLL BAR, SHEET, ROLL BAR CONNECTOR, BAR SUB-ASSY, ROLL SIDE, RH.
