Toyota BLIZZARD — PARKING BRAKE & CABLE

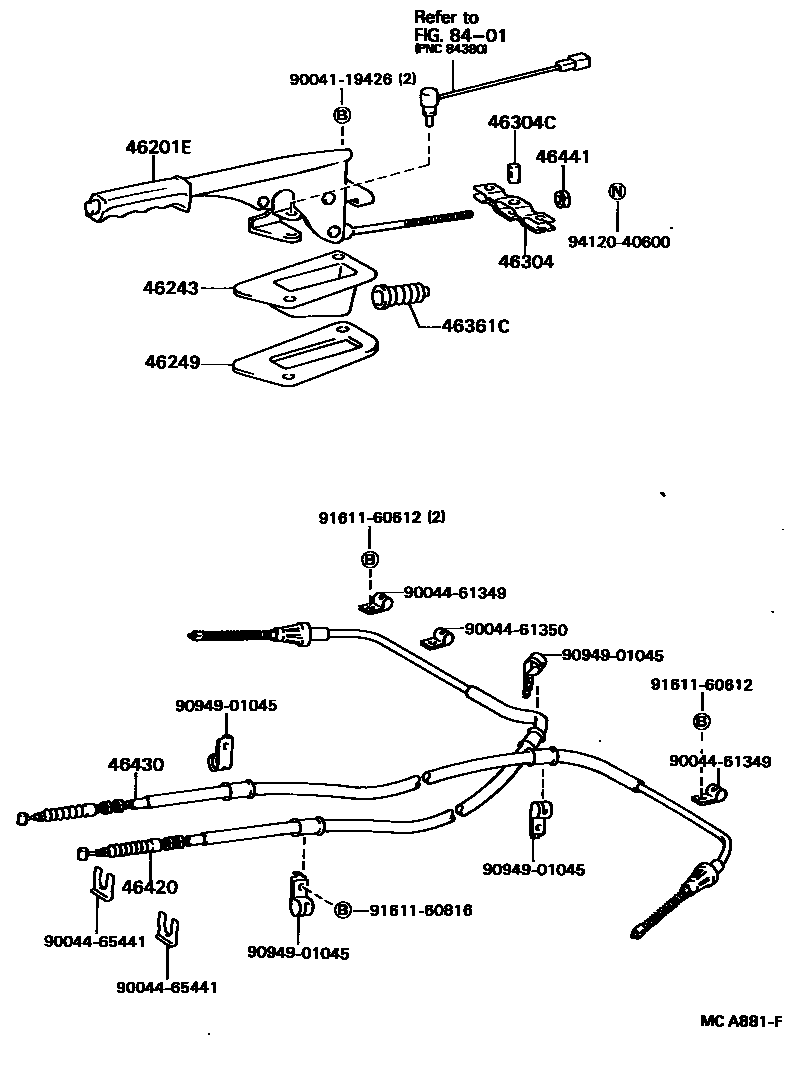

Parts diagram

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-87605i198405-198810

main46201-87607i198810-198910

main46201-87610i198910-199002

46243COVER, PARKING BRAKE LEVER

main46243-87602i198405-199002

46249SHIELD, PARKING BRAKE HOLE

main46249-87601i198405-199002

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-87601i198405-199002

46304CPIN(FOR PARKING BRAKE EQUALIZER)

main46343-87601i198405-199002

46361CGROMMET(FOR PARKING BRAKE PULL ROD)

main46432-87601i198405-199002

46420CABLE ASSY, PARKING BRAKE, NO.2

main46410-87609i198405-198810

main46410-87615i198810-199002

46430CABLE ASSY, PARKING BRAKE, NO.3

main46420-87601i198405-198810

main46420-87607i198810-199002

46441NUT, WIRE ADJUSTING, NO.1

main46441-87601i198405-198810

main94120-40600i198810-199002

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004119426

main90041-19426

9004461349

main90044-61349

9004461350

main90044-61350

9004465441

main90044-65441

9094901045

main90949-01045

9161160612

main91611-60612

9161160816

main91611-60816

9412040600

main94120-40600

18 parts on this diagram · 1 diagram in section

PARKING BRAKE & CABLE for Toyota BLIZZARD

This section contains 18 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota BLIZZARD. Key components include: LEVER SUB-ASSY, PARKING BRAKE, COVER, PARKING BRAKE LEVER, SHIELD, PARKING BRAKE HOLE, EQUALIZER SUB-ASSY, PARKING BRAKE, PIN(FOR PARKING BRAKE EQUALIZER).
