Toyota BLIZZARD — MOUNTING

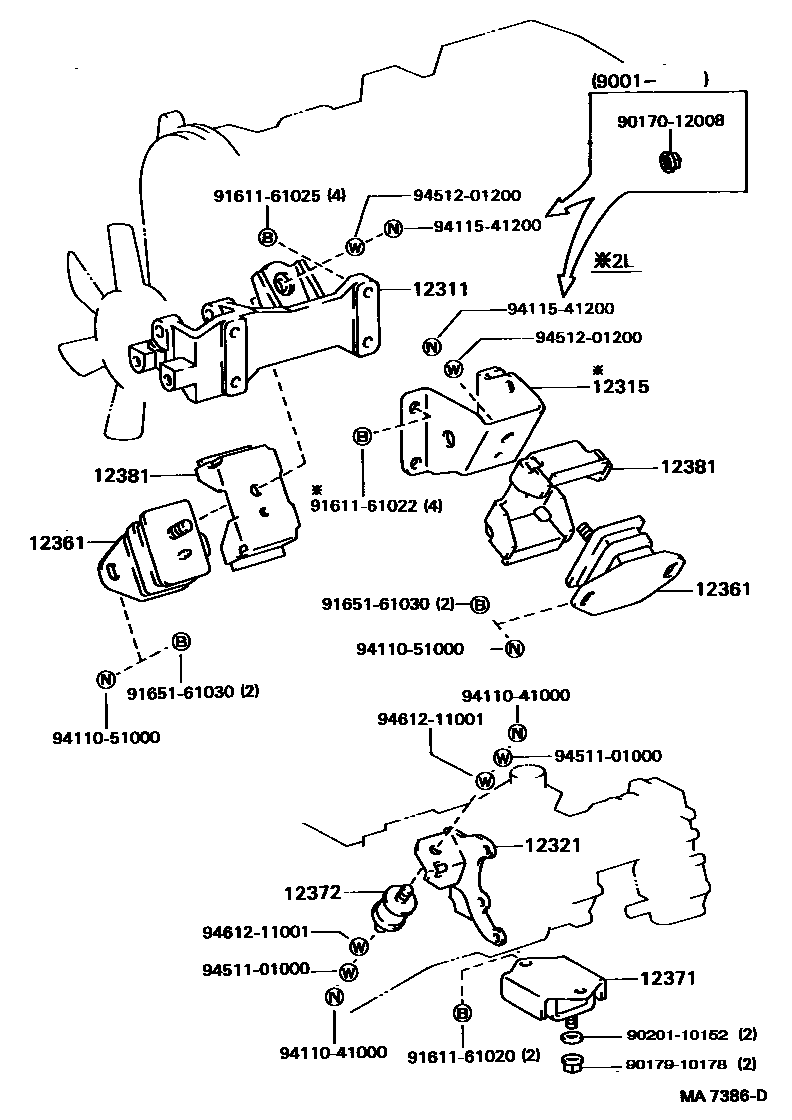

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54090i198405-199002

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-54020i198405-198608

main12312-54021i198608-198911

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12322-87613i198405-199002

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54050×2i198405-199001

main12361-54051×2i199001-199002

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-87604i198405-199002

12372INSULATOR, ENGINE MOUNTING, REAR NO.2

main12372-87603i198405-199002

12381STABILIZER, ENGINE MOUNTING

main12381-54010×2i198405-199002

9017012008

main90170-12008

9017910178

main90179-10178

9020110152

main90201-10152

9161161020

main91611-61020

9161161022

main91611-61022

9161161025

main91611-61025

9165161030

main91651-61030

9411041000

main94110-41000

9411051000

main94110-51000

9411541200

main94115-41200

9451101000

main94511-01000

9451201200

main94512-01200

9461211001

main94612-11001

20 parts on this diagram · 1 diagram in section

MOUNTING for Toyota BLIZZARD

This section contains 20 genuine Toyota parts for the MOUNTING system of the Toyota BLIZZARD. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1.
