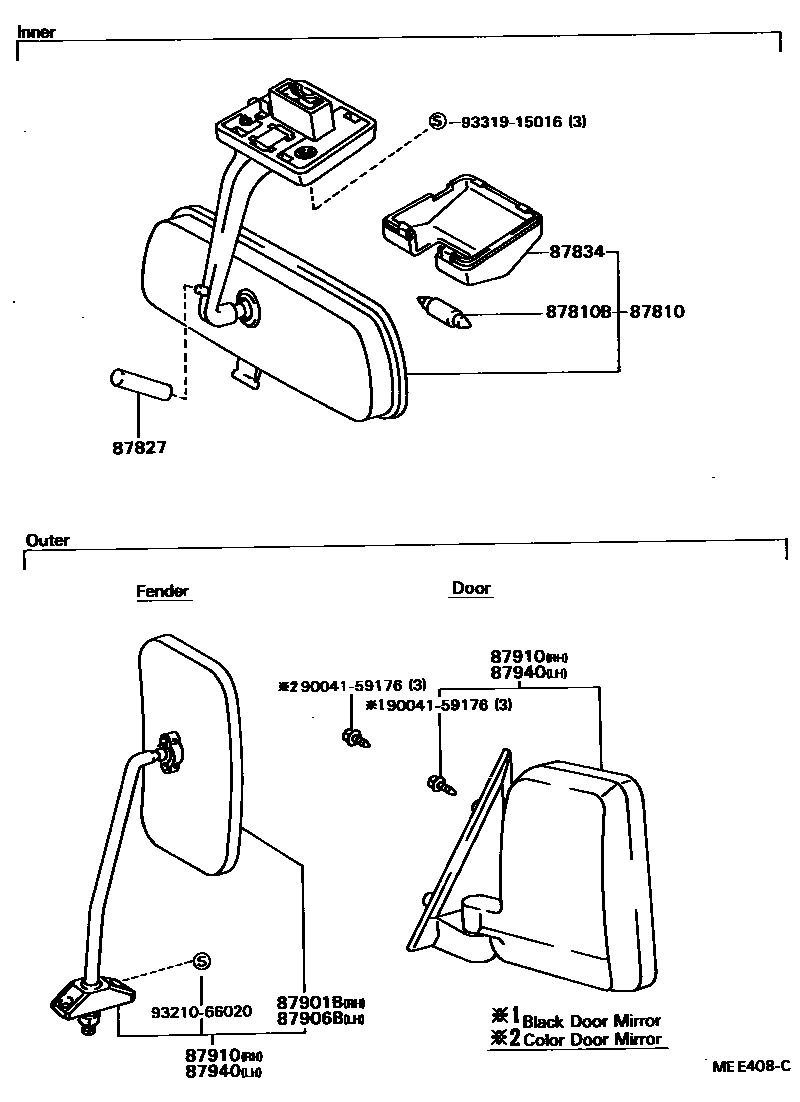

Toyota BLIZZARD — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
SHADOW GRAY,SHADOW GRAY
SHADOW GRAY,SHADOW GRAY
87810BBULB, INNER REAR VIEW MIRROR LAMP
87827ABSORBER, INNER REAR VIEW MIRROR
VAN
TOP
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
FENDER
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
FENDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
FENDER
DOOR,RED MICA,RED MICA,3H1
DOOR,SILVER-M,SILVER METALLIC,148
DOOR,NIGHT BLUE-M,NIGHT BLUE M,8B4
DOOR,WHITE,WHITE,045
DOOR,RED MICA,RED MICA,3H1 ,25L
DOOR,GRAY-M,GRAY METALLIC,168
DOOR,DARK BLUE-M,DARK BLUE MICA,8G4 ,26L
DOOR,RED MICA,RED MICA METALLIC,3H1 ,25L
DOOR,GRAY-M,GRAY METALLIC,168
DOOR,DARK BLUE-M,DARK BLUE METALLIC,8G4 ,26L
DOOR,WHITE,WHITE,045
DOOR
87940MIRROR ASSY, OUTER REAR VIEW, LH
FENDER
DOOR,RED MICA,RED MICA,3H1
DOOR,SILVER-M,SILVER METALLIC,148
DOOR,NIGHT BLUE-M,NIGHT BLUE M,8B4
DOOR,WHITE,WHITE,045
DOOR,RED MICA,RED MICA,3H1 ,25L
DOOR,GRAY-M,GRAY METALLIC,168
DOOR,DARK BLUE-M,DARK BLUE MICA,8G4 ,26L
DOOR,RED MICA,RED MICA METALLIC,3H1 ,25L
DOOR,GRAY-M,GRAY METALLIC,168
DOOR,DARK BLUE-M,DARK BLUE METALLIC,8G4 ,26L
DOOR,WHITE,WHITE,045
DOOR
9004159176
main90041-59176
9321066020
main93210-66020
9331915016
main93319-15016
11 parts on this diagram · 1 diagram in section
MIRROR for Toyota BLIZZARD
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota BLIZZARD. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
