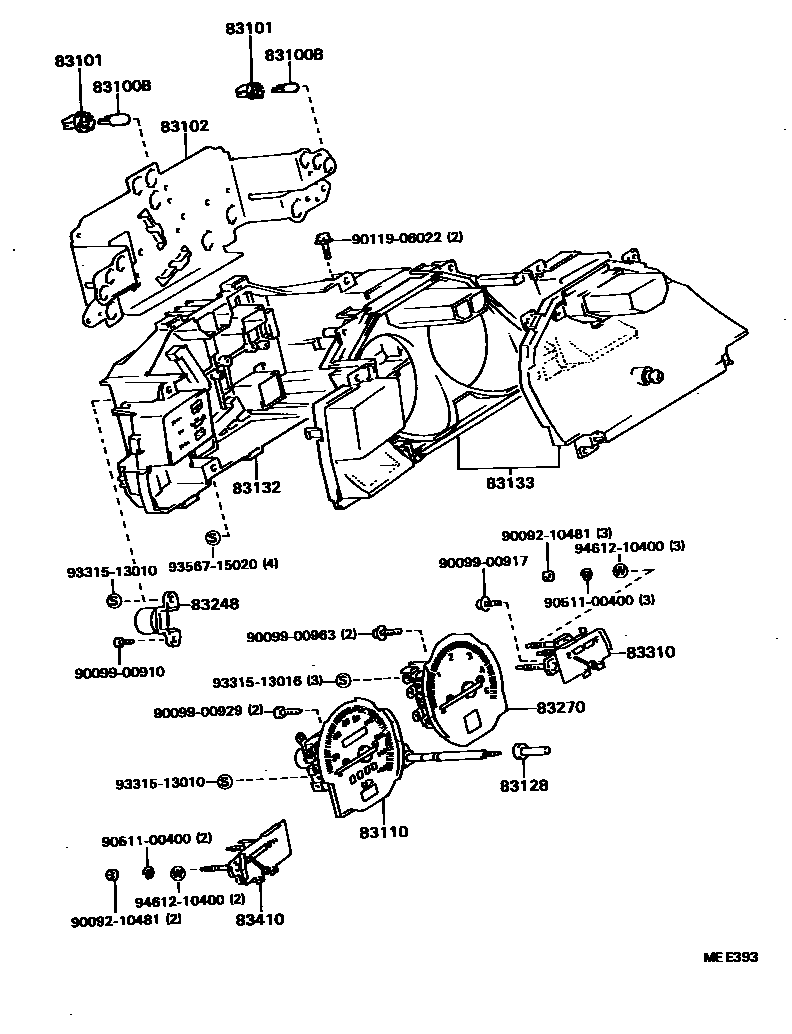

Toyota BLIZZARD — METER
83100BBULB, COMBINATION METER, NO.1
12V 3.4W,W/ORANGE CAP
12V 1.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 3.4W
12V 1.4W
12V 3.4W,BULB=83109-87203
12V 1.4W
12V 3.4W,BULB=99132-12034
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83248CHIME, SPEED WARNING
83270TACHOMETER ASSY, ENGINE
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
9009210481
main90092-10481
9009900910
main90099-00910
9009900917
main90099-00917
9009900929
main90099-00929
9009900963
main90099-00963
9011906022
main90119-06022
9051100400
main90511-00400
9331513010
main93315-13010
9331513016
main93315-13016
9356715020
main93567-15020
9461210400
main94612-10400
22 parts on this diagram · 2 diagrams in section
METER for Toyota BLIZZARD
This section contains 28 genuine Toyota parts for the METER system of the Toyota BLIZZARD. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, SPEEDOMETER ASSY, KNOB, TRIP COUNTER.
