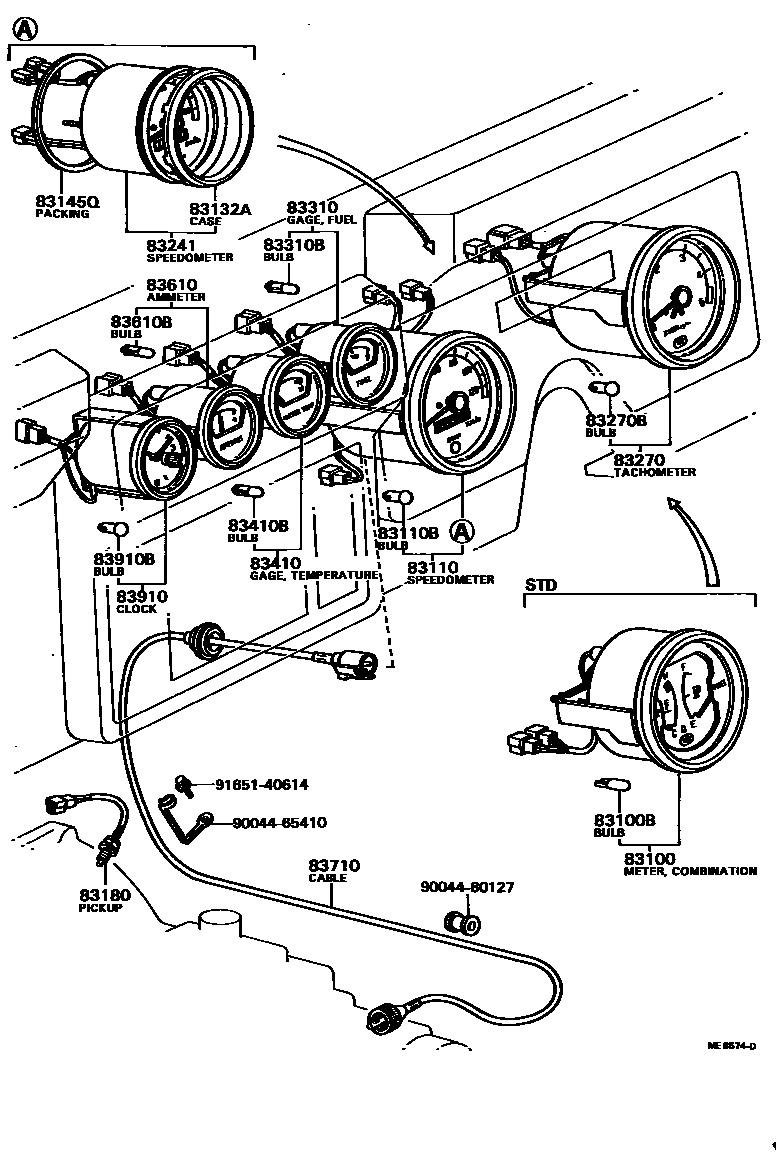

Toyota BLIZZARD — METER

0001 1 0002 1

83100METER ASSY, COMBINATION

main83100-87603iLD10..STD198003-198110

main83101-87605iLD10..STD198110-198404

83100BBULB, COMBINATION METER, NO.1

main99132-12034×2iLD10..STD198003-198404

83110SPEEDOMETER ASSY

main83110-87611iLD10198003-198110

83110BBULB, SPEEDOMETER

main99132-11034iLD10198003-198404

12V 3.4W

83132ACASE, METER

main83137-87601iLD10198003-198404

83145QPACKING, METER

main83145-87601iLD10198003-198404

83180DETECTOR ASSY, REVOLUTION

main83275-87602iLD10..DLX198003-198404

83241METER SUB-ASSY, SPEED

main83104-87612iLD10198003-198110

main83104-87619iLD10198110-198210

main83104-87626iLD10198210-198404

83270TACHOMETER ASSY, ENGINE

main83201-87605iLD10..DLX198110-198404

main83210-87603iLD10..DLX198003-198110

83270BBULB, ENGINE TACHOMETER

main99132-11034×2iLD10..DLX198003-198404

83310GAGE ASSY, FUEL RECEIVER

main83310-87601iLD10..DLX198003-198110

main83310-87602iLD10..DLX198110-198404

83310BBULB, FUEL RECEIVER GAGE

main90981-11009iLD10..DLX198003-198404

12V 1.5W

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83410-87603iLD10..DLX198003-198110

main83410-87605iLD10..DLX198110-198404

83410BBULB, WATER TEMPERATURE RECEIVER GAGE

main90981-11009iLD10..DLX198003-198404

12V 1.5W

83610AMMETER ASSY

main83610-87601iLD10..DLX198003-198404

83610BBULB, AMMETER

main90981-11009iLD10..DLX198003-198404

12V 1.5W

83710CABLE ASSY, SPEEDOMETER DRIVE, NO.1

main83710-87606iLD10198003-198110

main83710-87609iLD10198110-198210

main83710-87613iLD10..VPT198210-198404

83910CLOCK ASSY

main83910-87601iLD10..DLX198003-198110

83910BBULB, CLOCK INDICATOR

main99132-11034iLD10..DLX198003-198110

9004465410

main90044-65410

9004480127

main90044-80127

9165140614

main91651-40614

22 parts on this diagram · 2 diagrams in section
