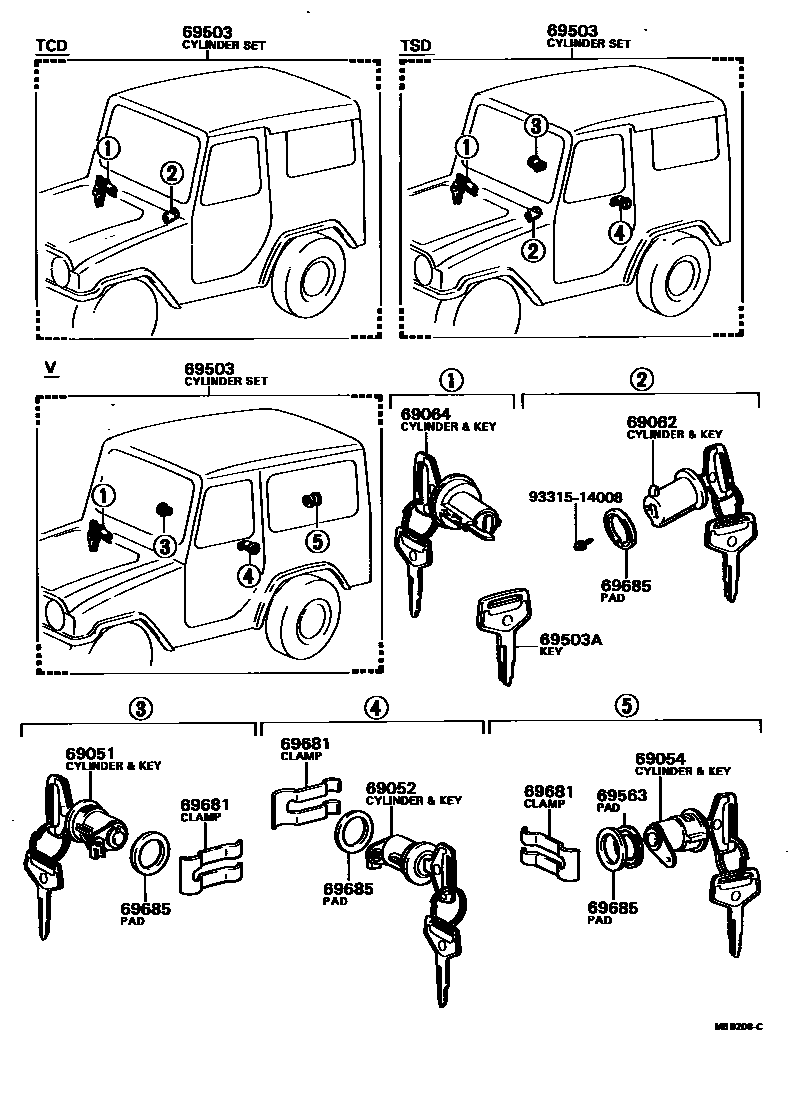

Toyota BLIZZARD — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-87603i198003-198110

main69051-87604i198110-198404

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-87601i198003-198110

main69052-87602i198110-198404

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69054-87602i198003-198110

main69054-87603i198110-198404

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69062-87605i198003-198110

main69062-87606i198110-198404

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69064-87607i198003-198110

main69064-87608i198110-198404

69503CYLINDER SET, LOCK

main69503-87648i198003-198110

main69503-87649i198003-198110

main69503-87650i198003-198110

main69503-87651i198110-198404

main69503-87652i198110-198404

main69503-87653i198110-198404

main69503-87654i198110-198404

69503AKEY, BLANK

main90999-00082i198003-198404

69563PAD, BACK DOOR LOCK CYLINDER

main69563-87601i198110-198404

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-87201×3i198003-198404

69685PAD, LOCK CYLINDER

main69685-87201×3i198003-198404

DOOR

main69685-87601i198003-198404

GROVE COMPARTMENT

9331514008

main93315-14008

11 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota BLIZZARD

This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota BLIZZARD. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK.
