Toyota BLIZZARD — INSTRUMENT PANEL & GLOVE COMPARTMENT

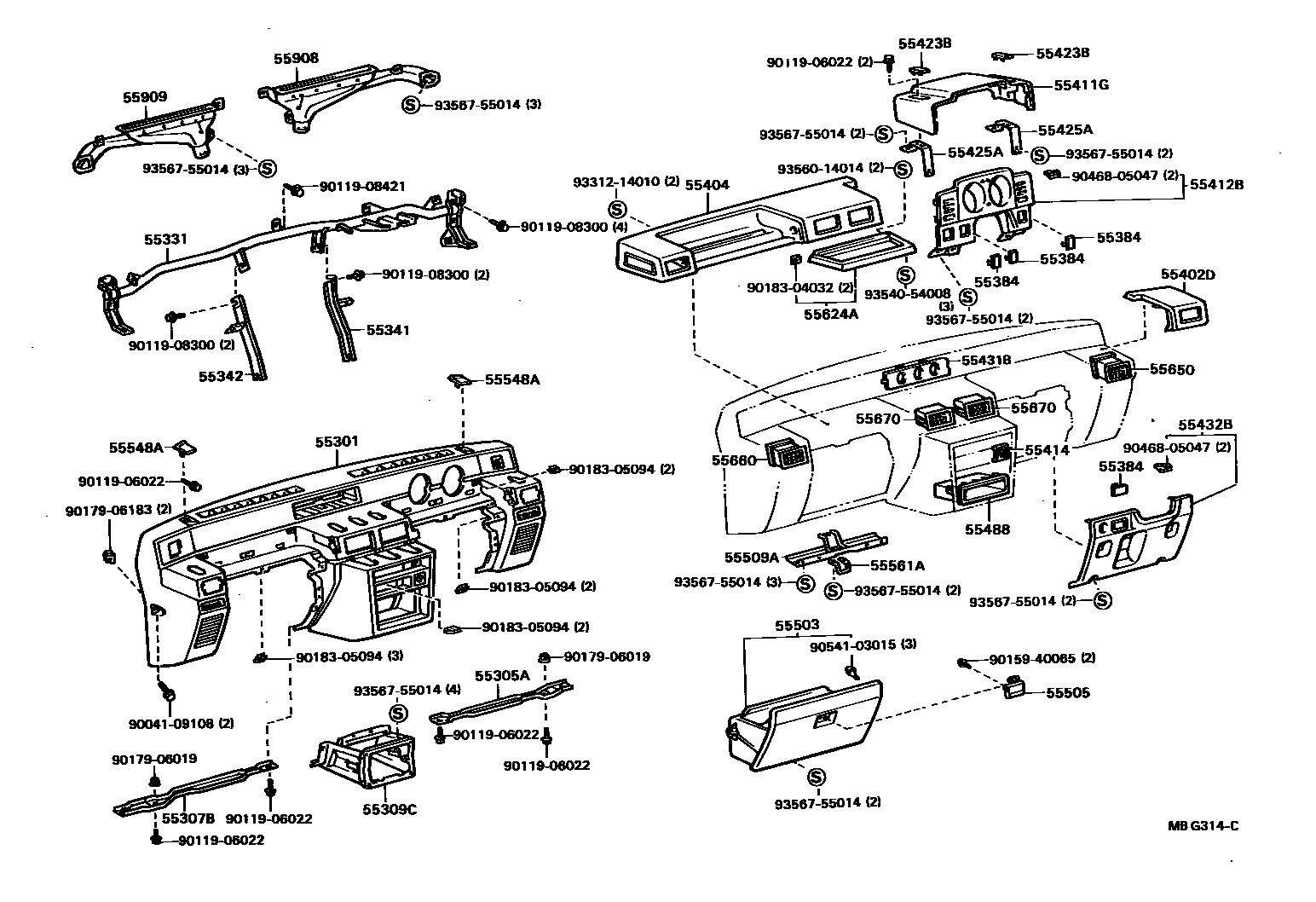

Parts diagram

55301PANEL SUB-ASSY, INSTRUMENT

main55311-87614i198405-198509

main55311-87619-03i198509-198810

SHADOW GRAY

main55311-87624-03i198810-199002

SHADOW GRAY

55305AREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, RH

main55305-87601i198405-199002

55307BREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LH

main55307-87601i198405-198810

main55307-87602i198810-199002

55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER

main55309-87601i198405-198706

main55309-87602i198706-198810

main55309-87609i198810-199002

55331REINFORCEMENT, INSTRUMENT PANEL

main55309-87603i198405-198505

main55309-87605i198505-198506

55341BRACE, INSTRUMENT PANEL, NO.1

main55037-87601i198405-199002

55342BRACE, INSTRUMENT PANEL, NO.2

main55038-87601i198405-199002

55384COVER, BASE SWITCH HOLE

main55384-87702×4i198405-199002

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

main55403-87601i198405-199002

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-87601i198405-199002

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-87603i198405-199002

55412BPANEL, INSTRUMENT CLUSTER FINISH, REAR

main55412-87607i198405-198509

main55412-87608i198509-198608

main55412-87609i198608-199002

55414BEZEL, CIGAR LIGHTER HOLE

main55477-87601i198405-198509

main55477-87602i198509-199002

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-87601×2i198405-199002

55425ABRACKET, METER HOOD SET

main55425-87601×2i198405-199002

55431BPANEL, INSTRUMENT PANEL FINISH, UPPER

main55431-87601i198405-199002

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-87601i198405-198509

main55432-87605-03i198509-198909

GRAY,SHADOW GRAY

main55432-87614-03i198909-199002

SHADOW GRAY,SHADOW GRAY

55488COVER, STEREO OPENING

main55521-87603i198405-198804

main55521-87604i198804-198810

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-87602i198405-199002

main55506-87603i198405-198911

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-87602i198405-198704

main55560-87602-03i198704-199002

SHADOW GRAY

55509ARETAINER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55509-87601i198405-198810

main55509-87602i198810-199002

55548ACOVER, INSTRUMENT PANEL HOLE

main55547-87601i198405-199002

RH

main55548-87601i198405-199002

LH

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-87601i198405-199002

55624ATRAY, INSTRUMENT PANEL, CENTER

main55624-87601i198405-199002

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-87601i198405-198810

main55650-87602i198810-199002

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-87601i198405-198810

main55650-87603i198810-199002

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-87601×2i198405-198810

main55670-87602×2i198810-199002

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55951-87601i198405-199002

55909NOZZLE SUB-ASSY, DEFROSTER, LH

main55952-87601i198405-199002

9004109108

main90041-09108

9011906022

main90119-06022

9011908300

main90119-08300

9011908421

main90119-08421

9015940065

main90159-40065

9017906019

main90179-06019

9017906183

main90179-06183

9018304032

main90183-04032

9018305094

main90183-05094

9046805047

main90468-05047

9054103015

main90541-03015

9331214010

main93312-14010

9354054008

main93540-54008

9356014014

main93560-14014

9356755014

main93567-55014

44 parts on this diagram · 2 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota BLIZZARD

This section contains 55 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota BLIZZARD. Key components include: PANEL SUB-ASSY, INSTRUMENT, REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, RH, REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LH, REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER, REINFORCEMENT, INSTRUMENT PANEL.
