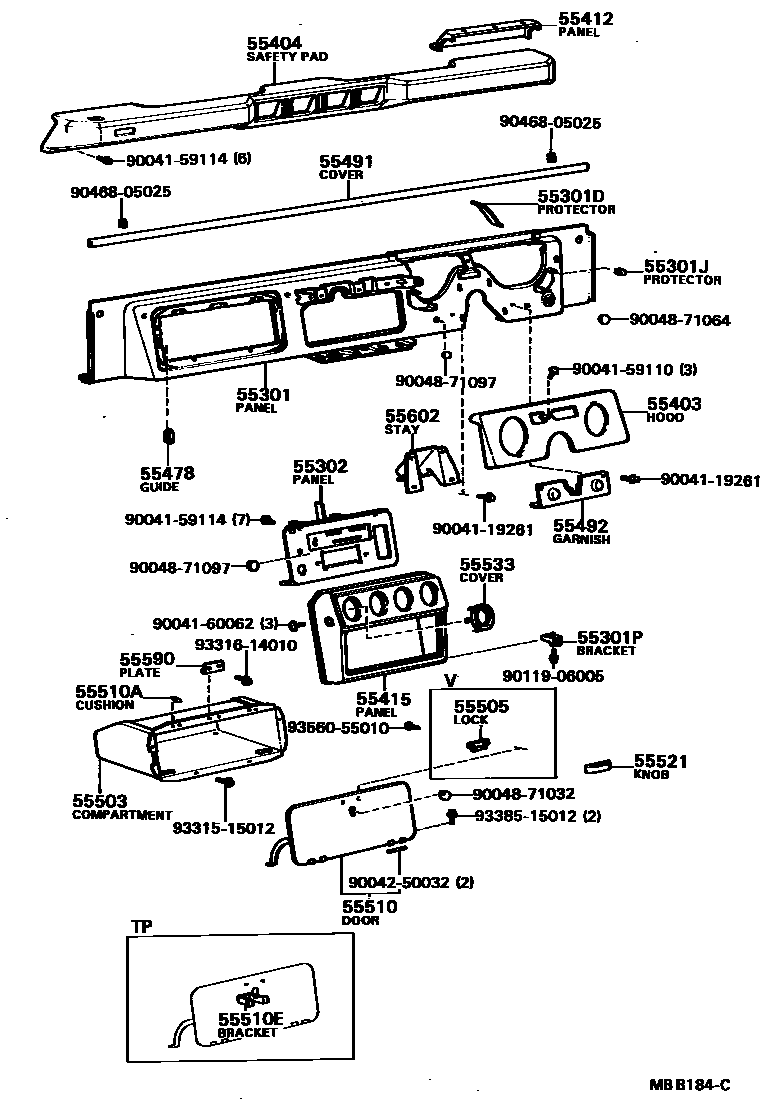

Toyota BLIZZARD — INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
55301DPROTECTOR, WIRE HARNESS
55301JPROTECTOR, METER PANEL
55301PBRACKET, WIPER SWITCH
55302PANEL SUB-ASSY, CENTER CONTROL
55403HOOD SUB-ASSY, METER
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55412PANEL, INSTRUMENT CLUSTER FINISH, END
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55478GUIDE, GLOVE COMPARTMENT DOOR CHECK ARM HOLE
55491COVER, INSTRUMENT PANEL, UPPER
55492GARNISH OR SAFETY PAD, LOWER, RH
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55510EBRACKET, LOCK CYLINDER
55521KNOB, GLOVE COMPARTMENT DOOR
55533COVER, AUTO CLOCK HOLE
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55602STAY SUB-ASSY, STEERING COLUMN, UPPER
9004119261
main90041-19261
9004159110
main90041-59110
9004159114
main90041-59114
9004160062
main90041-60062
9004250032
main90042-50032
9004871032
main90048-71032
9004871064
main90048-71064
9004871097
main90048-71097
9011906005
main90119-06005
9046805025
main90468-05025
9331515012
main93315-15012
9331614010
main93316-14010
9338515012
main93385-15012
9356055010
main93560-55010
35 parts on this diagram · 1 diagram in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota BLIZZARD
This section contains 35 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota BLIZZARD. Key components include: PANEL SUB-ASSY, INSTRUMENT, PROTECTOR, WIRE HARNESS, PROTECTOR, METER PANEL, BRACKET, WIPER SWITCH, PANEL SUB-ASSY, CENTER CONTROL.
