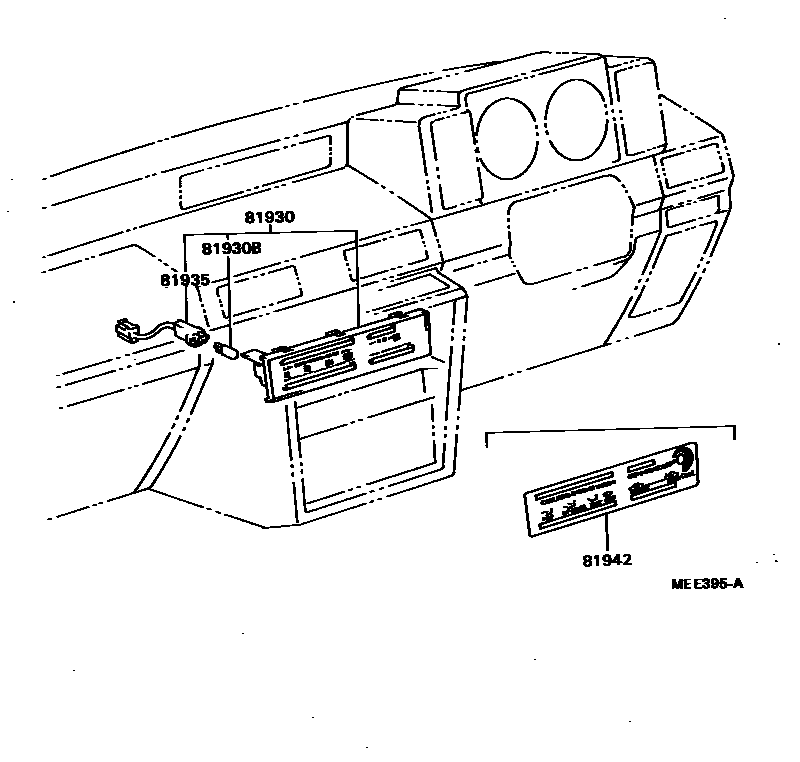

Toyota BLIZZARD — INDICATOR

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-87601iLD2#198405-198709

main81930-87609iLD2#198709-198810

main81930-87621iLD2#198810-199002

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90049-51036iLD2#198405-199002

81935SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP

main81935-87601iLD2#198405-199002

81942SHEET, HEATER CONTROL NAME

main55519-87601iLD2#198409-198709

W/COOLER

main55519-87605iLD2#198709-198810

W/COOLER

main55519-87609iLD2#198810-199002

W/COOLER

4 parts on this diagram · 1 diagram in section
